House Plan 1406 Brookhaven, Multi-Family House Plan
House Plan:NDG 1406
$2,250.00
/
Shipping calculated at checkout.
Or order by phone: (870) 931-5777
Floor Plans
Floor Plan #1
Description

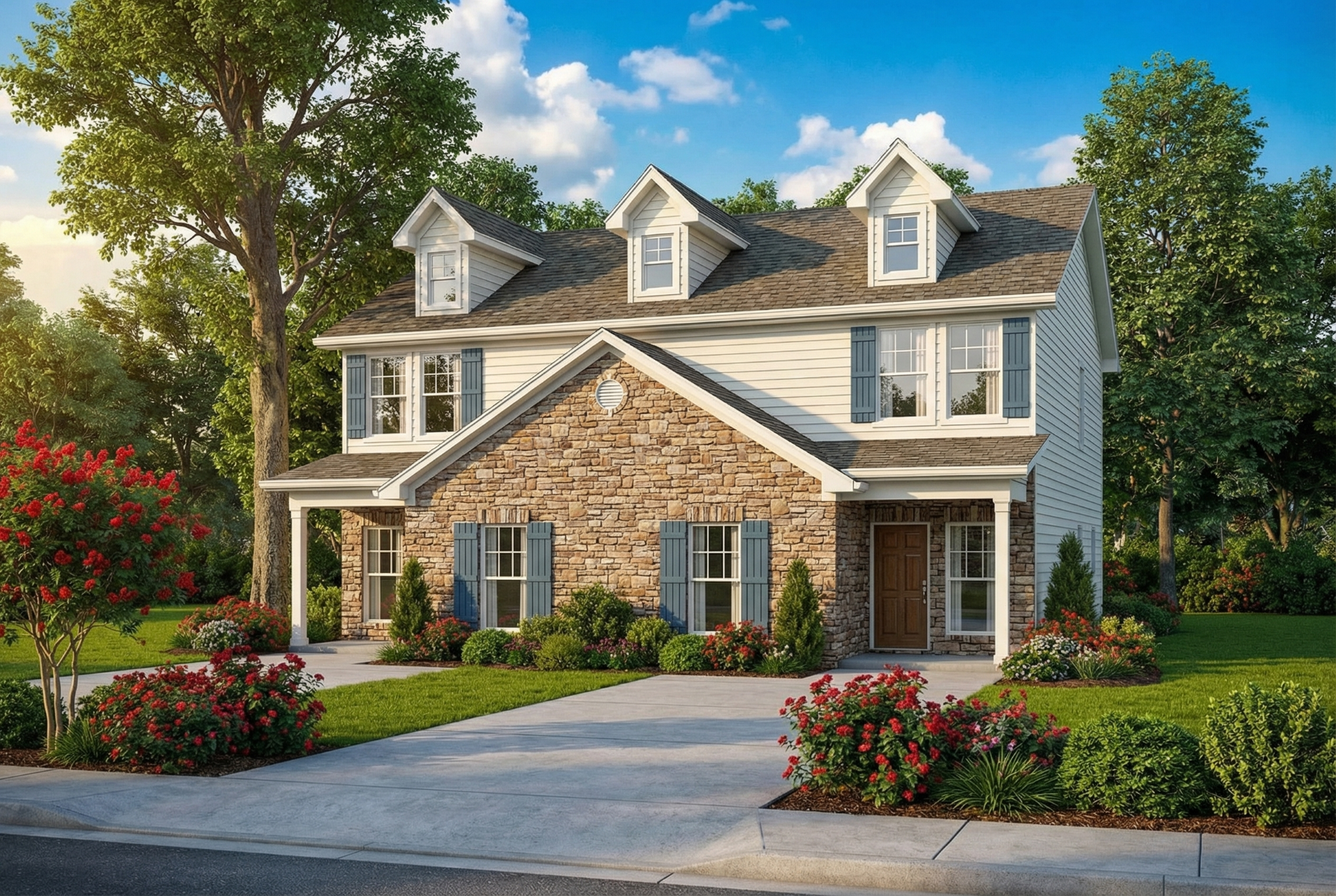

Discover Brookhaven Plan NDG 1406 — Efficient, Multifamily Layout for Smart Living
Brookhaven offers a practical, well‑designed duplex house plan that packs comfort, flexibility, and efficient use of space into a compact footprint. Whether you’re building for a small family, shared living, or rental use, this plan balances privacy, functionality, and affordability — all without sacrificing thoughtful layout or modern conveniences.
Picture walking into a welcoming living area that flows into the dining and kitchen zones, then ascending to private sleeping quarters — a home designed for both shared life and personal space. Brookhaven delivers comfort, efficiency, and smart design for today’s lifestyles.
Key Features of Brookhaven Plan NDG 1406
- Each unit offers approximately 1,500 square feet of living space — efficient yet roomy enough for comfort.
- Three bedrooms and two full bathrooms plus one half bath per unit — providing flexibility for families, roommates, or guests.
- Two‑story layout — main living on the ground floor, bedrooms upstairs for privacy and separation of space.
- Open floor plan on main level — living room flows to dining room and kitchen for a connected, social living space.
- Kitchen features a pantry, eat‑at bar, and ample cabinet space — ideal for modern cooking and casual meals.
- Master suite located at the back of the home — offering privacy and a quiet retreat away from main living areas.
- Two additional bedrooms upstairs sharing a “Jack and Jill” style bath — practical design for children, roommates, or guests.
- Compact footprint (approx. 42 ft wide × 53 ft deep) — suitable for narrower lots or infill properties while still providing full‑size living.
- Covered front porch and option for decks/patios — adds outdoor living appeal and enhances the home’s entry and exterior presence.
- Designed as a duplex (multifamily) plan — ideal for rental investment, extended‑family living, or dual‑household use while keeping lifestyles separate
Entire duplex main floor H/C Sq.Ft is 1,918 Entire duplex upper floor H/C Sq.Ft is 1,082 Porch total Sq.Ft is 104 Total SQ.FT is 3,104
Home Specifications
- Total Living Space: 1500
- Ridge Height (Ft.) 28
- Main Floor (Sq. Ft.): 959 Sq.Ft
- Ridge Height (In.) 4
- Upper Floor (Sq. Ft.): 541 Sq.Ft.
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 52 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): N/A
- Garage: No
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:N/A N/A
- Bedrooms: 3
- Carport: N/A
- Full Baths: 2
- Roof Pitch: 7:12
- Half Baths: 1
- Porch Roof Pitch: 3:12
- Stories: 2.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 53
- Width (Ft): 42
- Depth (In.) 3
- Width (In.) 4
- Total Sq. Ft. 1552 Sq.Ft.
- Customizable: Yes
Key Features
- Covered Front Porch
- Decks Patios Balconies
- Formal Dining Room
- Jack & Jill Bathroom
- Main Floor Master
- Narrow Lot House Plans
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in Closet
