Floor Plans
Floor Plan #1
Description
Satisfy your personal needs with this home. Entering the home, you’ll find French doors that lead you to the private study. Entertaining is easy in your spacious dining and great rooms surrounded by marvelous columns and atrium doors that access the extensive rear grilling porch from the great room. Your convenient computer center allows for both privacy and monitoring of the children. Al of the bedrooms are located on the upper floor, often providing the advantage of keeping an eye on the children.
Home Specifications
- Total Living Space: 3278
- Ridge Height (Ft.) 34

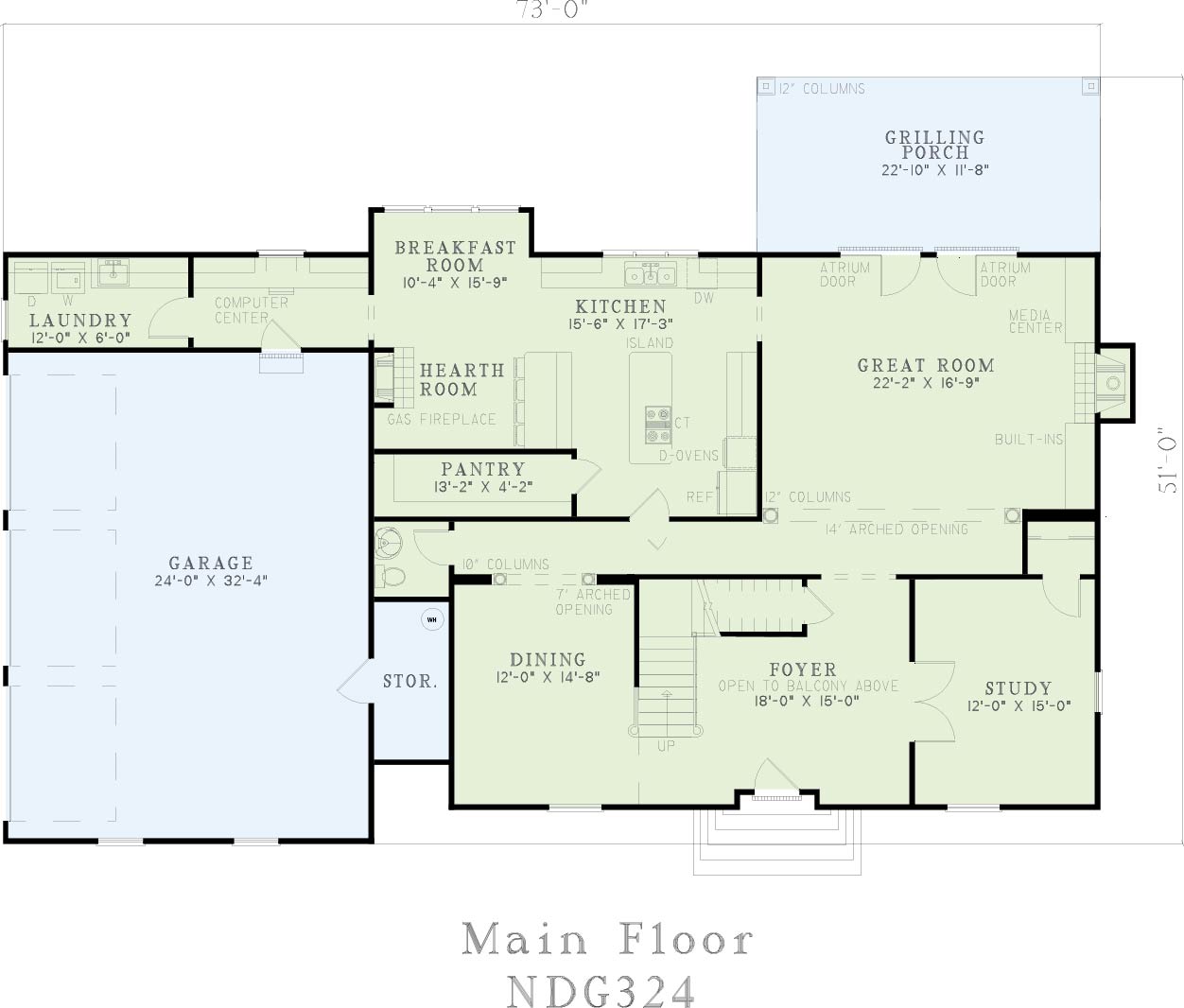

- Main Floor (Sq. Ft.): 1921 Sq.Ft
- Ridge Height (In.) 8

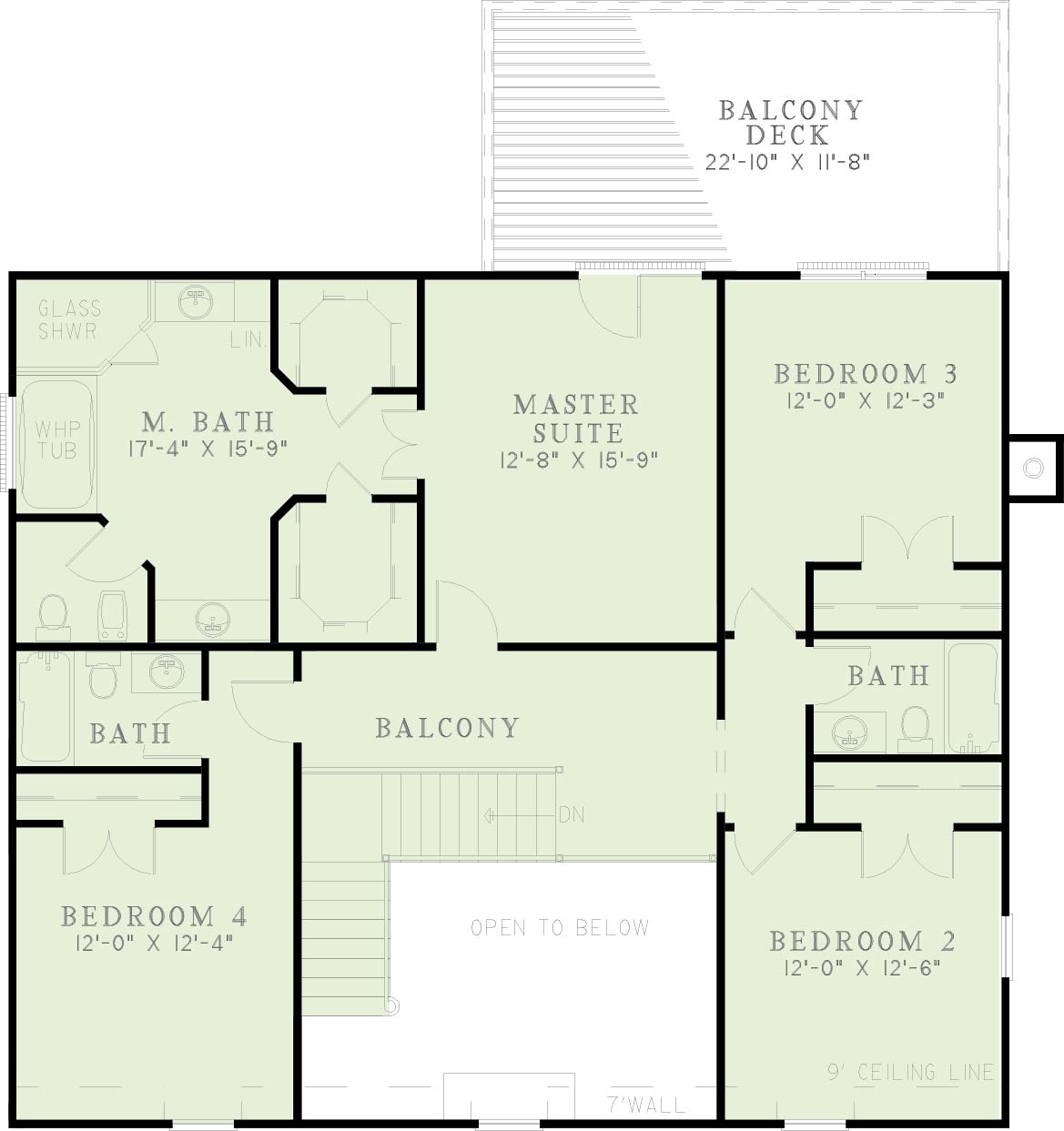

- Upper Floor (Sq. Ft.): 1357 Sq.Ft.
- Main Ceiling Height: 10
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 9
- Porch (Sq. Ft.): 78 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 776 Sq.Ft.
- Garage: 3 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Side Load Side Load
- Bedrooms: 4
- Carport: N/A
- Full Baths: 3
- Roof Pitch: 10:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 2.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 51
- Width (Ft): 73
- Depth (In.) N/A
- Width (In.) N/A
- Total Sq. Ft. 4132 Sq.Ft.
- Customizable: Yes
Key Features
- Balcony
- Covered Rear Porch
- Decks Patios Balconies
- Formal Dining Room
- Great Room
- Grilling Porch
- Home Office/Study
- Kitchen Island
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Walk-in Closet
- Walk-in-Pantry
