Floor Plans
Floor Plan #1
Description
Elegant House Plans — House Plan NDG 177 “Walnut Lane”
If you’re exploring house plans that balance classic farmhouse charm and efficient modern living, House Plan NDG 177 “Walnut Lane” is a standout option. Designed with 1,841 sq. ft. of living space across two stories, this design features 3 bedrooms, 2 full baths, and 1 half bath—all thoughtfully arranged to maximize comfort and flexibility.
Key Features That Make It Shine
- Inviting curb appeal: A welcoming covered front porch sets the tone for warm, farmhouse-inspired style.

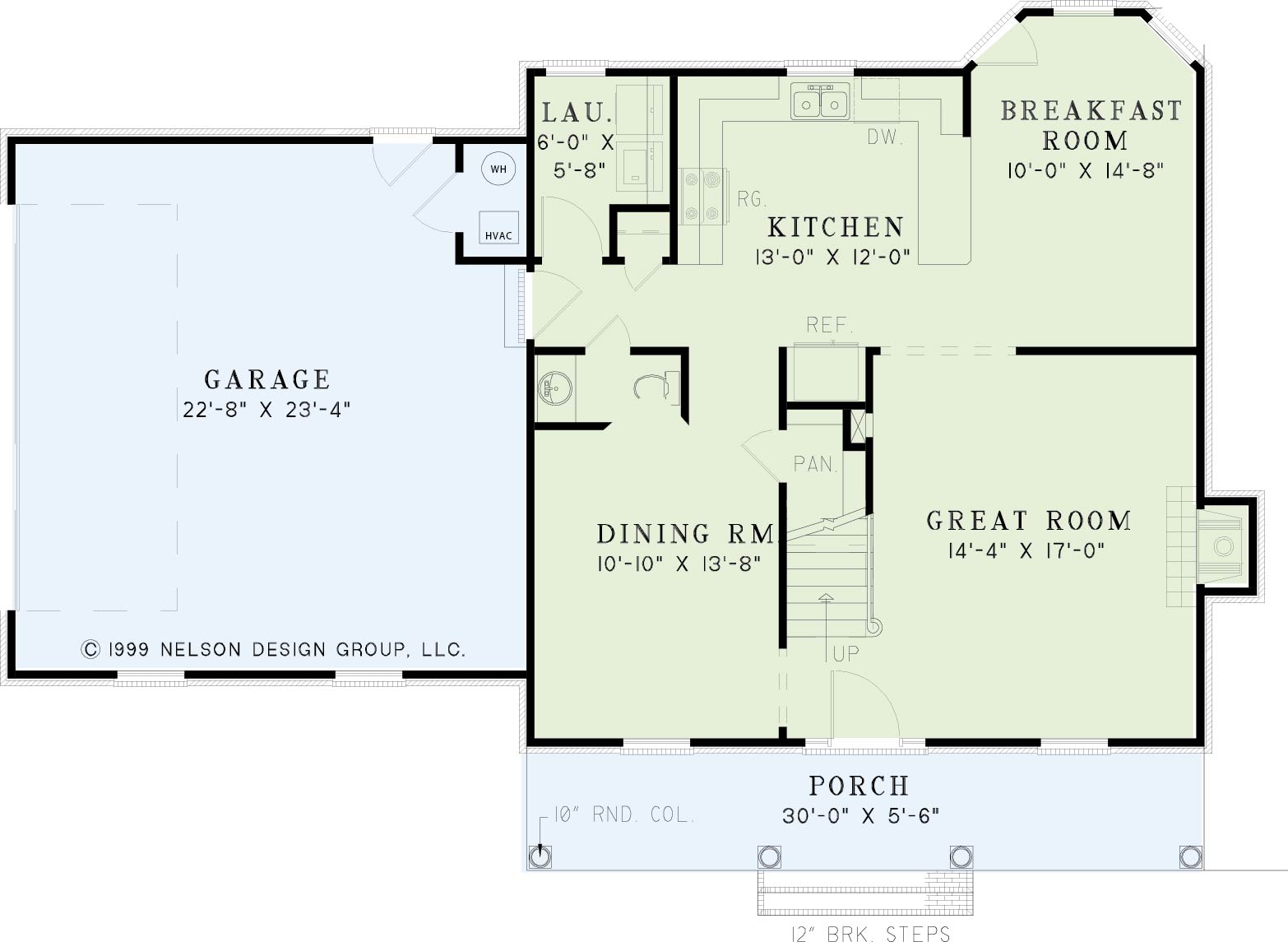

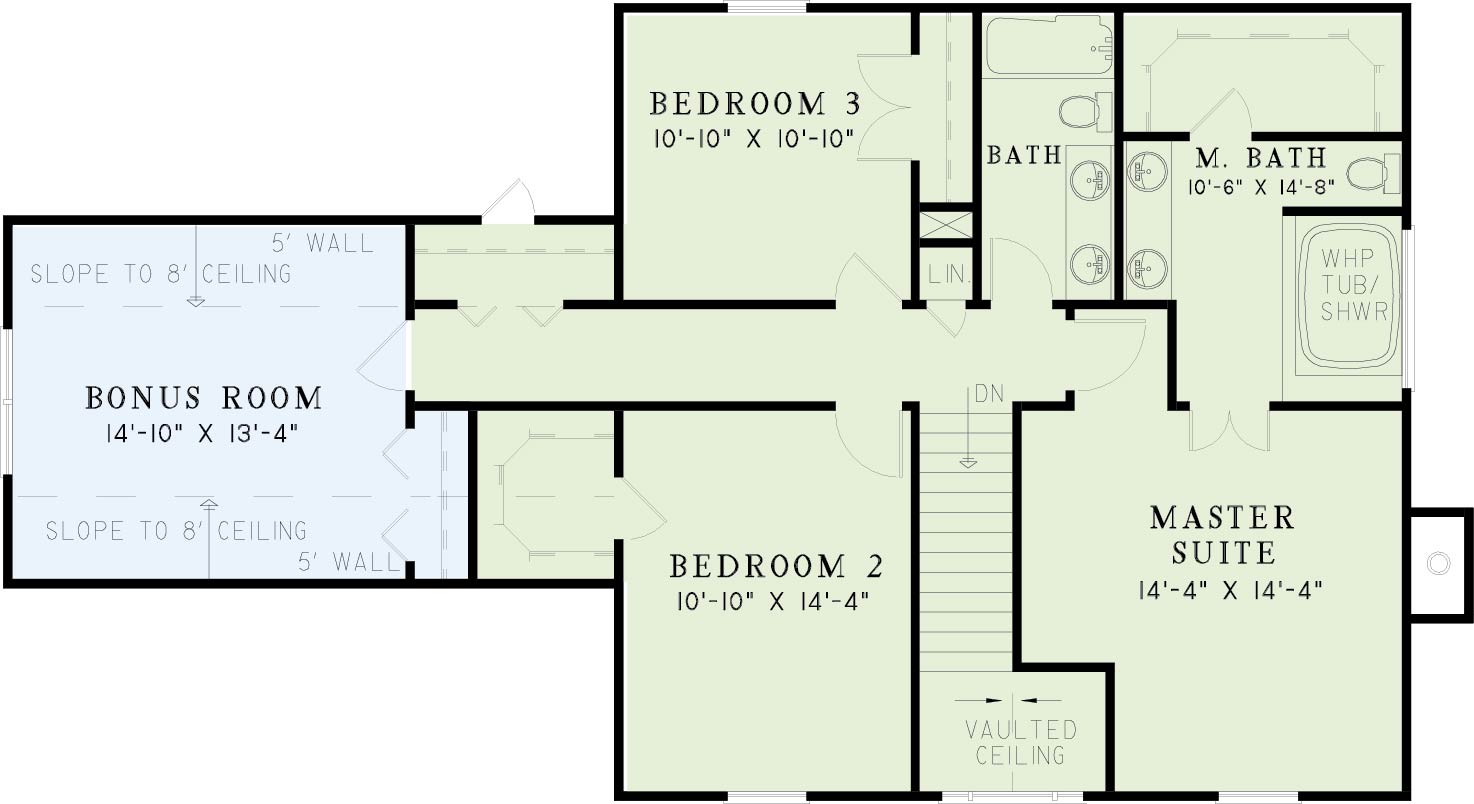

- Comfortable, well‑zoned design: The main floor includes a generous great room warmed by a fireplace, a bar area in the kitchen for entertaining, and a breakfast nook. The master suite is located upstairs near the children’s bedrooms for family convenience.
- Flexible bonus space: A bonus area above the garage provides room for a future game room, hobby area, or additional storage.
Home Specifications
- Total Living Space: 1841
- Ridge Height (Ft.) 26
- Main Floor (Sq. Ft.): 921 Sq.Ft
- Ridge Height (In.) 9
- Upper Floor (Sq. Ft.): 920 Sq.Ft.
- Main Ceiling Height: 8
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 163 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 552 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): 233 Sq.Ft.
- Garage/Carport Type:Side Load Side Load
- Bedrooms: 3
- Carport: No
- Full Baths: 2
- Roof Pitch: 8:12
- Half Baths: 1
- Porch Roof Pitch: 3:12
- Stories: 2.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: Yes
- Depth (Ft): 38
- Width (Ft): 55
- Depth (In.) 2
- Width (In.) 4
- Total Sq. Ft. 2556 Sq.Ft.
- Customizable: Yes
Key Features
- Bonus Room Over Garage
- Covered Front Porch
- Formal Dining Room
- Great Room
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Walk-in Closet
- Walk-in-Pantry
