House Plan 5248 Stone Gables, European House Plan
House Plan:MEN 5248
$1,350.00
/
Shipping calculated at checkout.
Or order by phone: (870) 931-5777
Floor Plans

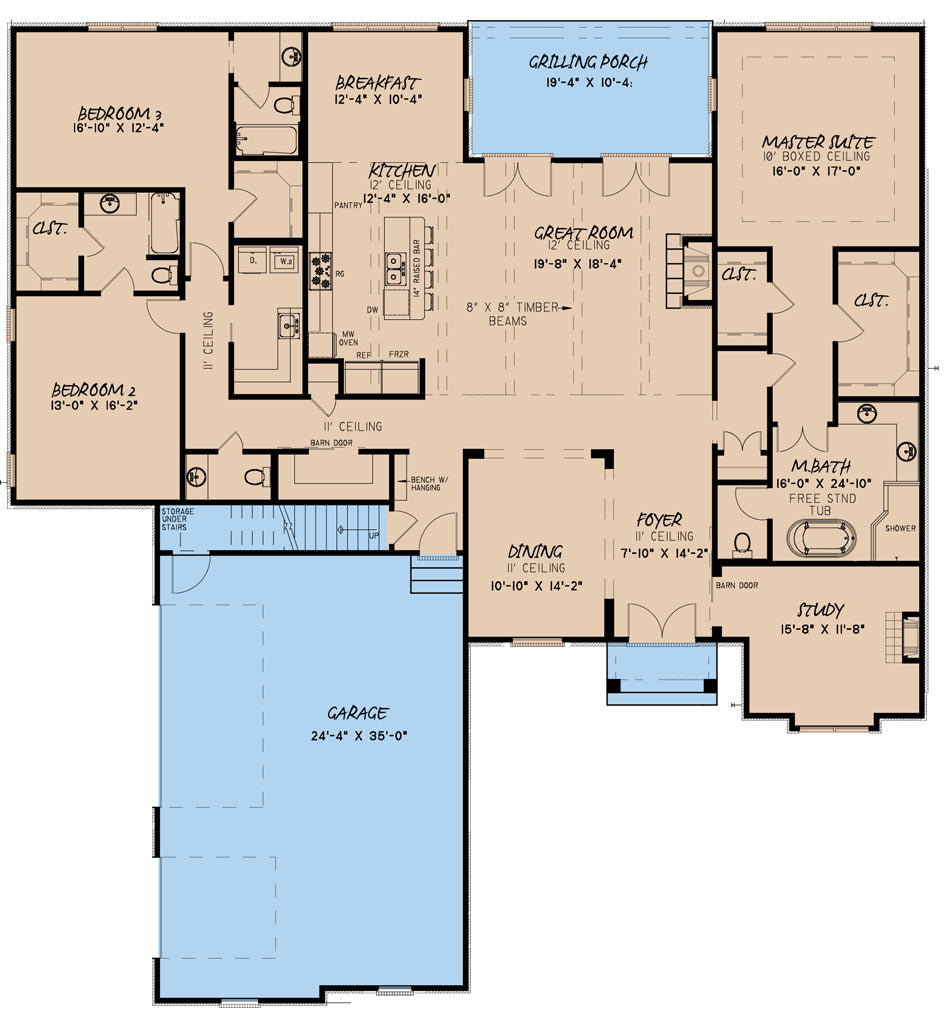

Floor Plan #1
Description
House Plans That Blend Old‑World Elegance with Rustic Warmth — Stone Gables
If you're looking for house plans that combine European architectural elegance with rustic Craftsman touches, House Plan MEN 5248 – Stone Gables delivers in style and functionality. With over 3,000 square feet of main-level living, this design offers expansive comfort without sacrificing charm—perfect for families who want both sophistication and cozy character.
Key Features of House Plan MEN 5248 – Stone Gables
- Total Living Space: 3,054 square feet on the main floor.
- Bedrooms & Baths: 3 bedrooms, 3 full bathrooms, plus 1 half bath.
- Garage: A 3‑bay side‑load garage for ease of access and clean curb appeal.

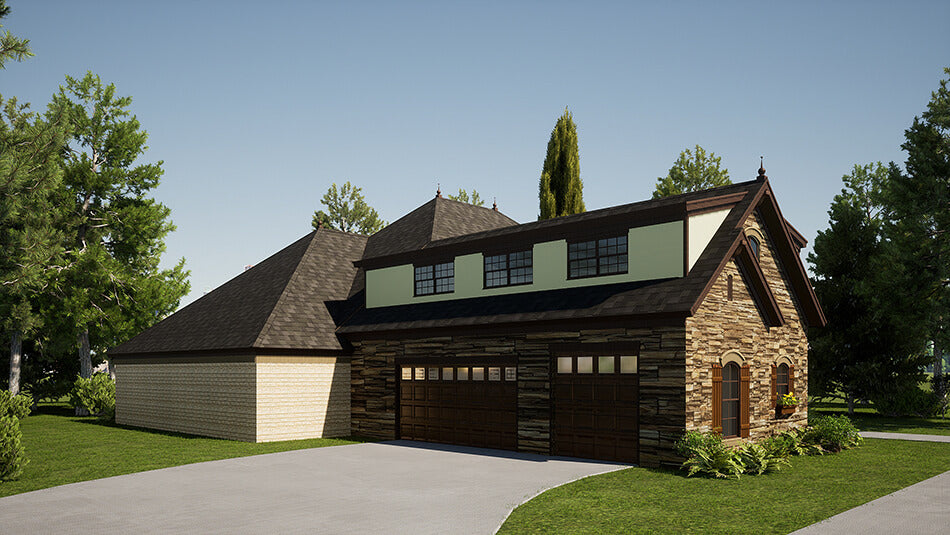

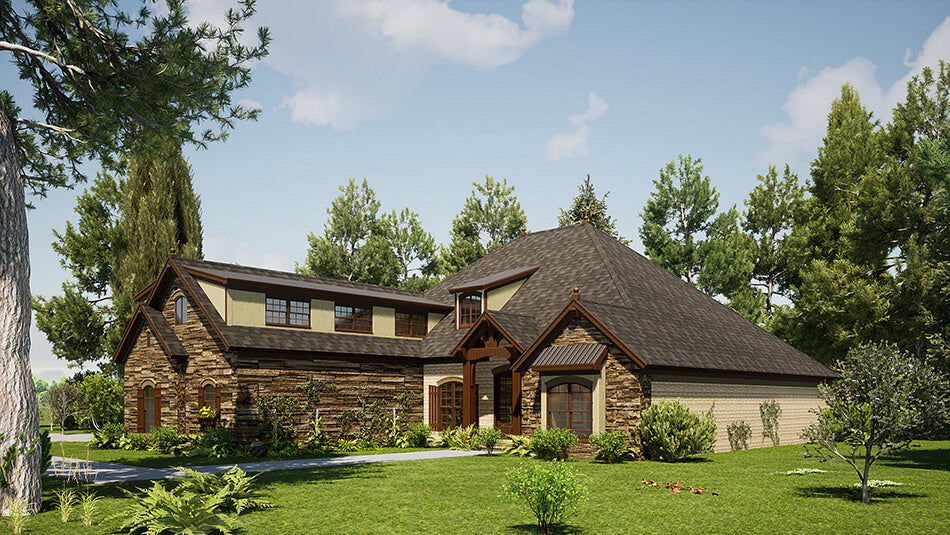

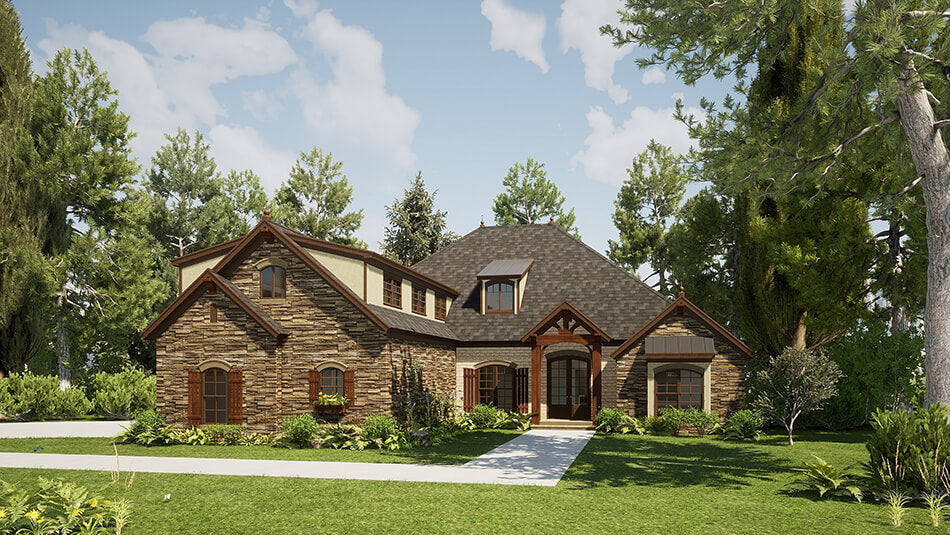

- Exterior Styling: A mix of stone, brick, and wood timbers combined with Craftsman‑inspired rustic detailing gives the exterior texture and warmth.
- Open Entry & Great Room: Covered entry with double‑arched French doors leads into a foyer opening into the Great Room. The Great Room features 12‑foot ceilings trimmed by large timber beams and connects to a grilling porch via double doors.
- Kitchen & Dining: A kitchen with a raised island seating four, an extended walk‑in pantry, and a cozy breakfast nook with large windows for morning light. The Dining Room has broad but defined doorways to offer privacy without cutting off flow.
- Master Suite Retreat: Secluded wing from the foyer, with dual walk‑in closets, a boxed ceiling in the bedroom, dual sinks, separate shower and free‑standing tub, and a private toilet room for comfort.
- Split Bedroom Design: Bedrooms 2 and 3 are placed on the opposite side of the house in a split layout, each with private bath access and walk‑in closets. A laundry room and powder room are also situated in this zone for convenience.

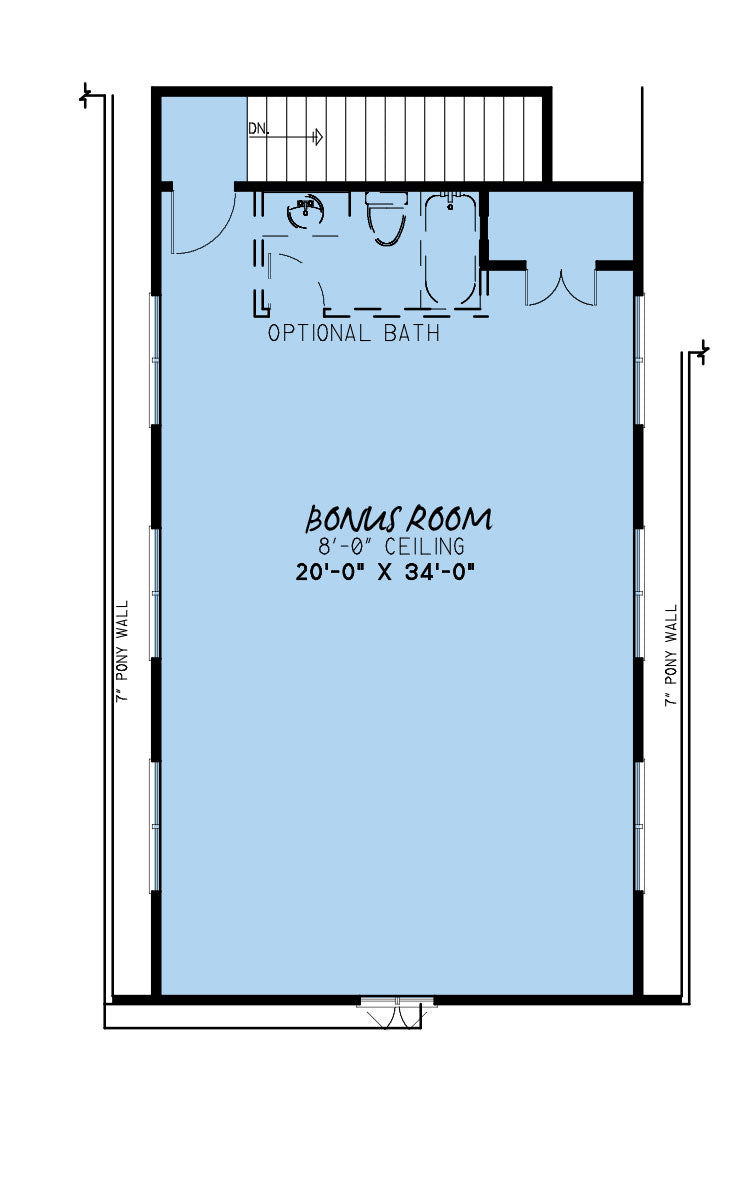

- Bonus Room Over Garage: Upstairs bonus space adds versatile square footage with natural light and optional full bath—ideal for media, hobbies, or guest overflow.

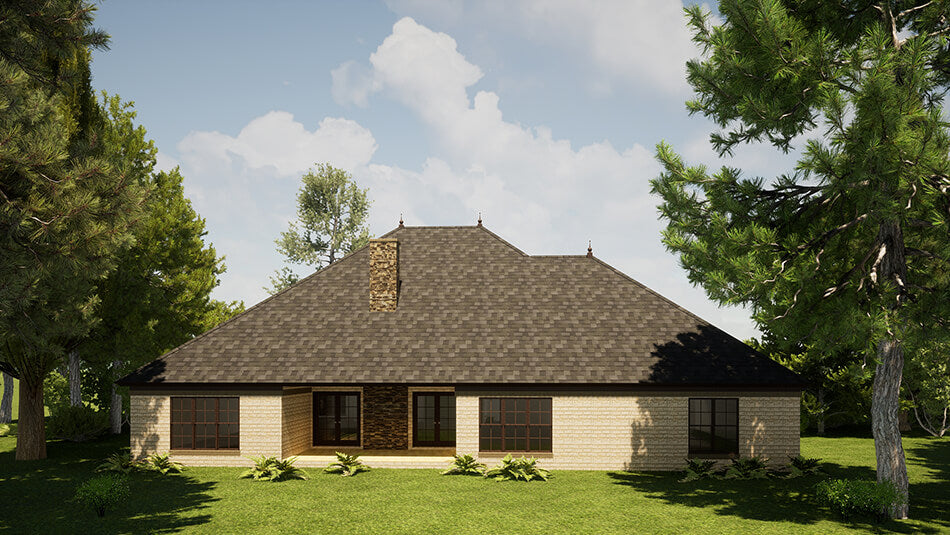

- Outdoor Living: Covered front and rear porches allow for year‑round enjoyment of fresh air. Grilling porch extends living outdoors.
Home Specifications
- Total Living Space: 3054
- Ridge Height (Ft.) 31
- Main Floor (Sq. Ft.): 3054 Sq.Ft
- Ridge Height (In.) 2
- Upper Floor (Sq. Ft.): N/A
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 234 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 899 Sq.Ft.
- Garage: 3 Bay Yes
- Bonus (Sq.Ft): 716 Sq.Ft.
- Garage/Carport Type:Front Load Front Load
- Bedrooms: 3
- Carport: N/A
- Full Baths: 3
- Roof Pitch: 10:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 1.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 77
- Width (Ft): 72
- Depth (In.) N/A
- Width (In.) N/A
- Total Sq. Ft. 4903 Sq.Ft.
- Customizable: Yes
Key Features
- Bonus Room Over Garage
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Grilling Porch
- Home Office/Study
- Kitchen Island
- Main Floor Master
- Mudroom
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in Closet
Plan Collections
- Michael E. Nelson House Plans Collection
Plan Styles
- Craftsman House Plans
- European House Plans
- French Country House Plans
- Rustic House Plans
