House Plan 180 Olive Street, Farmhouse House Plan
House Plan:NDG 180
$1,000.00
/
Shipping calculated at checkout.
Or order by phone: (870) 931-5777
Floor Plans

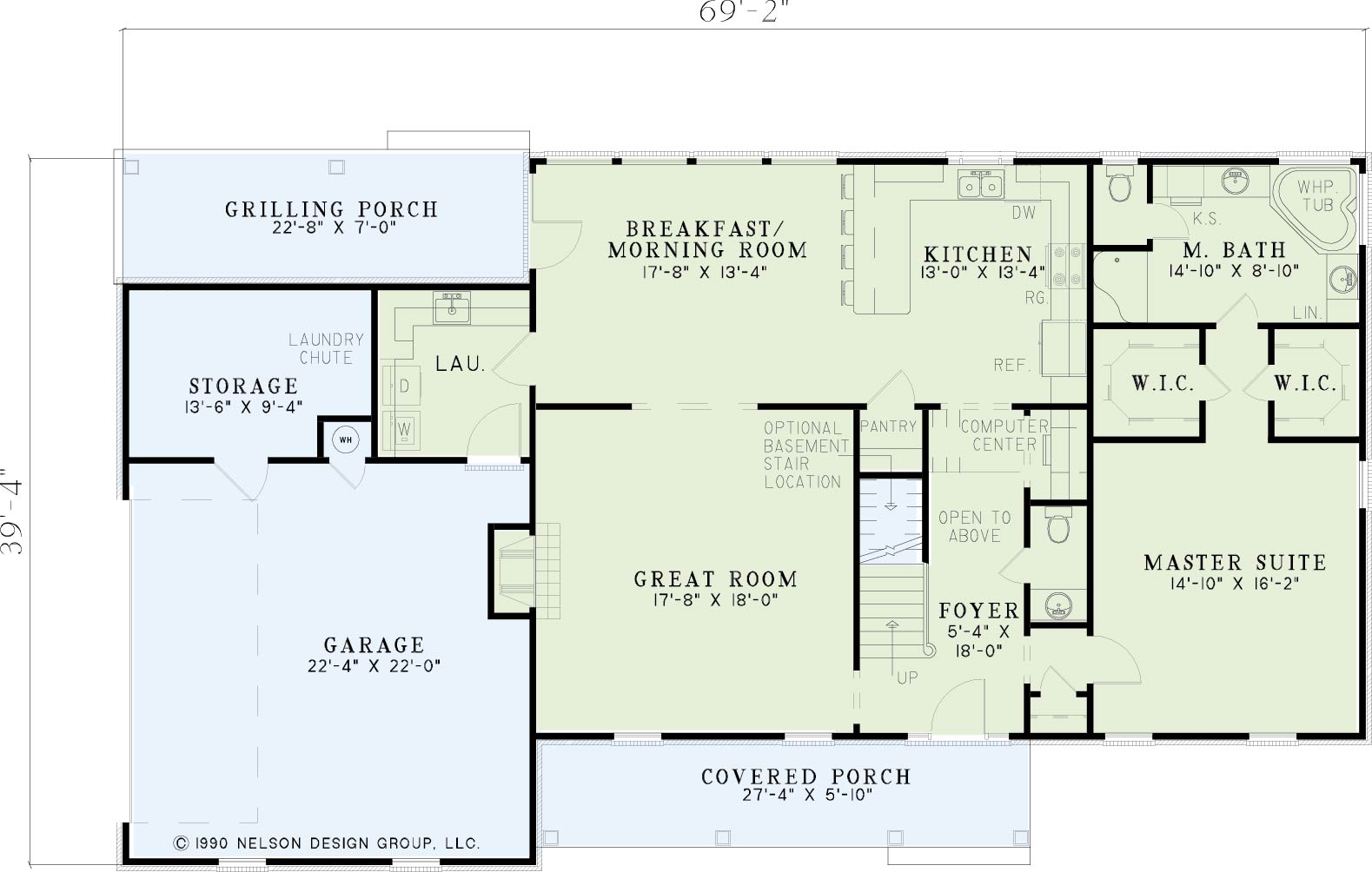

Floor Plan #1
Description
Beautiful House Plans — House Plan NDG 180 “Olive Street”
If you’re exploring house plans that combine farmhouse charm, elegant detailing, and functional living, House Plan NDG 180 “Olive Street” stands out as a compelling option. This 1.5‑story design provides 2,320 sq ft of living space, with 3 bedrooms, 2 full baths, and 1 half bath, plus an upstairs bonus area — perfect for family, entertaining, or future growth.
Why It’s a Top Choice Among House Plans
- Warm, welcoming design: A covered front porch and rear porch provide charming entry points and outdoor living space, enhancing curb appeal and comfort.
- Open, flexible layout: The oversized kitchen flows into a breakfast room and connects to a side grilling porch — ideal for casual meals with a view of the backyard.
- Main-floor master suite: Tucked off the hall, the master retreat features privacy and convenience, with direct access from core living areas.

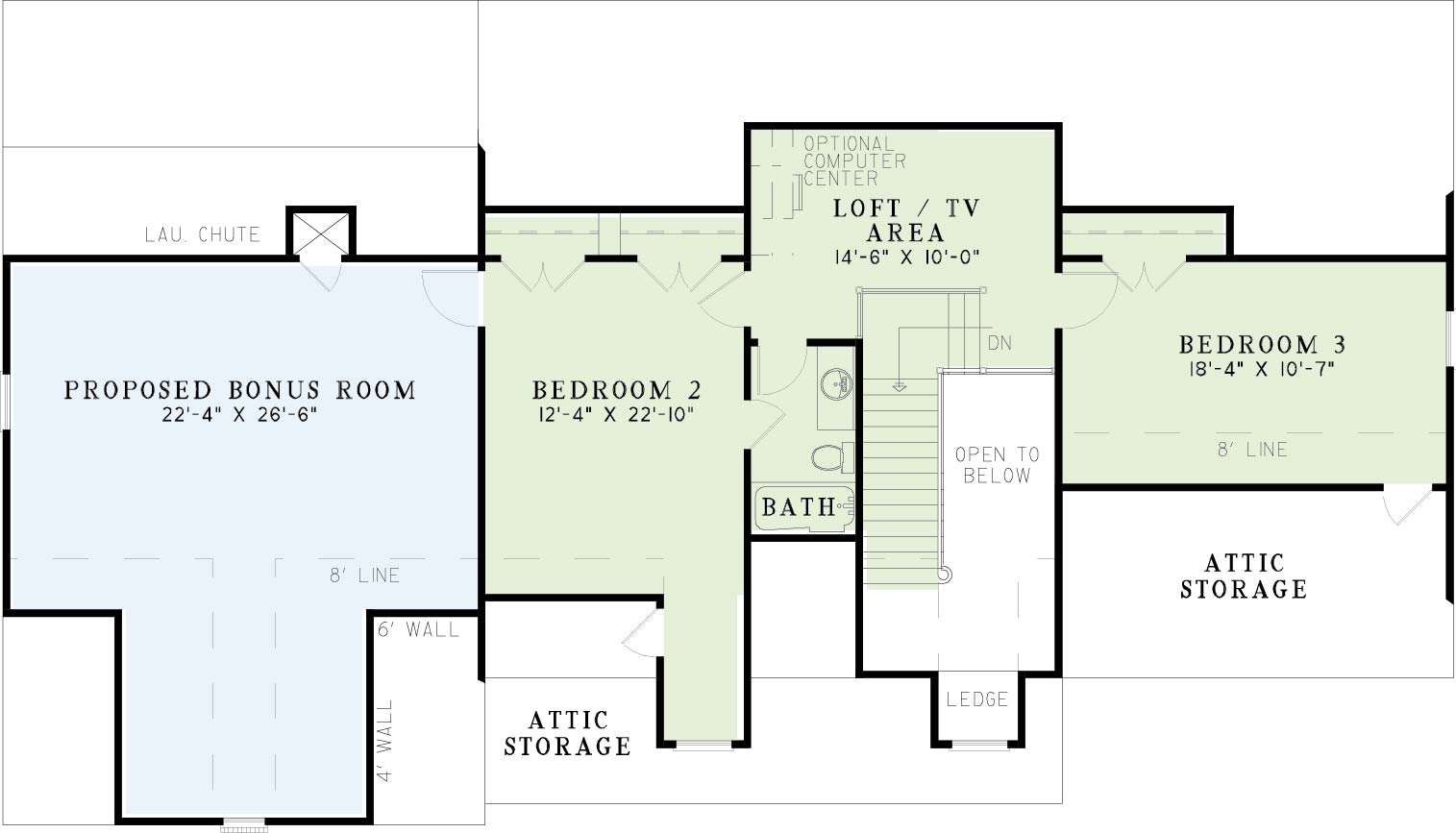

- Bonus upstairs space: Above, a large bonus room, full bathroom, two spacious bedrooms, and loft areas offer flexibility for guests, recreation, or multi‑purpose living.
- Smart detailing & comfort: The plan includes features such as a computer center off the kitchen hallway, walk‑in pantry, open great room design, and split bedroom layout to separate private and communal zones.
Home Specifications
- Total Living Space: 2320
- Ridge Height (Ft.) 25
- Main Floor (Sq. Ft.): 1591 Sq.Ft
- Ridge Height (In.) 7
- Upper Floor (Sq. Ft.): 729 Sq.Ft.
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 323 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 647 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): 510 Sq.Ft.
- Garage/Carport Type:Side Load Side Load
- Bedrooms: 3
- Carport: No
- Full Baths: 2
- Roof Pitch: 10:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 1.5
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 39
- Width (Ft): 69
- Depth (In.) 4
- Width (In.) 2
- Total Sq. Ft. 3800 Sq.Ft.
- Customizable: Yes
Key Features
- Bonus Room Over Garage
- Covered Front Porch
- Covered Rear Porch
- Great Room
- Grilling Porch
- Loft
- Main Floor Master
- No Formal Dining
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in Closet
- Walk-in-Pantry
