Floor Plans

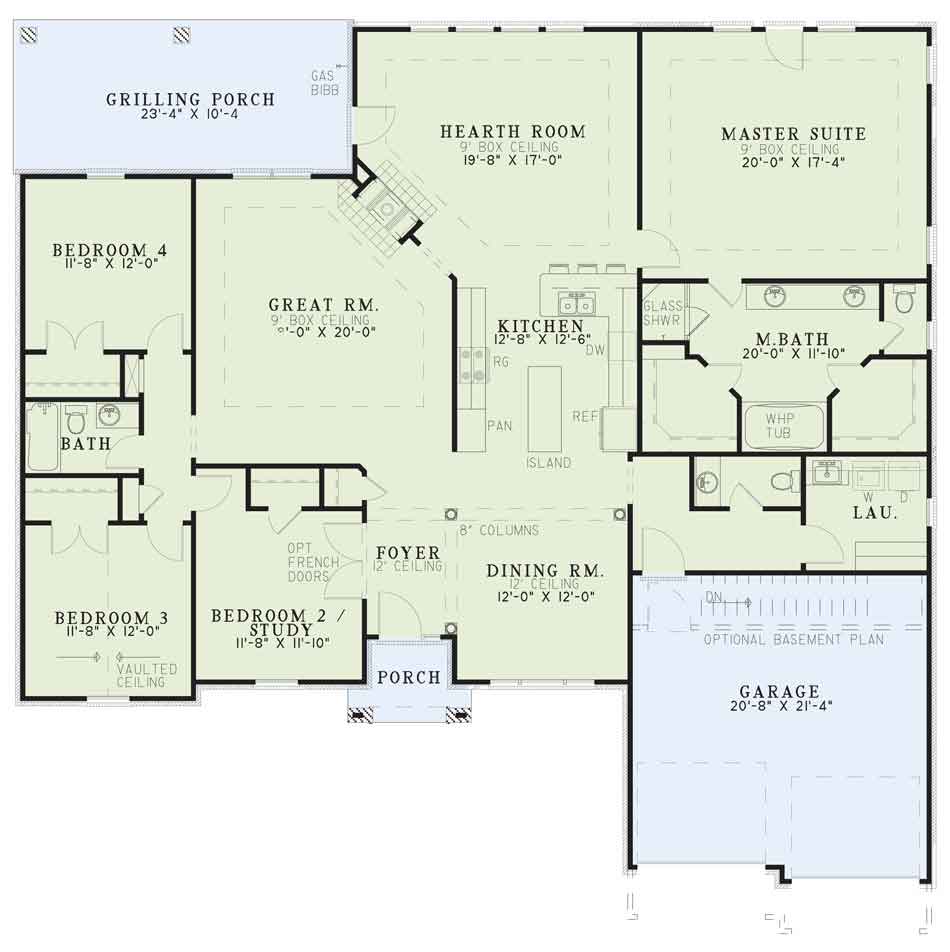

Floor Plan #1
Description
This four-bedroom home boasts a arched entry and choice of two exciting exteriors. Once inside, guests will appreciate the lavish columns offsetting the formal dining room and optional sleek French doors to the study. Boxed ceilings throughout enhance the open floor plan. A pass-through fireplace between the great room and hearth room extends class and elegance to this neo-traditional home. The large walk-through kitchen allows unimpeded access to all living areas of the house.
Home Specifications
- Total Living Space: 2554
- Ridge Height (Ft.) 24
- Main Floor (Sq. Ft.): 2554 Sq.Ft
- Ridge Height (In.) 0
- Upper Floor (Sq. Ft.): N/A
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: N/A
- Porch (Sq. Ft.): 290 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 441 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Front Load Front Load
- Bedrooms: 4
- Carport: N/A
- Full Baths: 2
- Roof Pitch: 8:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 1.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: Yes
- Depth (Ft): 60
- Width (Ft): 64
- Depth (In.) 2
- Width (In.) N/A
- Total Sq. Ft. 3285 Sq.Ft.
- Customizable: Yes
Key Features
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Grilling Porch
- Home Office/Study
- Kitchen Island
- Main Floor Master
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in Closet
