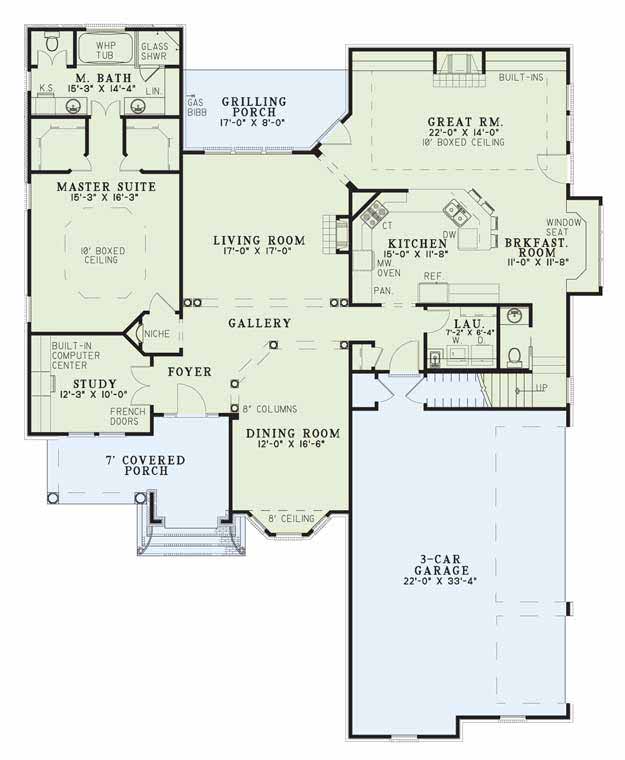

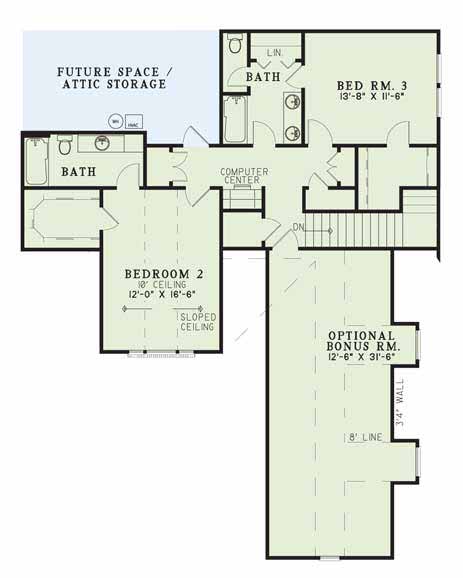

Floor Plans
Floor Plan #1
Description
The unmatched curb appeal of this spacious home showcases a covered, arched entry, bay window and multiple gables as part of an eye-catching exterior. Inside, the great room is located at the rear of the house, blending with the breakfast room and kitchen. A snack bar, fireplace, wide window seat and built-ins make this a special family gathering place. Also included are three elegant bedroom suites so there is no squabbling over shared bathroom time. Upstairs you’ll find a centrally located computer center providing a great place for homework.
Home Specifications
- Total Living Space: 2949
- Ridge Height (Ft.) 32
- Main Floor (Sq. Ft.): 2126 Sq.Ft
- Ridge Height (In.) 10
- Upper Floor (Sq. Ft.): 823 Sq.Ft.
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 390 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 733 Sq.Ft.
- Garage: 3 Bay Yes
- Bonus (Sq.Ft): 442 Sq.Ft.
- Garage/Carport Type:Side Load Side Load
- Bedrooms: 3
- Carport: N/A
- Full Baths: 3
- Roof Pitch: 12:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 1.5
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 73
- Width (Ft): 59
- Depth (In.) N/A
- Width (In.) N/A
- Total Sq. Ft. 4514 Sq.Ft.
- Customizable: Yes
Key Features
- Arched Entry
- Bonus Room Over Garage
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Grilling Porch
- Home Office/Study
- Main Floor Master
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in Closet
