Floor Plan #1
Description
A wrap around porch with a ten foot beaded ceiling, round columns and gentle arches welcome you into this home. The foyer also carries a ten foot ceiling and leads into a great room with fireplace and a view overlooking the grilling porch. A wide walkway leads you into a breakfast bay adjoining the kitchen and through to the formal dining room. Entertaining will be enjoyable for both you and guests with this easy flowing floor plan. The master suite adorned with boxed ceiling, as well as one bedroom and full bath are on the main floor. Upstairs has two additional bedrooms, a full bath and a large bonus room located over the garage.
Home Specifications
- Total Living Space: 2635
- Ridge Height (Ft.) 28

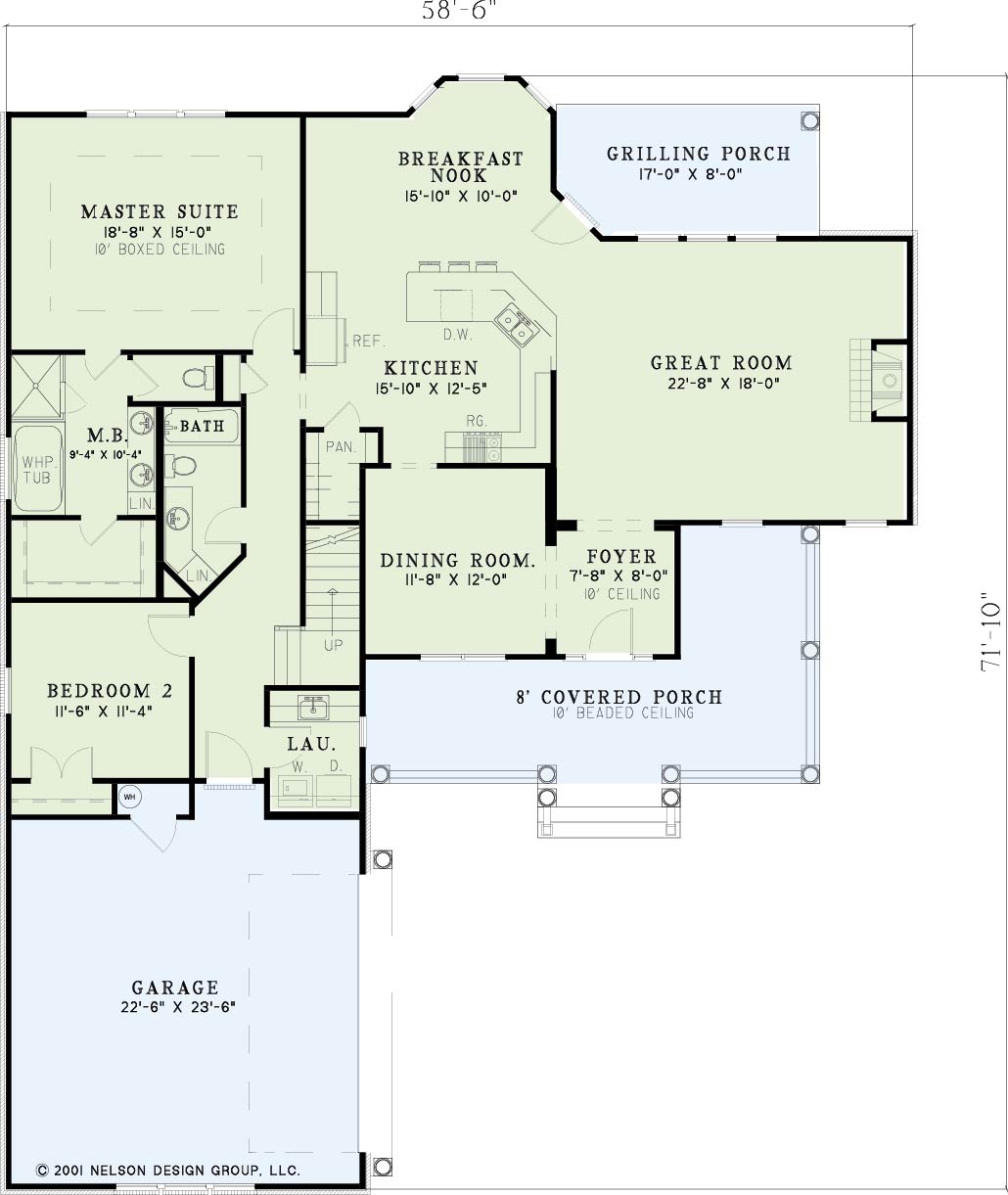

- Main Floor (Sq. Ft.): 1992 Sq.Ft
- Ridge Height (In.) 6

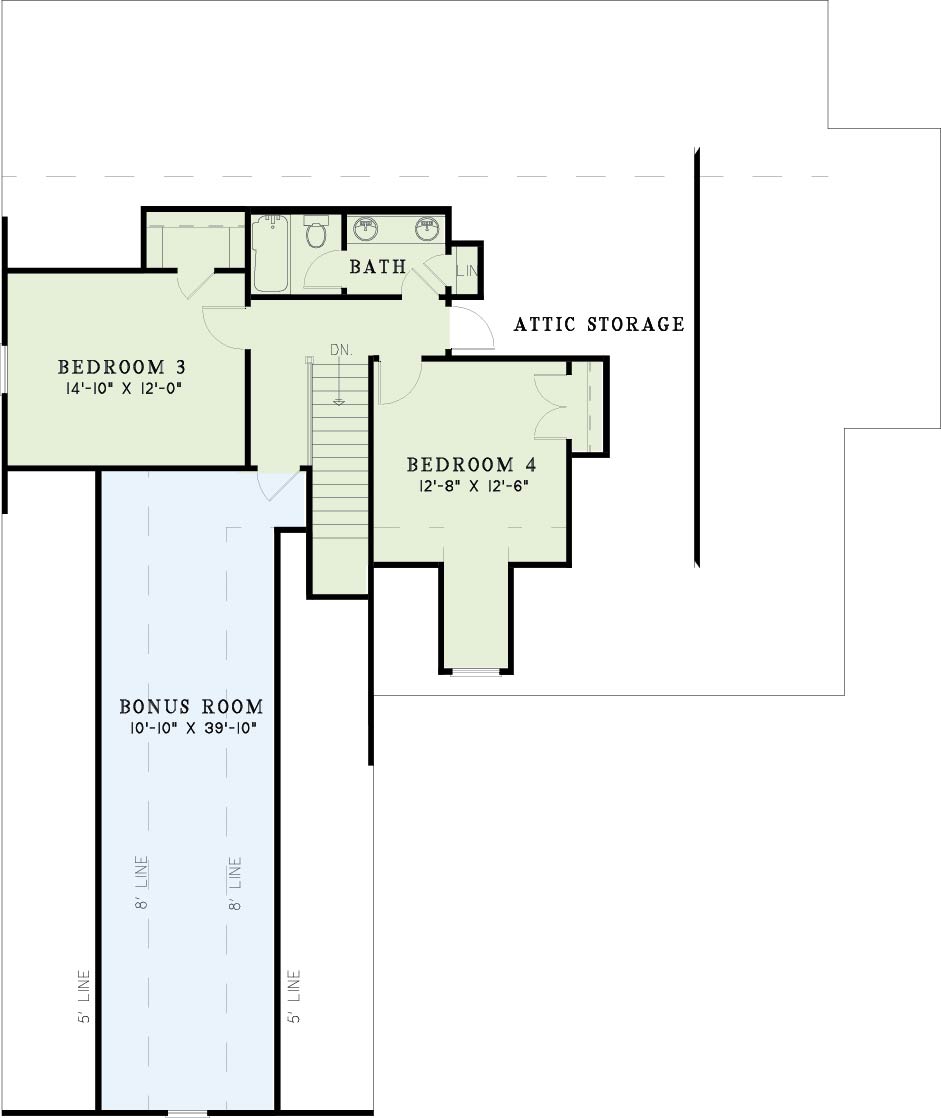

- Upper Floor (Sq. Ft.): 643 Sq.Ft.
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 467 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 572 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): 468 Sq.Ft.
- Garage/Carport Type:Court Yard Court Yard
- Bedrooms: 4
- Carport: N/A
- Full Baths: 3
- Roof Pitch: 10:12
- Porch Roof Pitch: 10:12
- Stories: 1.5
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 71
- Width (Ft): 58
- Depth (In.) 10
- Width (In.) 6
- Total Sq. Ft. 4142 Sq.Ft.
- Customizable: Yes
Key Features
- Bonus Room Over Garage
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Grilling Porch
- Main Floor Master
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in Closet
- Walk-in-Pantry
- Wrap-Around Porch
