Floor Plans
Floor Plan #1
Description
House Plan 154 Chestnut Lane – Elegant Traditional Living for Growing Families
When you’re comparing house plans that combine classic curb appeal, smart layout, and future flexibility, House Plan 154 Chestnut Lane stands out. This traditional single‑story design delivers approximately 2,097 square feet of living space, with 4 bedrooms, 2 full baths, and a side‑load 2‑car garage.
Key Features That Help Sell

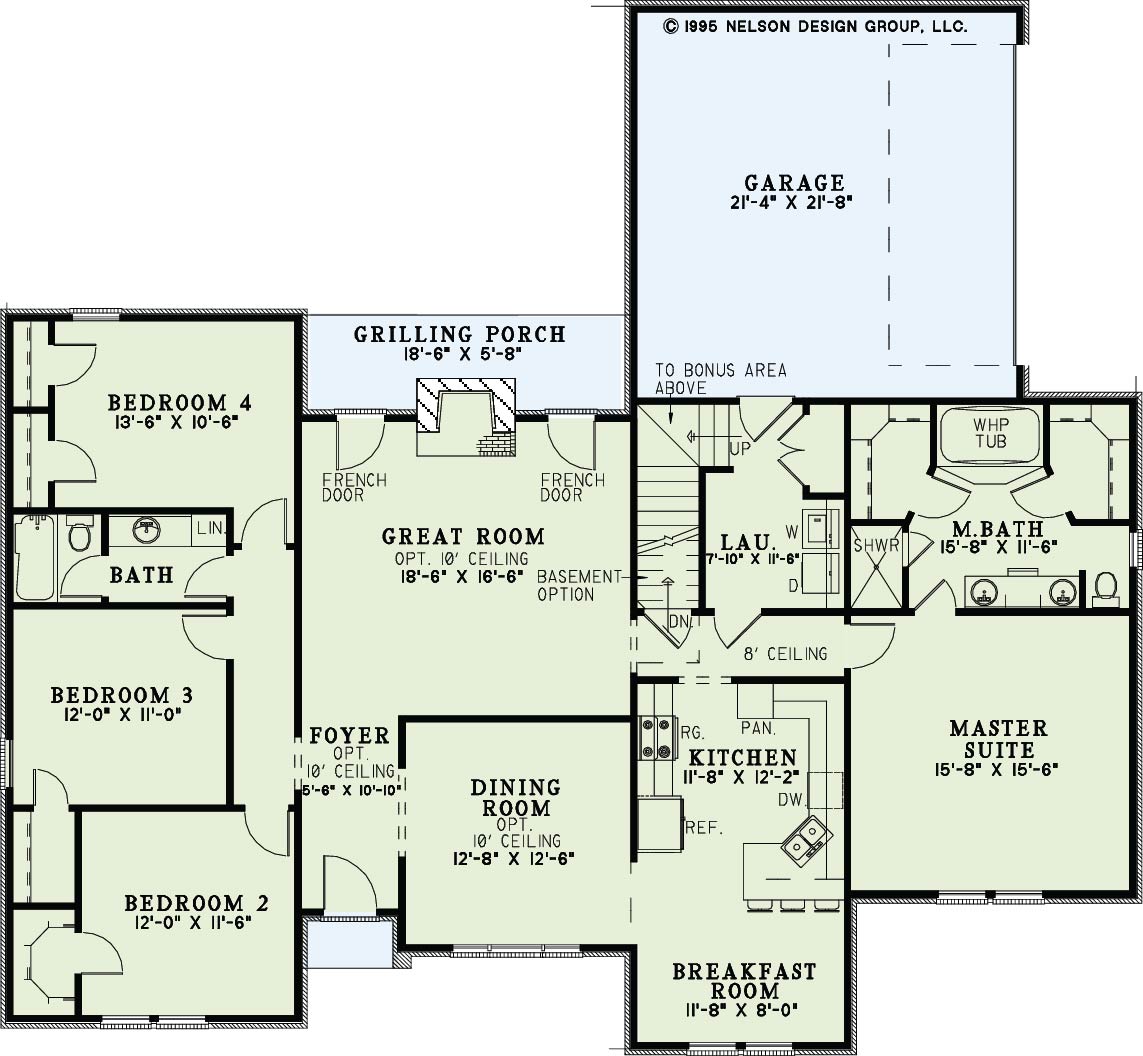

- Timeless brick exterior & welcoming entry: A classic brick façade leads into a foyer open to both the formal dining room and great room—making a stellar first impression.
- Inviting great room for gatherings: Anchored by a fireplace, the great room features double French doors that connect to a covered grilling porch—perfect for indoor-outdoor flow.
- Open kitchen & breakfast area: The kitchen with a breakfast bar promotes informal conversation and easy access to the casual dining zone.
- Private main‑level master suite: Positioned to the right of the home, the master bedroom offers a private retreat. It includes a whirlpool tub, separate shower, dual vanities, walk-in closets, and direct access to the rear porch.
- Efficient bedroom wing: On the opposite side, three secondary bedrooms share a hall bath with separate toilet/shower room for additional privacy.
- Laundry‑mudroom convenience: Located adjacent to the master and connected to the garage, this space doubles as a mudroom and keeps household traffic flowing smoothly.

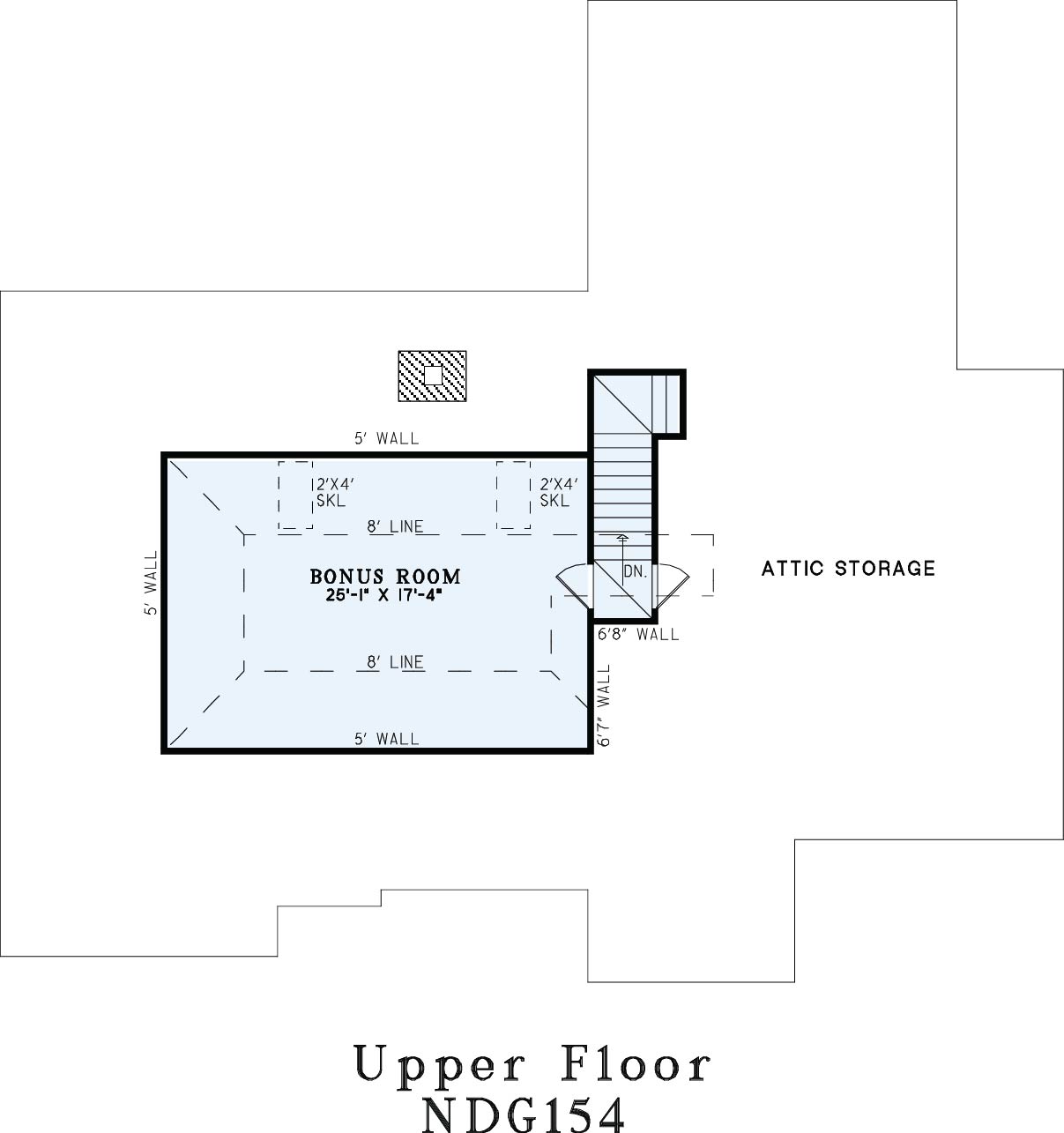

- Flexible bonus space: The optional upstairs bonus room gives future potential for media, guest, or hobby use.
Home Specifications
- Total Living Space: 2097
- Ridge Height (Ft.) 21
- Main Floor (Sq. Ft.): 2097 Sq.Ft
- Ridge Height (In.) 10
- Upper Floor (Sq. Ft.): N/A
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 127 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 484 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): 455 Sq.Ft.
- Garage/Carport Type:Side Load Side Load
- Bedrooms: 4
- Carport: No
- Full Baths: 2
- Roof Pitch: 8:12
- Porch Roof Pitch: N/A
- Stories: 1.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 58
- Width (Ft): 63
- Depth (In.) 6
- Width (In.) 4
- Total Sq. Ft. 3163 Sq.Ft.
- Customizable: Yes
Key Features
- Bonus Room
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Grilling Porch
- Main Floor Master
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in Closet
