Floor Plans

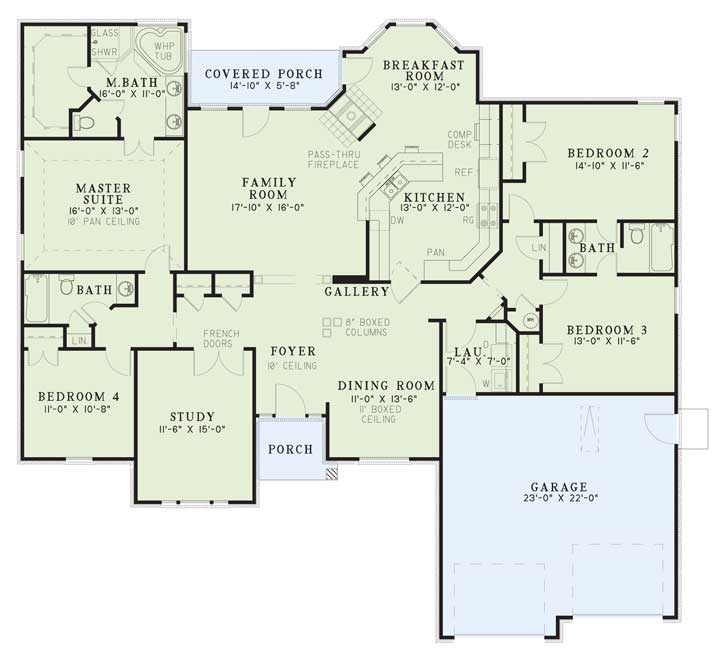

Floor Plan #1
Description
Elegant & Sophisticated House Plans — House Plan NDG 204 “Richmond Drive”
When exploring house plans that blend refined style, livability, and architectural interest, House Plan NDG 204 “Richmond Drive” delivers in spades. This French‑traditional, one‑story design offers 2,439 square feet of living space, with 4 bedrooms and 3 full baths, plus a 2‑bay front‑load garage—an ideal plan for families who want both form and function.
Highlights & Design Appeal
- Striking curb appeal: From the covered front and rear porches to elegant details like boxed columns, a gallery entrance, and framed formal spaces, this home makes a memorable statement.
- Dramatic and welcoming gallery: The grand gallery draws attention upon entry, with French‑door access into a large study and framed columns leading into the formal dining room and family room.
- Open, warm living zones: A pass‑through fireplace between the family room and kitchen enhances the flow, connecting the sunny breakfast area and creating cozy, comfortable interaction zones for family and guests.
- Thoughtful master suite: The master bedroom delivers generous space and amenities, positioned for privacy and comfort.
-
Balanced floor plan: Three additional bedrooms are well located, providing private retreats while remaining easily accessible to living areas.
Home Specifications
- Total Living Space: 2439
- Ridge Height (Ft.) 21
- Main Floor (Sq. Ft.): 2439 Sq.Ft
- Ridge Height (In.) 1
- Upper Floor (Sq. Ft.): N/A
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: N/A
- Porch (Sq. Ft.): 179 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 506 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Front Load Front Load
- Bedrooms: 4
- Carport: No
- Full Baths: 3
- Roof Pitch: 8:12
- Porch Roof Pitch: N/A
- Stories: 1.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 61
- Width (Ft): 65
- Depth (In.) 7
- Width (In.) 8
- Total Sq. Ft. 3124 Sq.Ft.
- Customizable: Yes
Key Features
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Home Office/Study
- Main Floor Master
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in Closet
