House Plan 405-1 Carriage Hill II, Multi-Family House Plan
Or order by phone: (870) 931-5777
Floor Plans

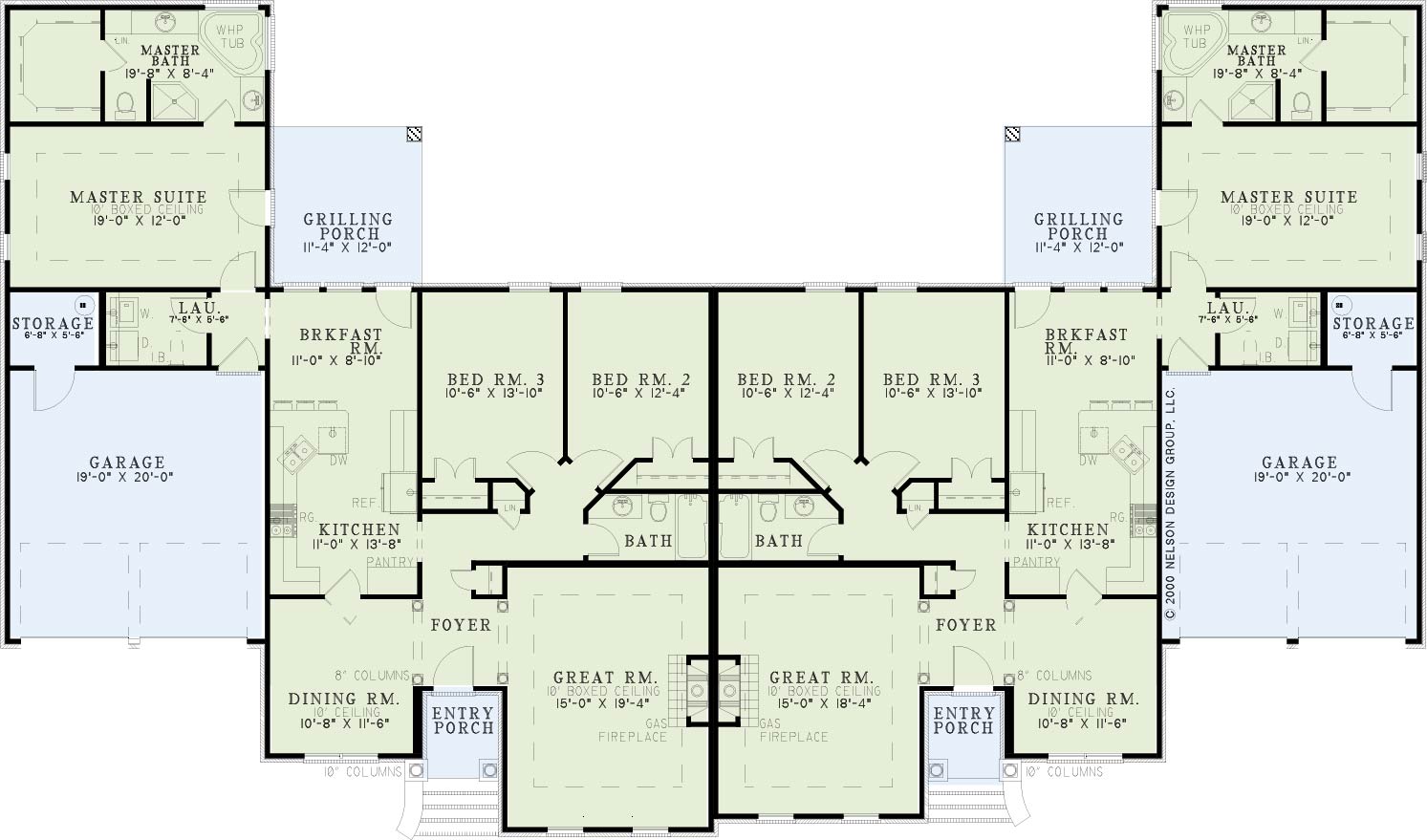

Floor Plan #1
Description

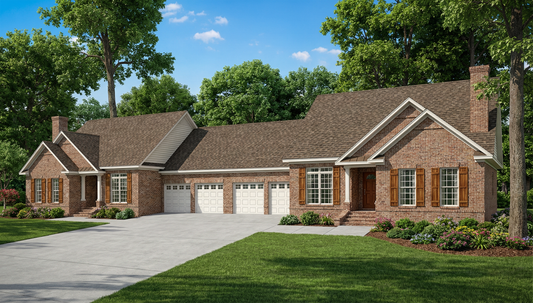

House Plan 405‑1 Carriage Hill II | NDG 405‑1 – Traditional 3‑Bedroom Multi‑Family House Plan
Unlock smart investment and flexible living with House Plan 405‑1 Carriage Hill II from Nelson Design Group — a beautifully designed multi‑family house plan that blends classic architectural appeal with practical functionality. Each side of this one‑story duplex offers approximately 1,714 sq ft of total living space, making it ideal for extended families, rental income, or shared living arrangements without sacrificing comfort or style.
Each unit of the Carriage Hill II plan features 3 bedrooms and 2 full bathrooms, delivering a balanced layout that supports everyday life and relaxed entertaining. The main‑floor master suite serves as a private retreat with a walk‑in closet and a full bath, while two additional bedrooms provide flexibility for family members, guests, or a home office.

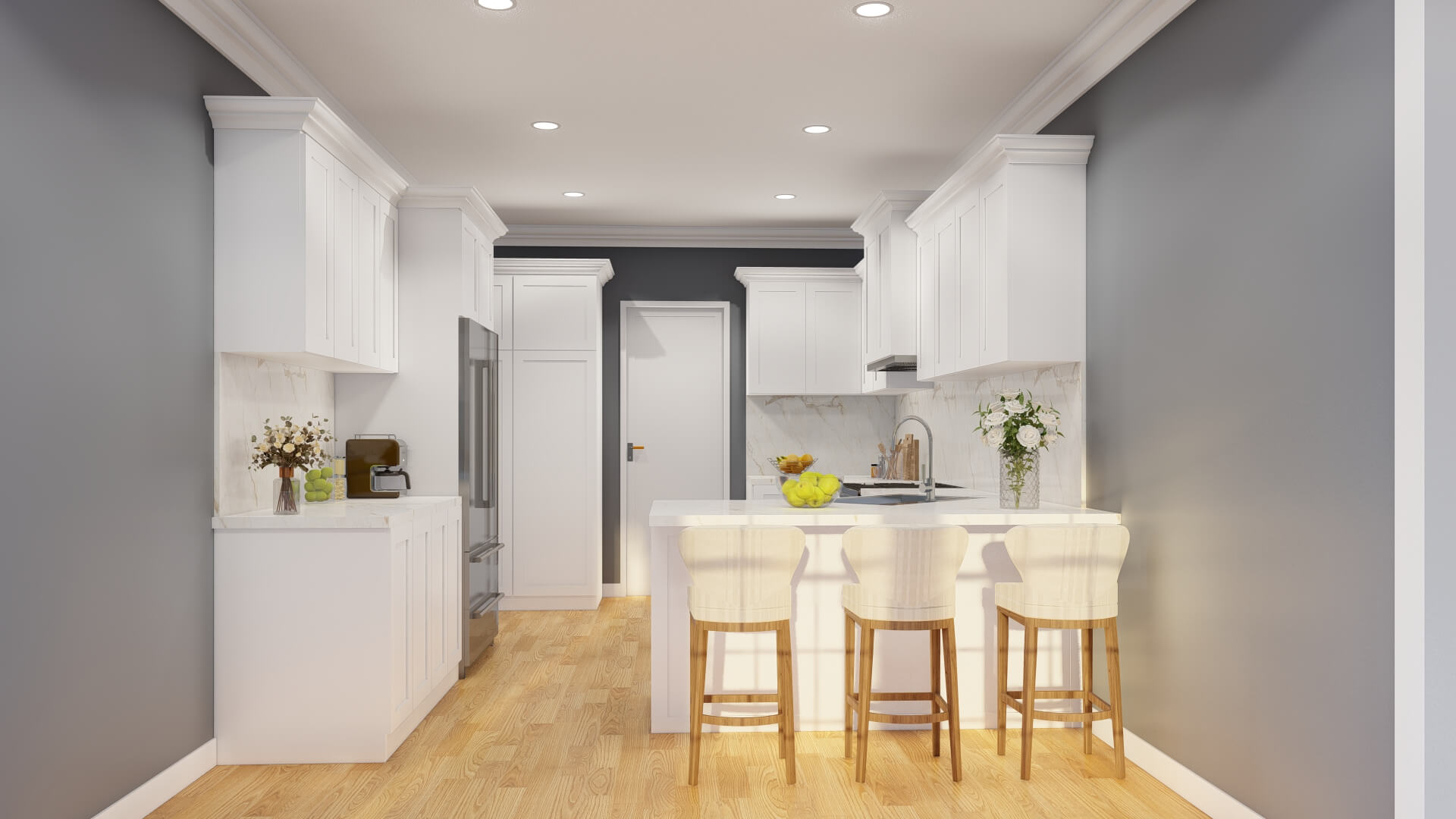

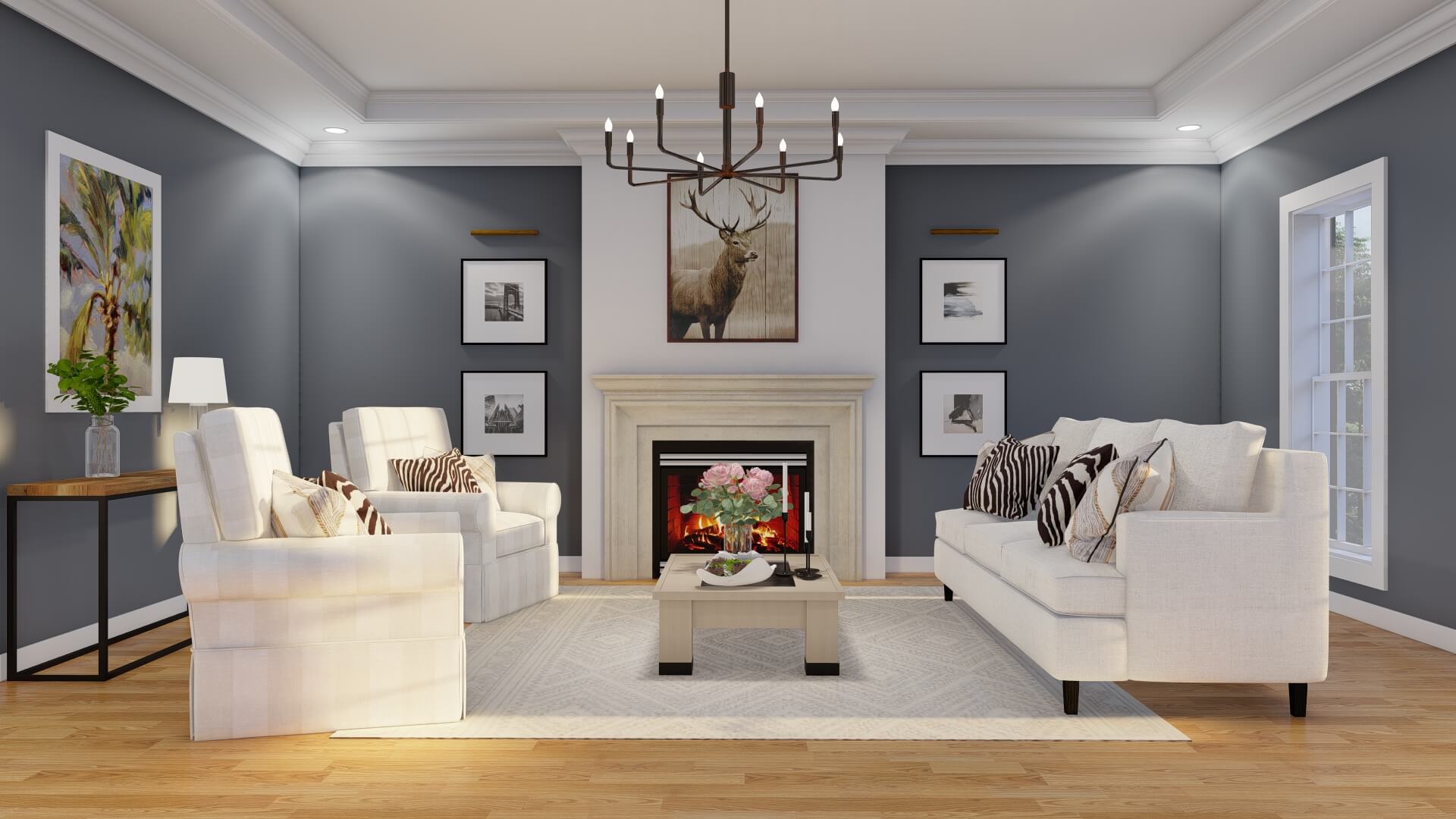

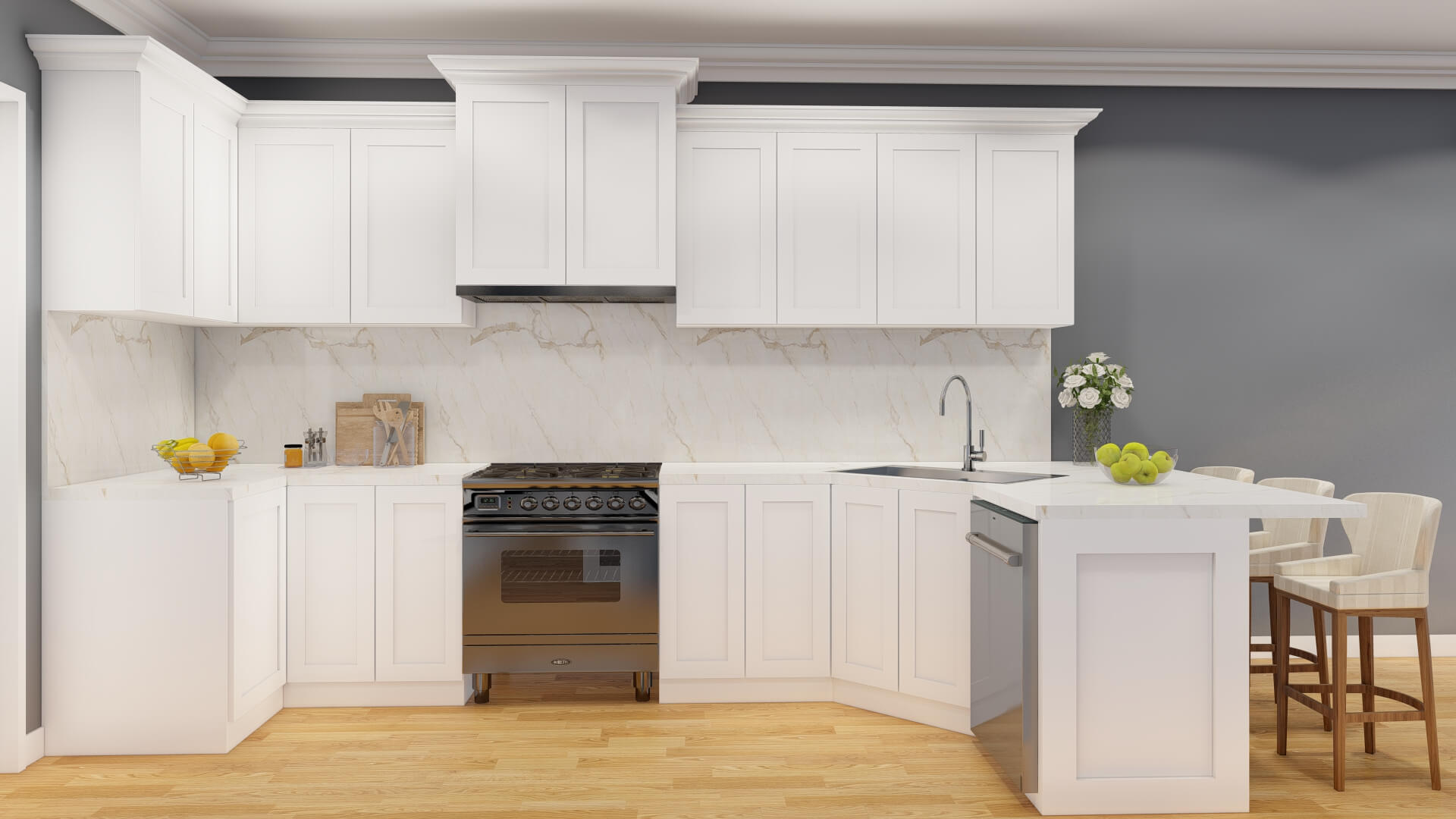

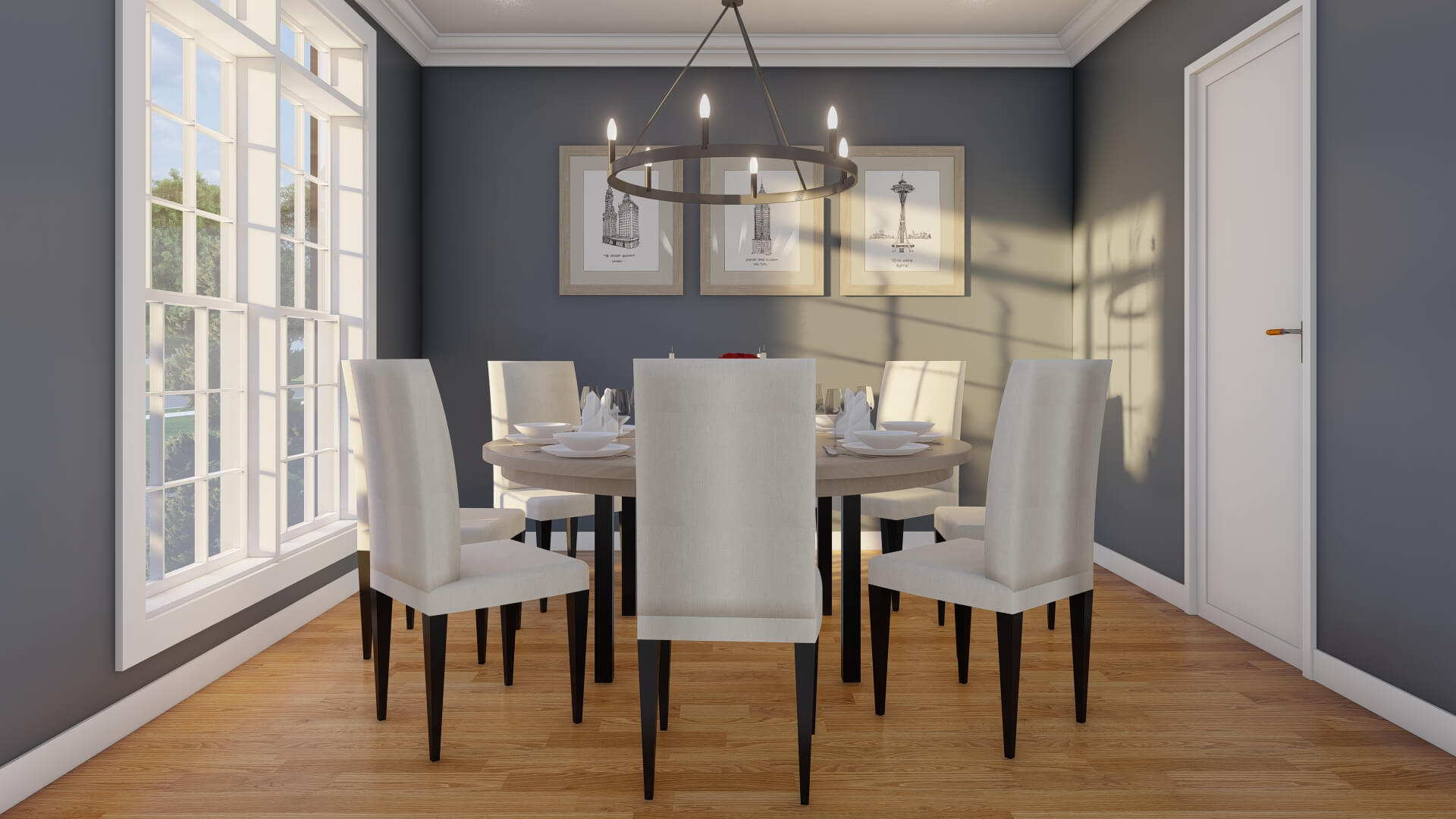

Step inside to find a gracious entry leading into a spacious great room that opens to a formal dining area — an ideal combination for everyday living and special occasions alike. The well‑appointed kitchen, complete with an island and breakfast nook, encourages casual meals and connection, while thoughtful design touches like a covered front porch and grilling porch add inviting spaces for outdoor living.

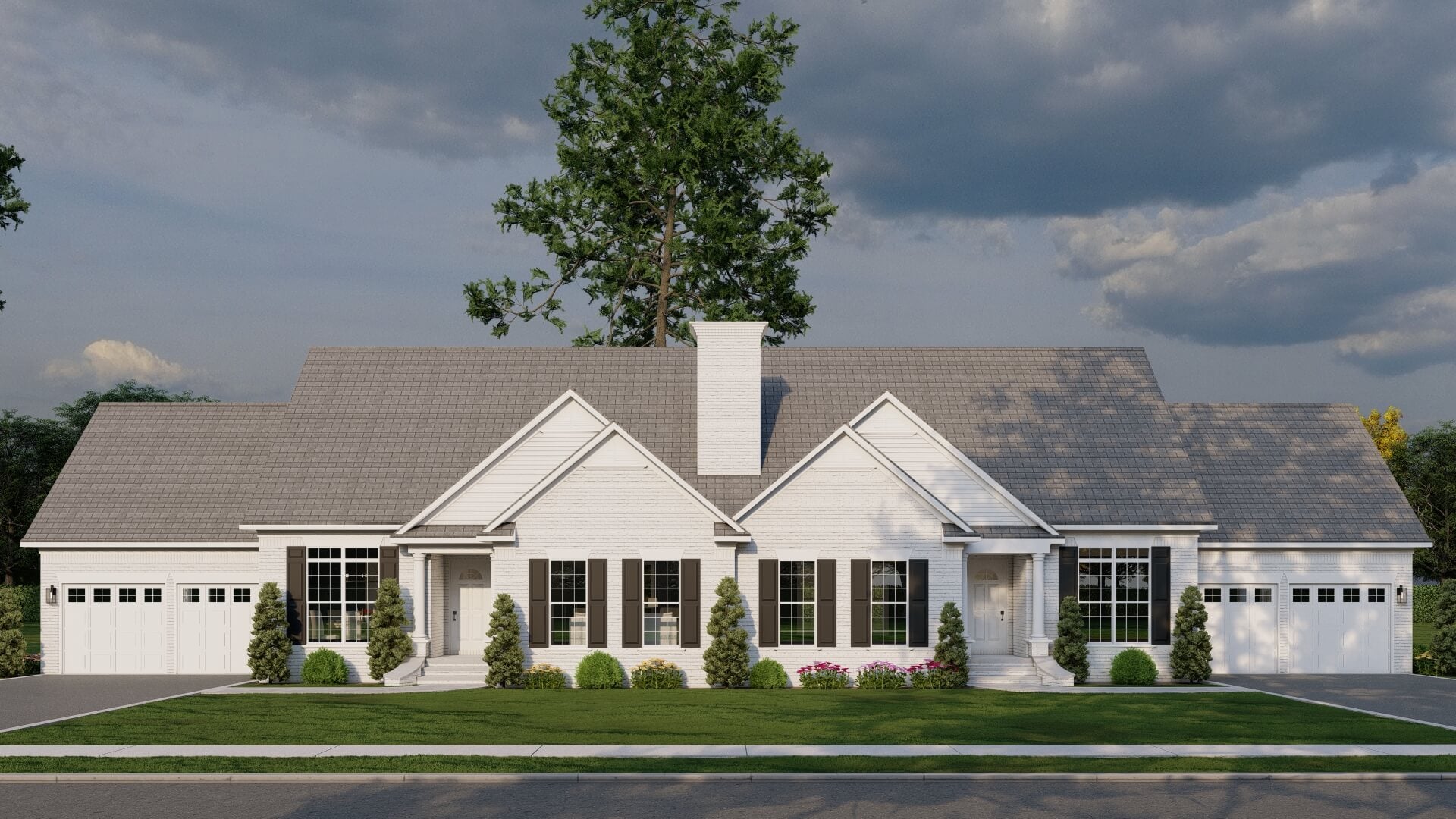

With an attached 2‑bay front‑load garage per unit, each side offers convenient parking and storage, enhancing functionality for residents. The duplex’s traditional styling and open, efficient floor plan make House Plan 405‑1 Carriage Hill II a compelling option among house plans for builders, investors, or multi‑generational households looking for timeless design and thoughtful living spaces under one roof.
Unit 1 H/C SQ.FT 1,714 Unit 2 H/C SQ.FT 1,698 Entire duplex Main floor H/C is 3,412 SQ.FT Entire duplex Storage and Porch SQ.FT is 1,216 Total SQ.FT 4,628
Home Specifications
- Total Living Space: 1714
- Ridge Height (Ft.) 25
- Main Floor (Sq. Ft.): 1714 Sq.Ft
- Ridge Height (In.) 0
- Upper Floor (Sq. Ft.): N/A
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: N/A
- Porch (Sq. Ft.): N/A
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 608 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Front Load Front Load
- Bedrooms: 3
- Carport: N/A
- Full Baths: 2
- Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Stories: 1.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: N/A
- Depth (Ft): 61
- Width (Ft): 105
- Depth (In.) 6
- Width (In.) 4
- Total Sq. Ft. 2322 Sq.Ft.
- Customizable: Yes
Key Features
- Covered Front Porch
- Formal Dining Room
- Great Room
- Grilling Porch
- Kitchen Island
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Single Story
- Split Bedroom Design
- Walk-in Closet
Plan Collections
- Multi-Family House Plans
Plan Styles
- Traditional House Plans
