House Plan 5302 Park Place, Multi-Family House Plan

Floor plans

MEN 5302

House Plan 5302 Park Place, Multi-Family House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: MEN 5302
  • Total Living Space:1148Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 1
  • Half Baths: 1
  • Garage: N/A
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 38
  • Width In.: N/A
  • Depth Ft.: 32
  • Depth In.: 4

Description

MEN 5302

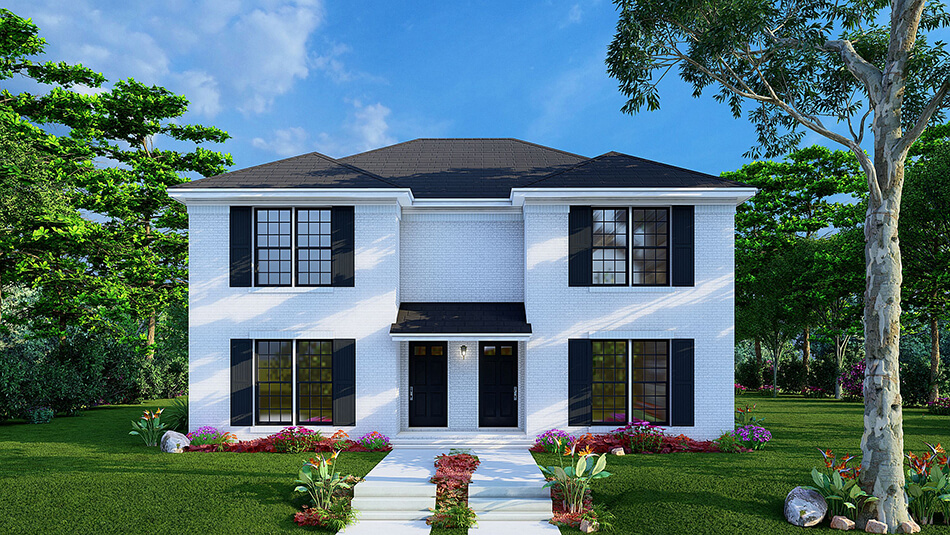

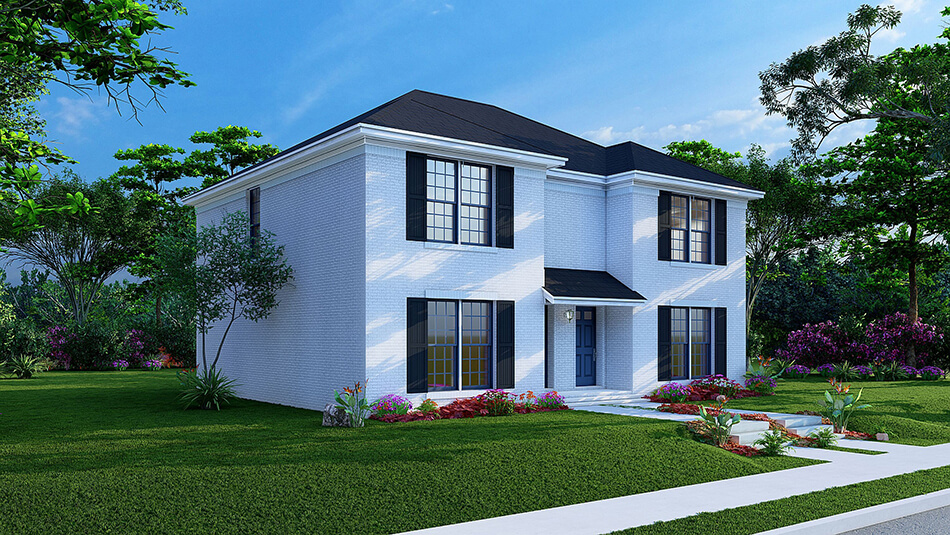

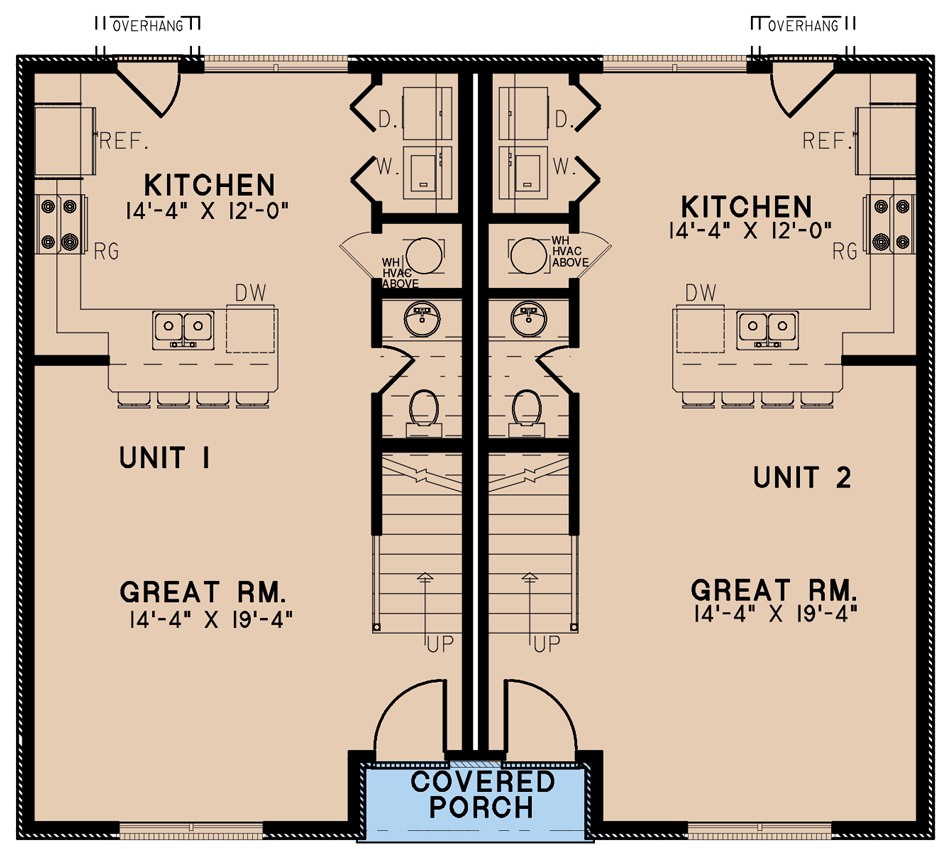

From award winning designer, Michael E. Nelson, comes the newest addition to our Multi-Family House Plan collection, Park Place. Coming in at just under 2300 Sq Ft., Park Place holds two units with 3 bedrooms each. A striking white brick exterior with black shutters offers a sleek, modern exterior making for the best curb appeal. Each unit offers a spacious great room with an open floor plan concept. An eat-at bar top offers great seating while boasting a spacious kitchen. The laundry closet can be found adjoined to the kitchen, while a half bathroom sits under the staircase, offering easy access for guests. The Total for all units is 2296 Sq. Ft.

Upper Level Living

Head upstairs to find 3 bedrooms and a bathroom at the top of the stairs. Bedrooms 2 and 3 offer standard closets, while bedroom 1 boasts a spacious walk in closet. Large picture windows in bedroom 1 also offer tons of natural light while, bedrooms 2 and 3 enjoy great views of the side & back of the property.

Customizing This House Plan

Make this house plan into your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experience house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: info@nelsondesigngroup.com or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.

Specifications

  • Total Living Space:1148Sq.Ft.
  • Main Floor: 594 Sq.Ft
  • Upper Floor (Sq.Ft.): 554 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 30 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1178 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
