Garage Plan 1493 Garage Plan Three Car Bays, Garage & Pool House Plan

Garage Plan-NDG 1493 Garage
Garage Plan-NDG 1493 Garage

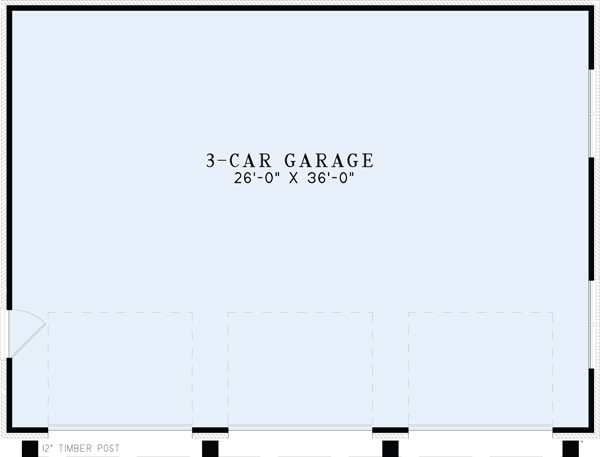

Floor plans

NDG 1493

Garage Plan 1493 Garage Plan Three Car Bays, Garage & Pool House Plan

PDF: $455.00

Plan Details

  • Plan Number: NDG 1493
  • Total Living Space:N/A
  • Bedrooms: N/A
  • Full Baths: N/A
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 36
  • Width In.: 8
  • Depth Ft.: 26
  • Depth In.: 8

Description

This is a 3-car front loading garage plan features separate arched doors and timber columns flanking each one that hold an extended shed roof for added cover. 2 windows are located on the right side with a door access on the left side. There’s a large copula on the top of the roof.

Specifications

  • Total Living Space:N/A
  • Main Floor: N/A
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): 973 Sq.Ft.
  • Total Square Feet: 973 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
