Garage Plan 1494 2-Car Garage Plan, Garage & Pool House Plan

Garage Plan-NDG 1494
Garage Plan-NDG 1494

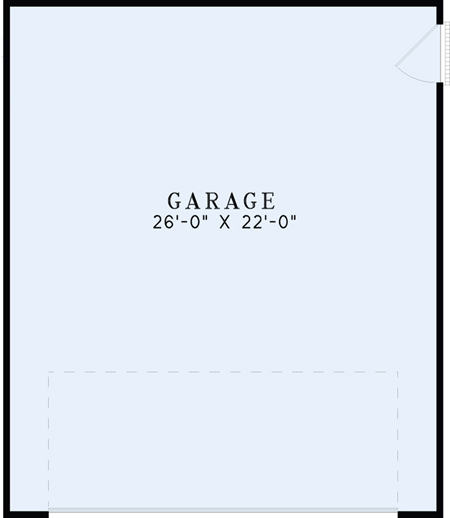

Floor plans

NDG 1494

Garage Plan 1494 2-Car Garage Plan, Garage & Pool House Plan

PDF: $345.00

Plan Details

  • Plan Number: NDG 1494
  • Total Living Space:N/A
  • Bedrooms: N/A
  • Full Baths: N/A
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 22
  • Width In.: 8
  • Depth Ft.: 26
  • Depth In.: 8

Description

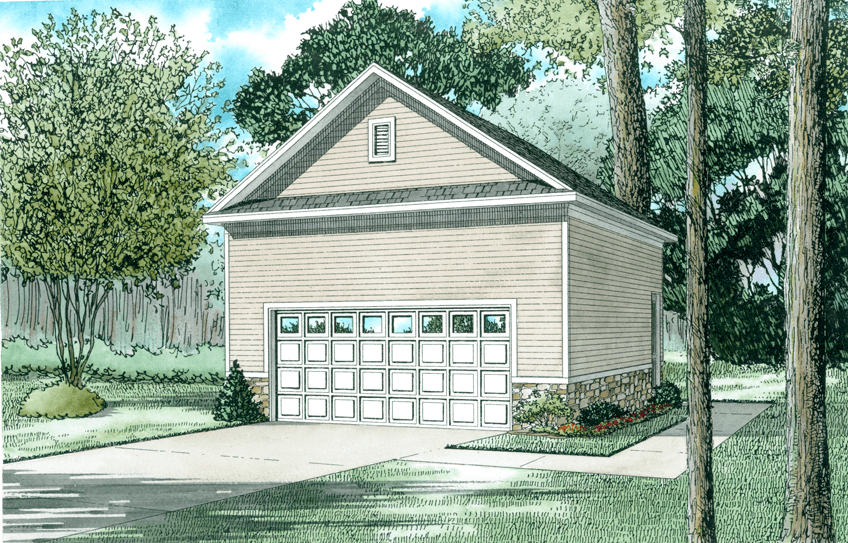

This 2-car garage is offered with either a brick or siding exterior. Both feature a centered gable with a door access at the back right corner. The siding version has a stone base for an added appeal.

Specifications

  • Total Living Space:N/A
  • Main Floor: N/A
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): 572 Sq.Ft.
  • Total Square Feet: 572 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
