House Plan 1109 Cambridge Court, Multi-Family House Plan

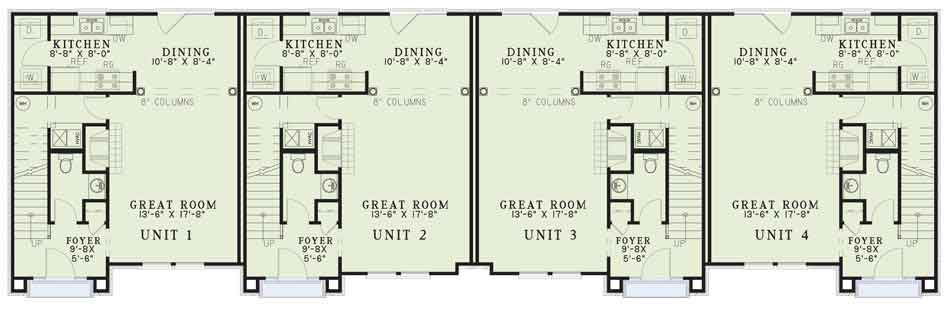

House Plan NDG 1109 Main Floor

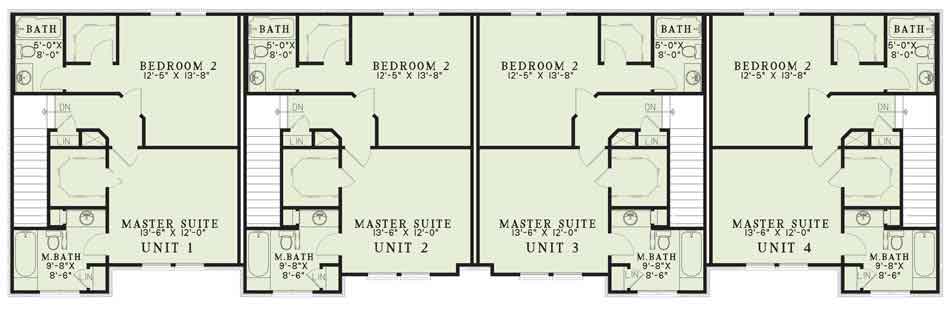

House Plan NDG 1109 Upper Floor

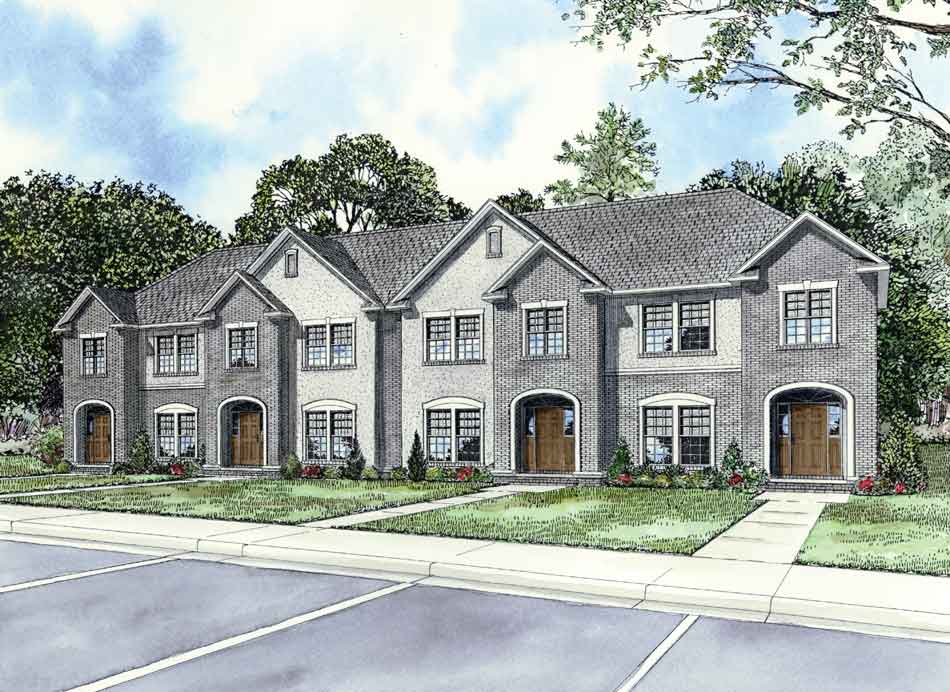

House Plan - NDG1109 Front Front View>
House Plan NDG 1109 Main Floor
House Plan NDG 1109 Upper Floor

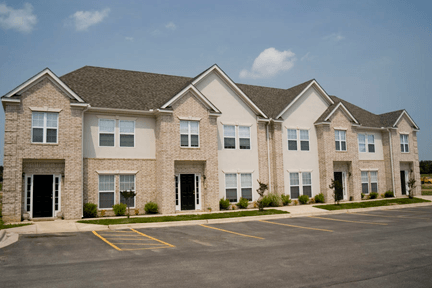

House Plan - NDG1109 Front Front View

Floor plans

NDG 1109

House Plan 1109 Cambridge Court, Multi-Family House Plan

PDF: $2,250.00

Plan Details

  • Plan Number: NDG 1109
  • Total Living Space:1286Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 97
  • Width In.: 6
  • Depth Ft.: 29
  • Depth In.: 6

Description

NDG 1109

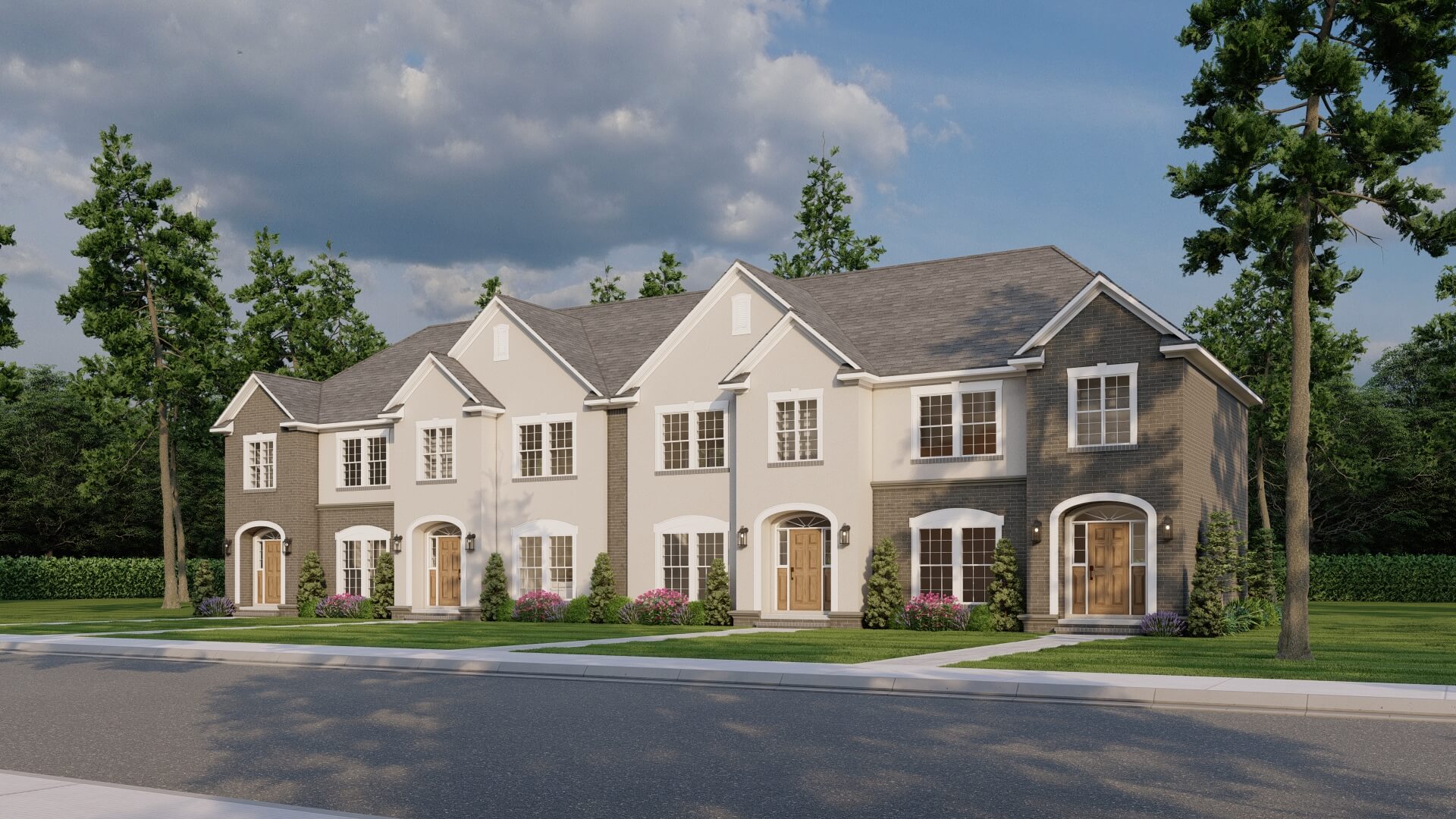

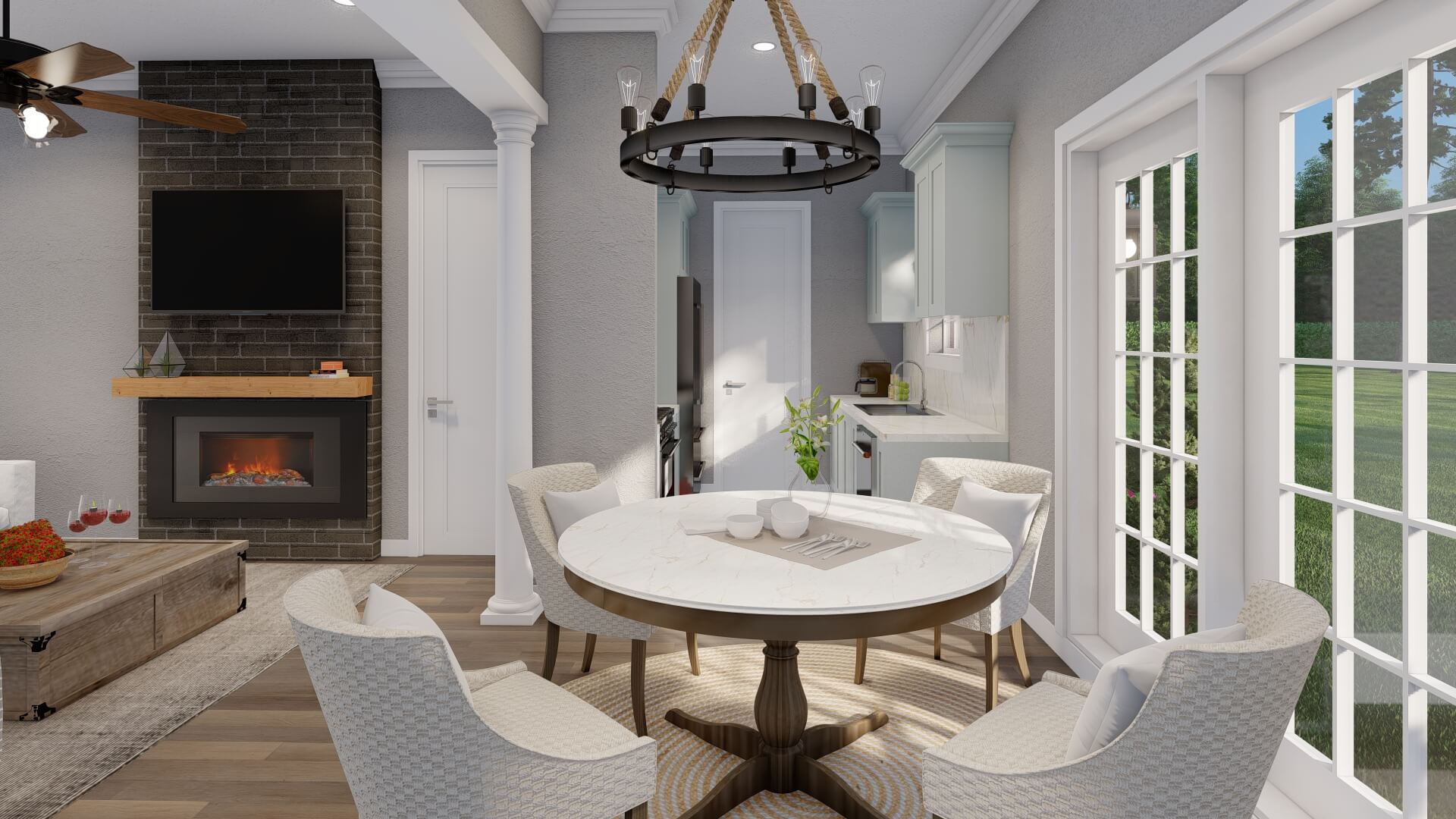

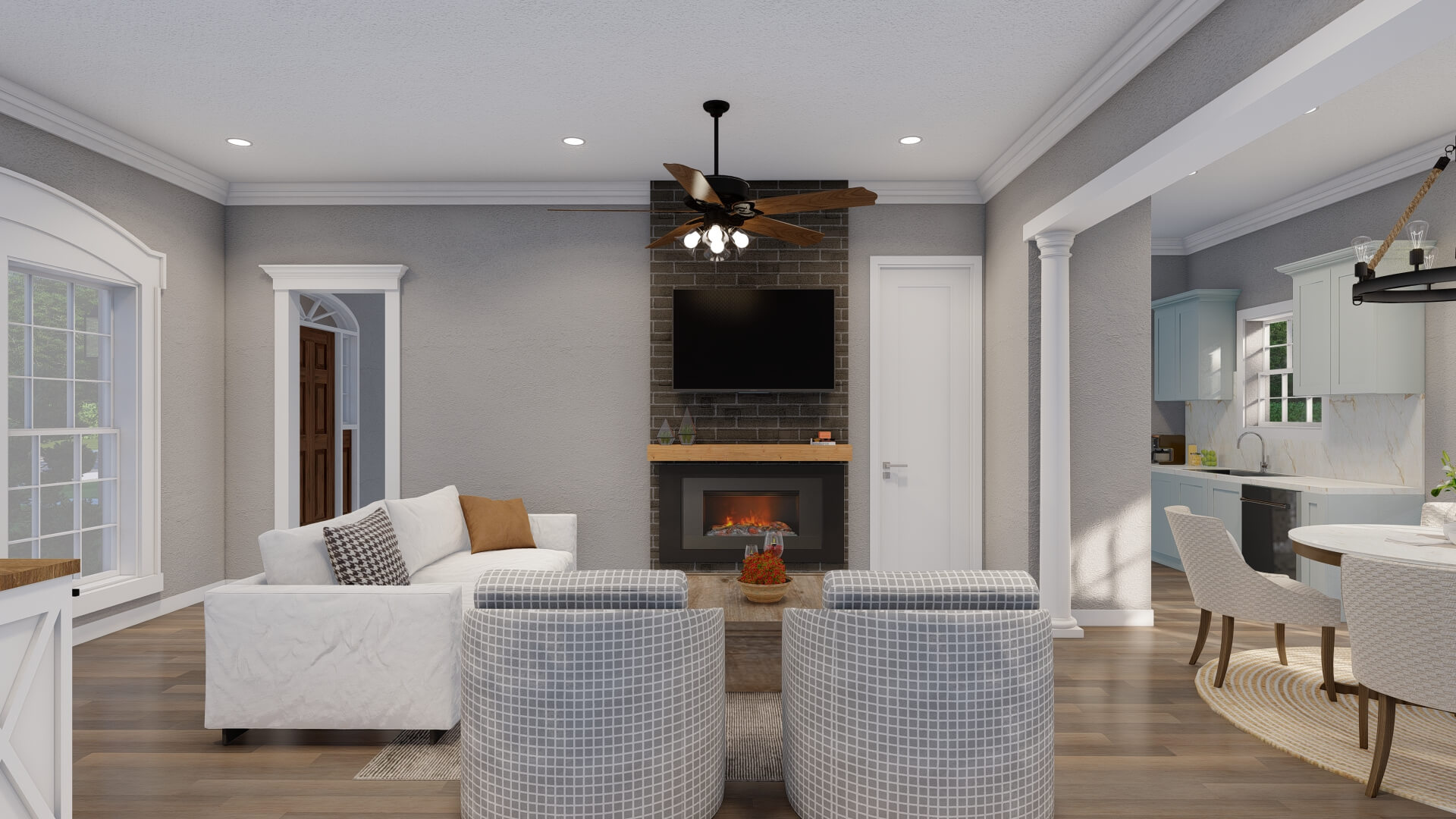

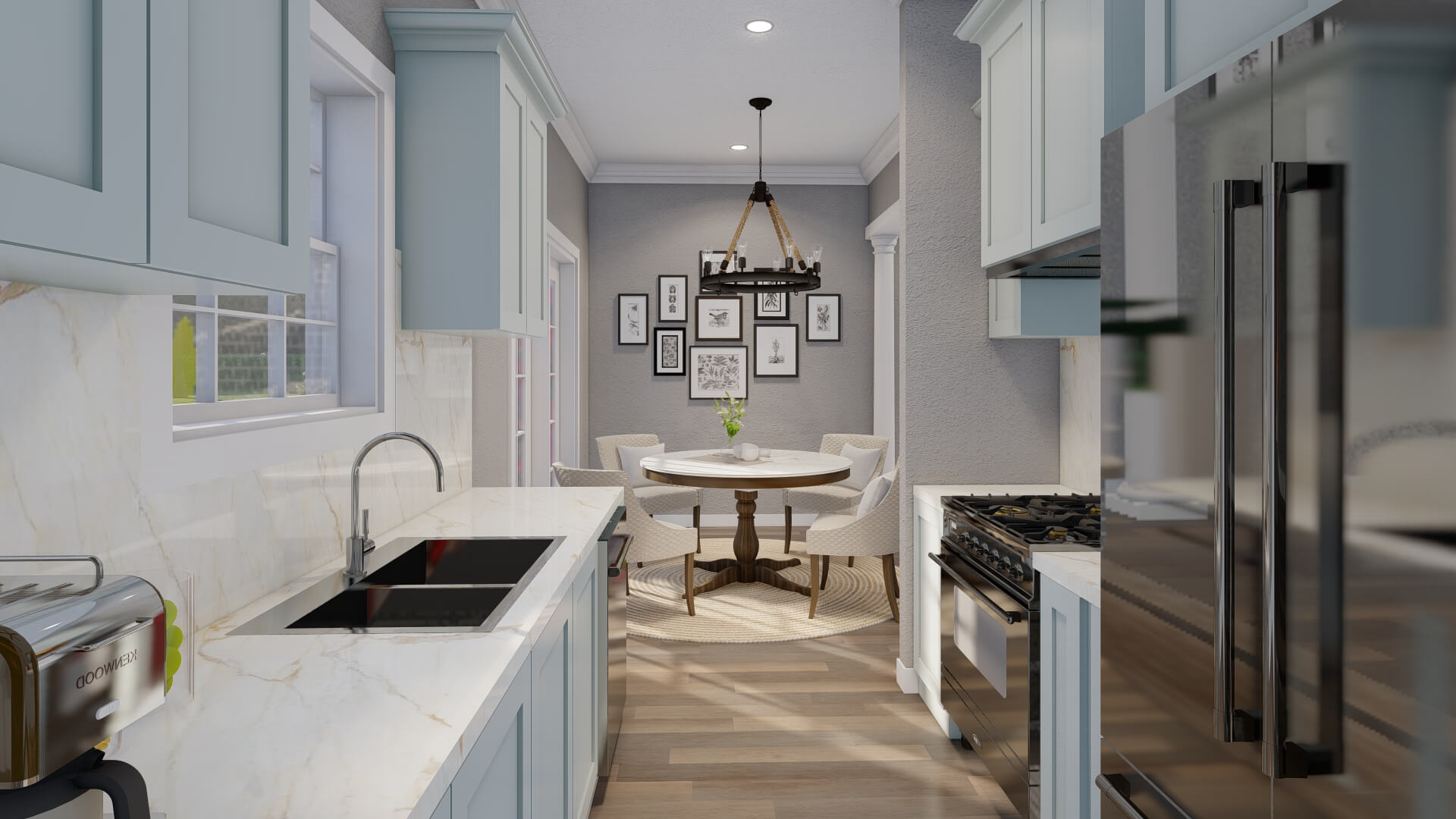

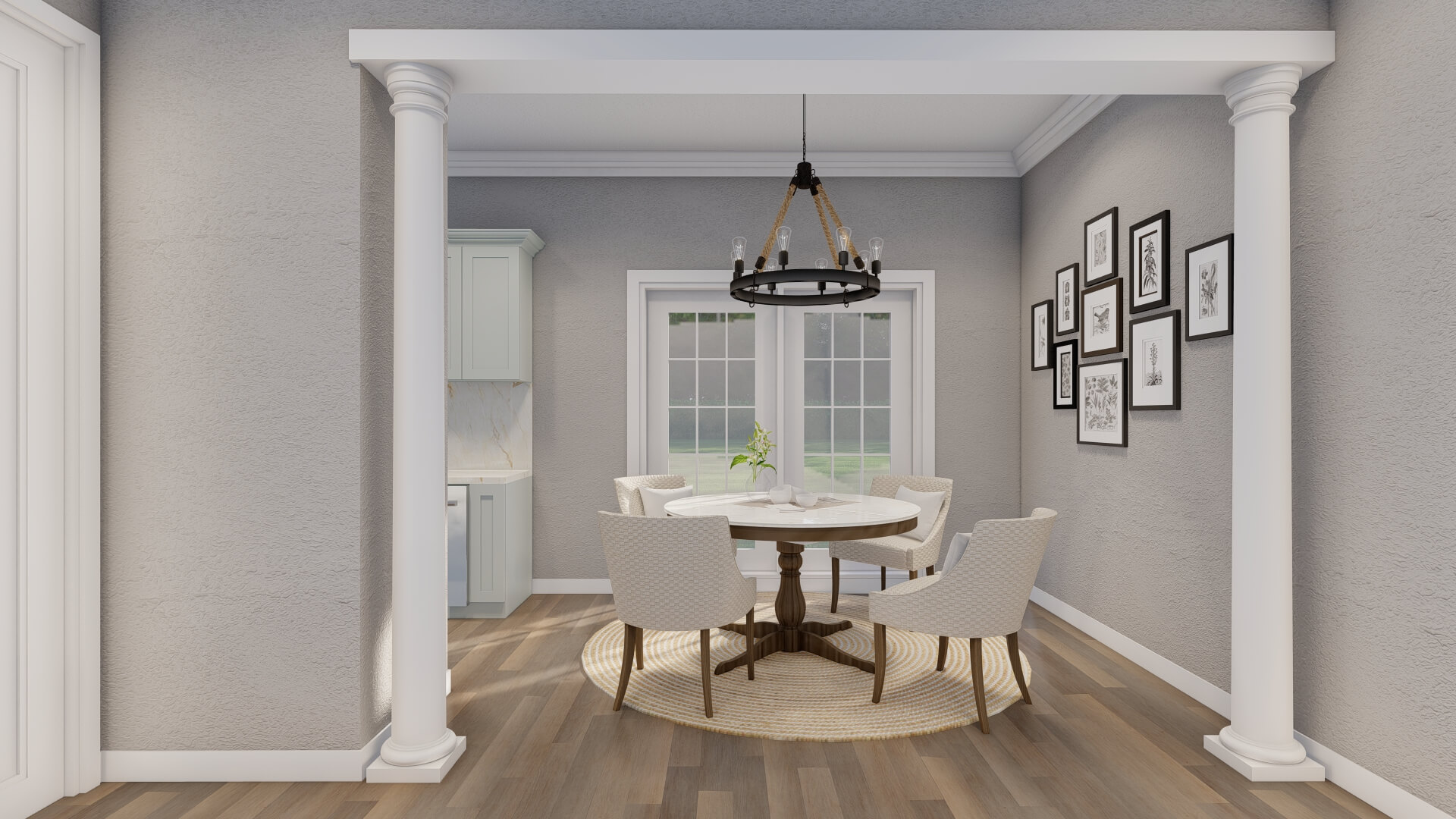

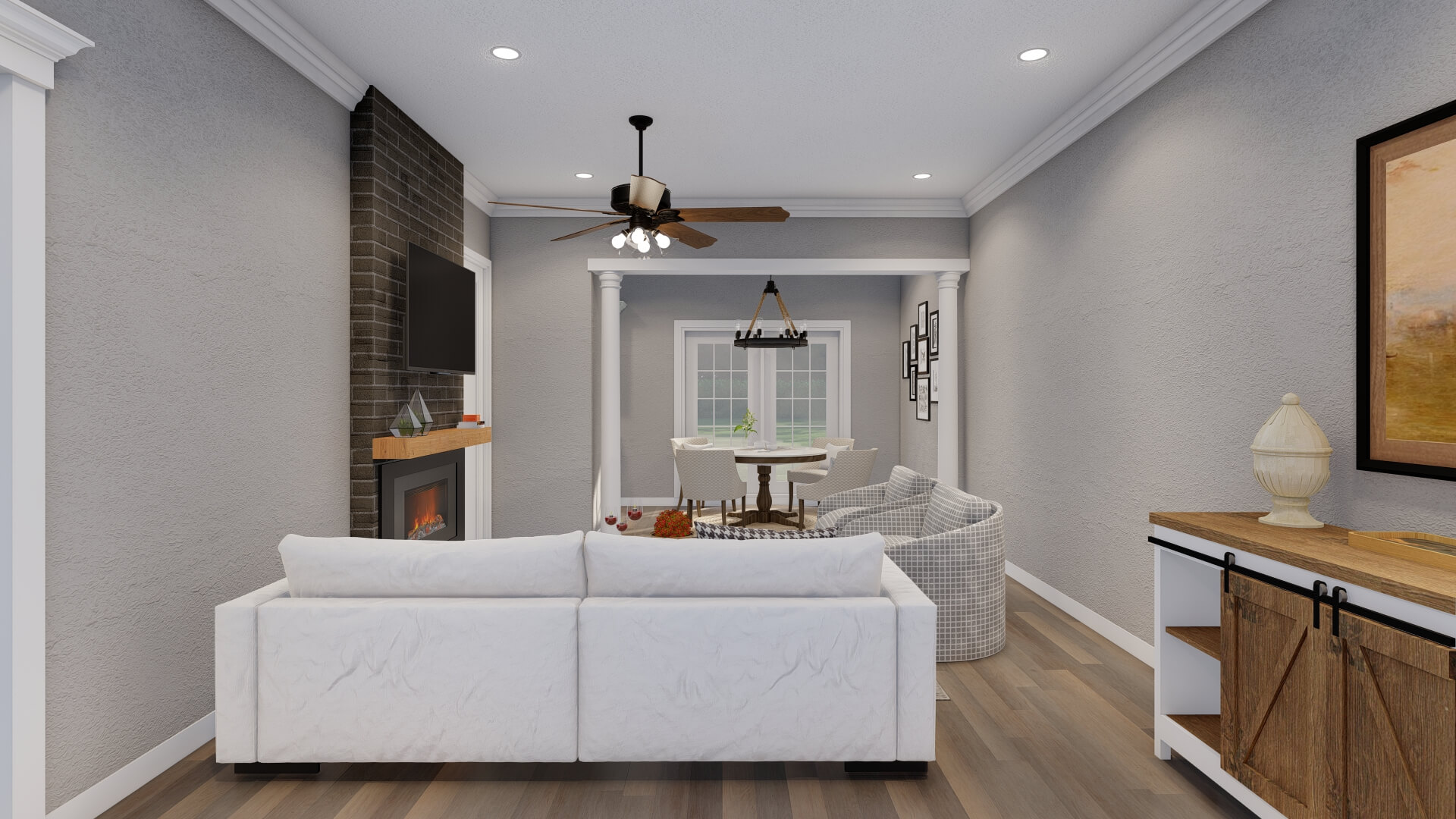

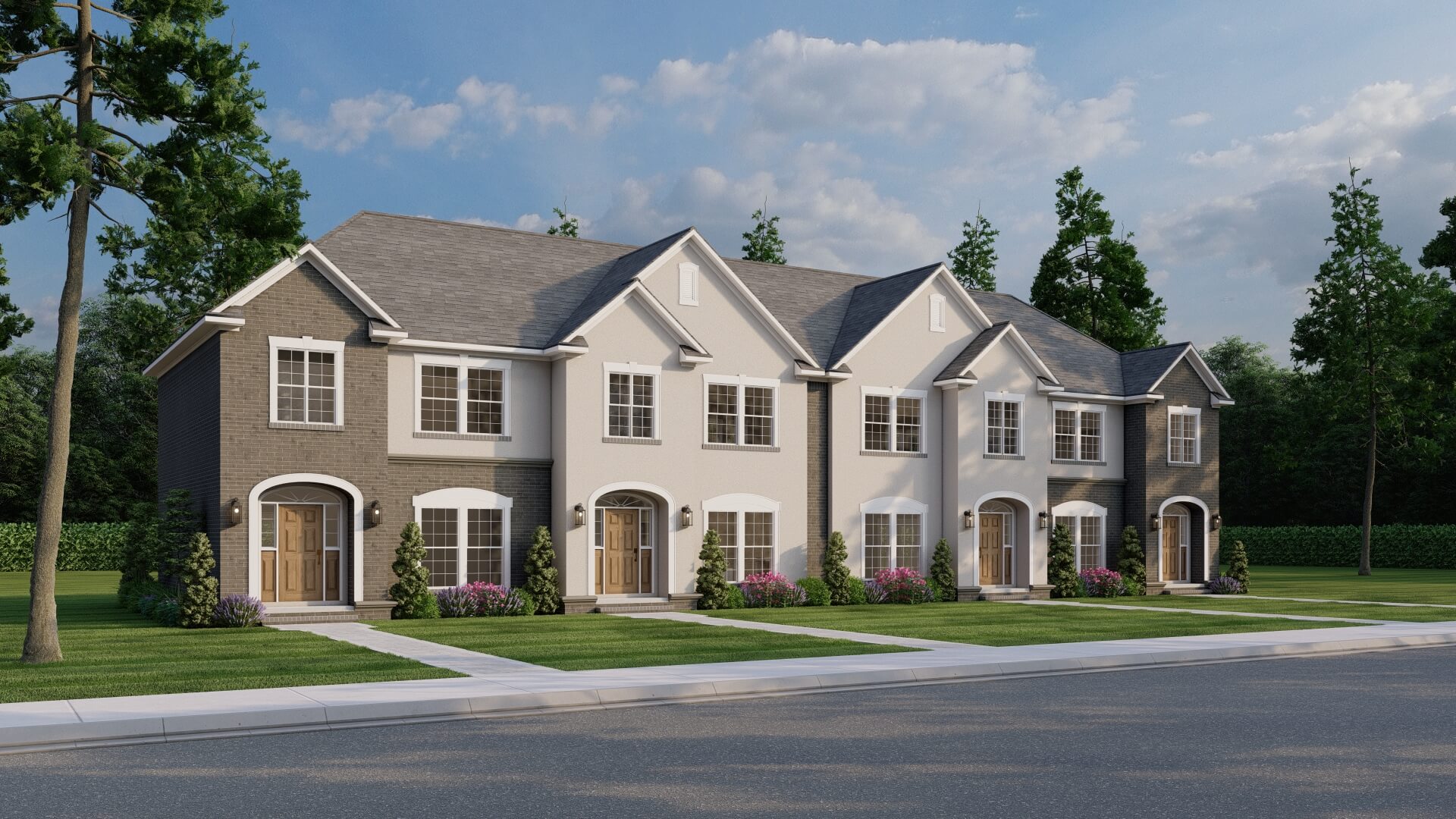

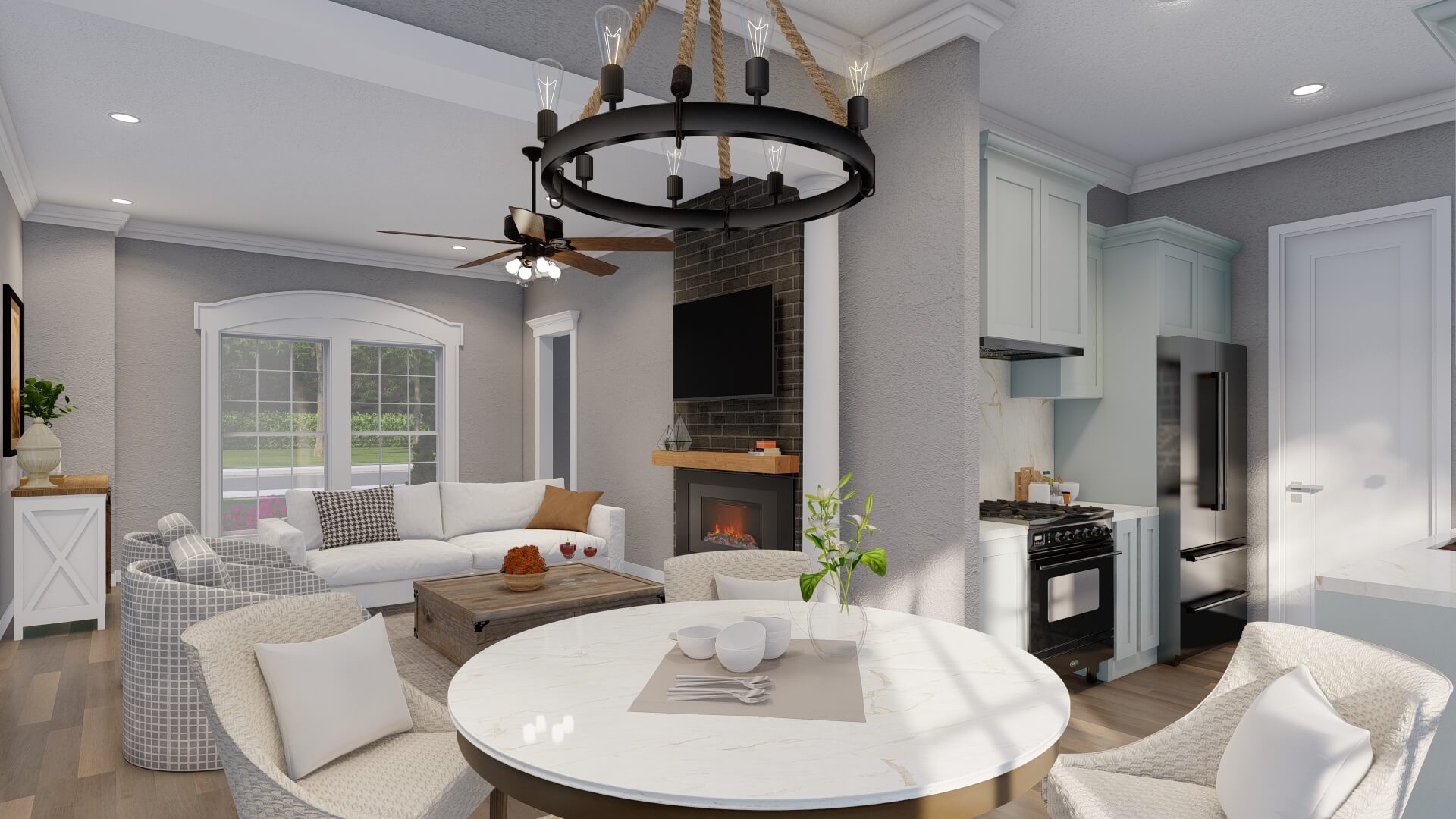

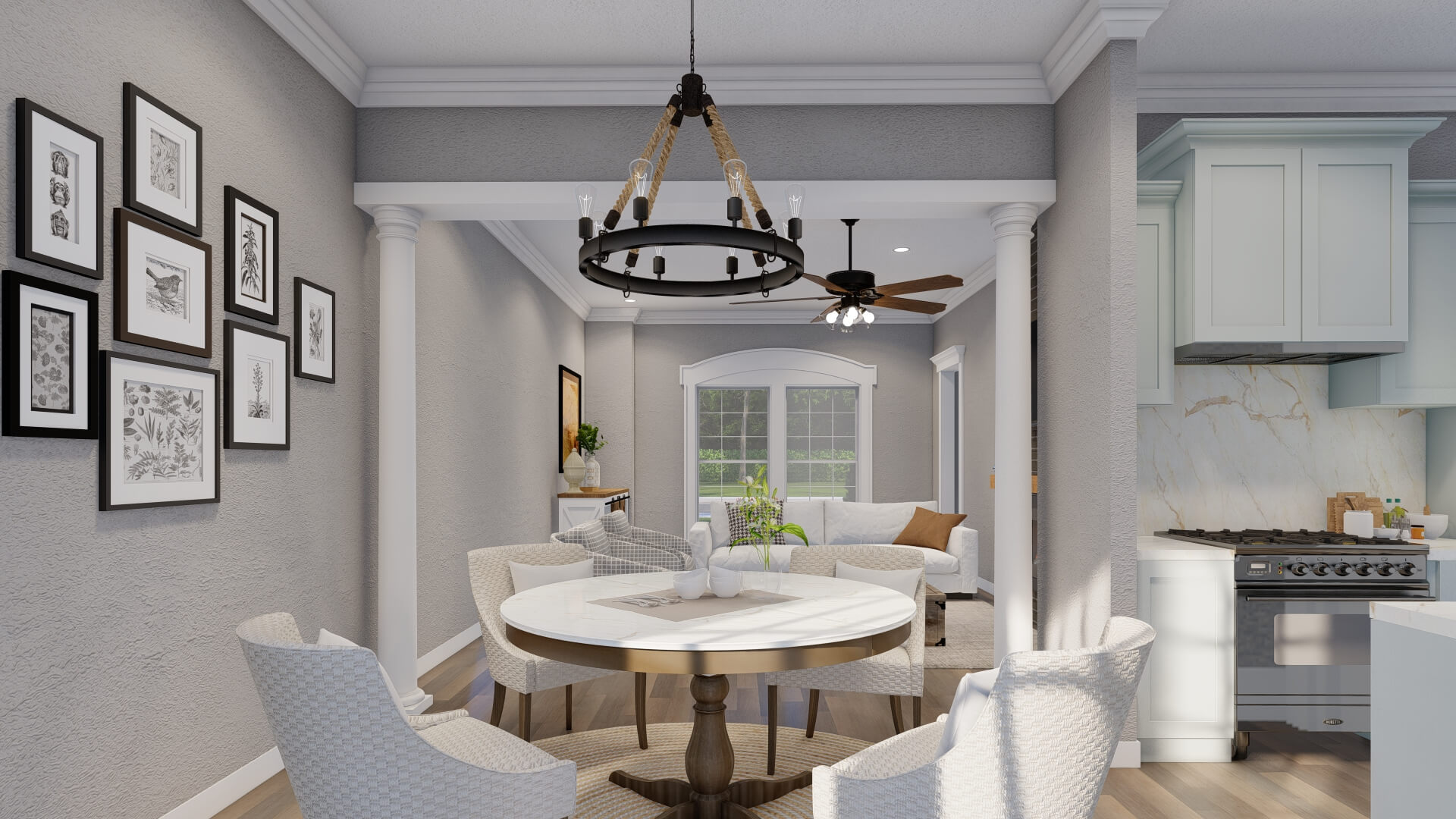

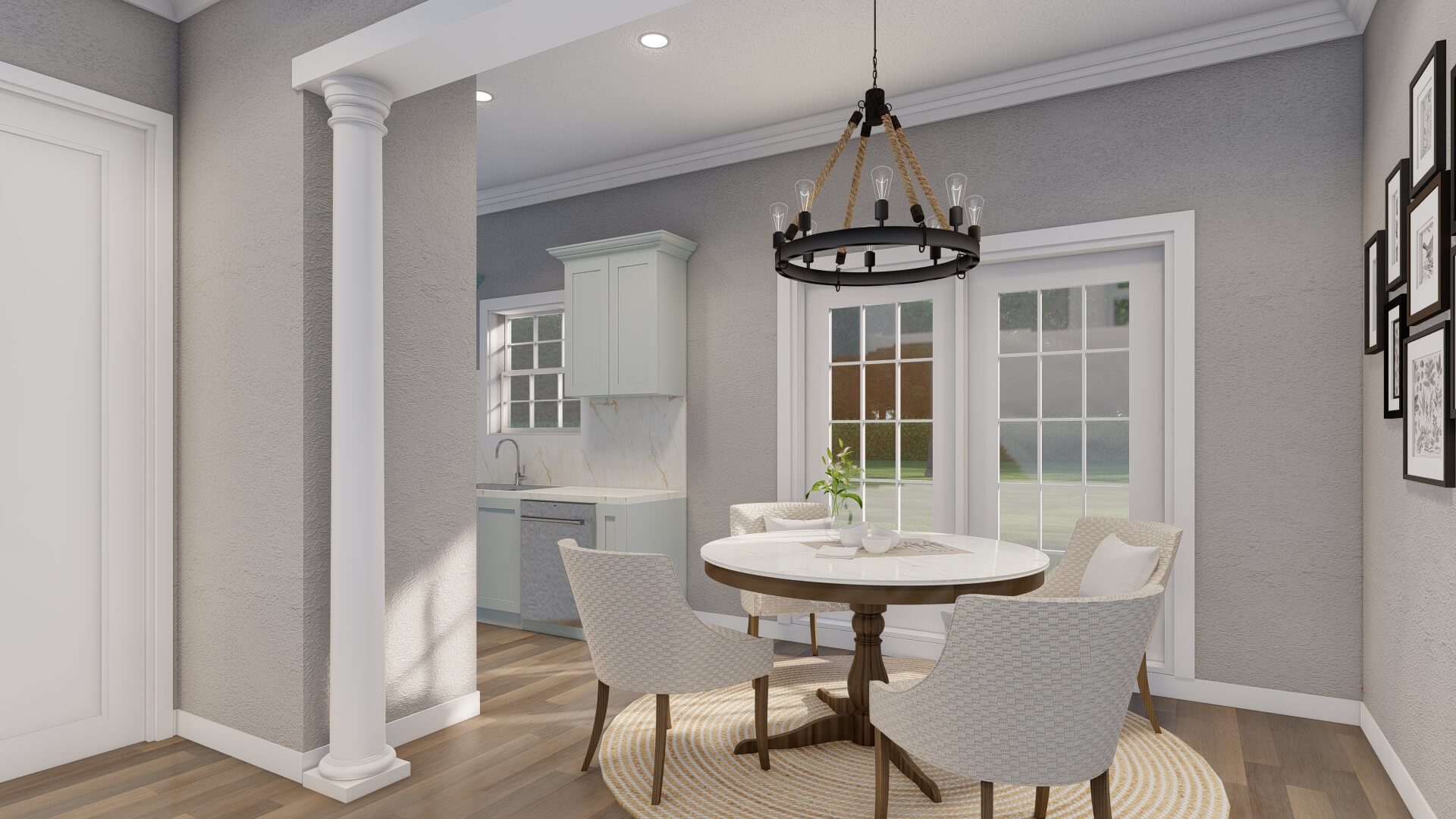

Four units come together to create this unique design from Nelson Design Group. The main floor of each home within Cambridge Court includes a generous great room area with fireplace. The dining room is merely separated from the great room by columns, creating an airy, open feel. A step-saver kitchen adjoins to a functional laundry room, completing the main level of each home. The upper floor of each unit houses a large master suite, as well as a second bedroom and bath.

Customizing This House Plan

Make this house plan into your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experienced house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: info@nelsondesigngroup.com or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.


Specifications

  • Total Living Space:1286Sq.Ft.
  • Main Floor: 664 Sq.Ft
  • Upper Floor (Sq.Ft.): 622 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 13 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1299 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
