House Plan 1117B Brittany Lane, Traditional House Plan

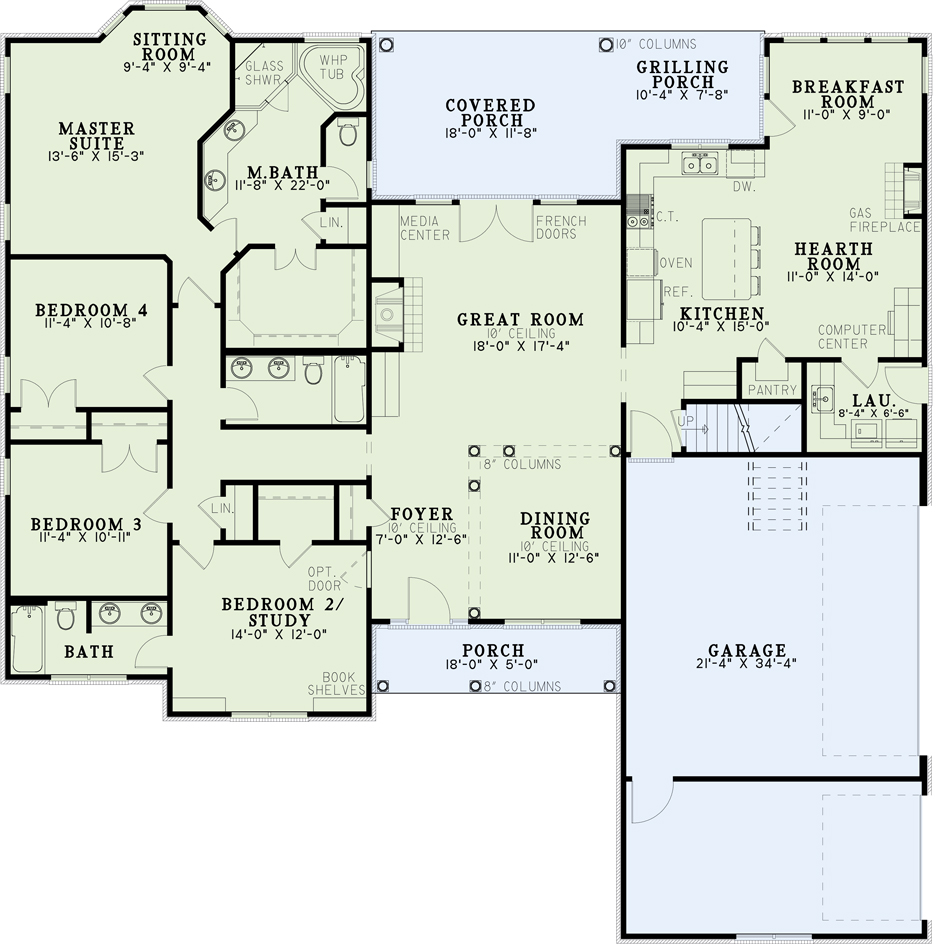

House Plan NDG 1117B Main Floor

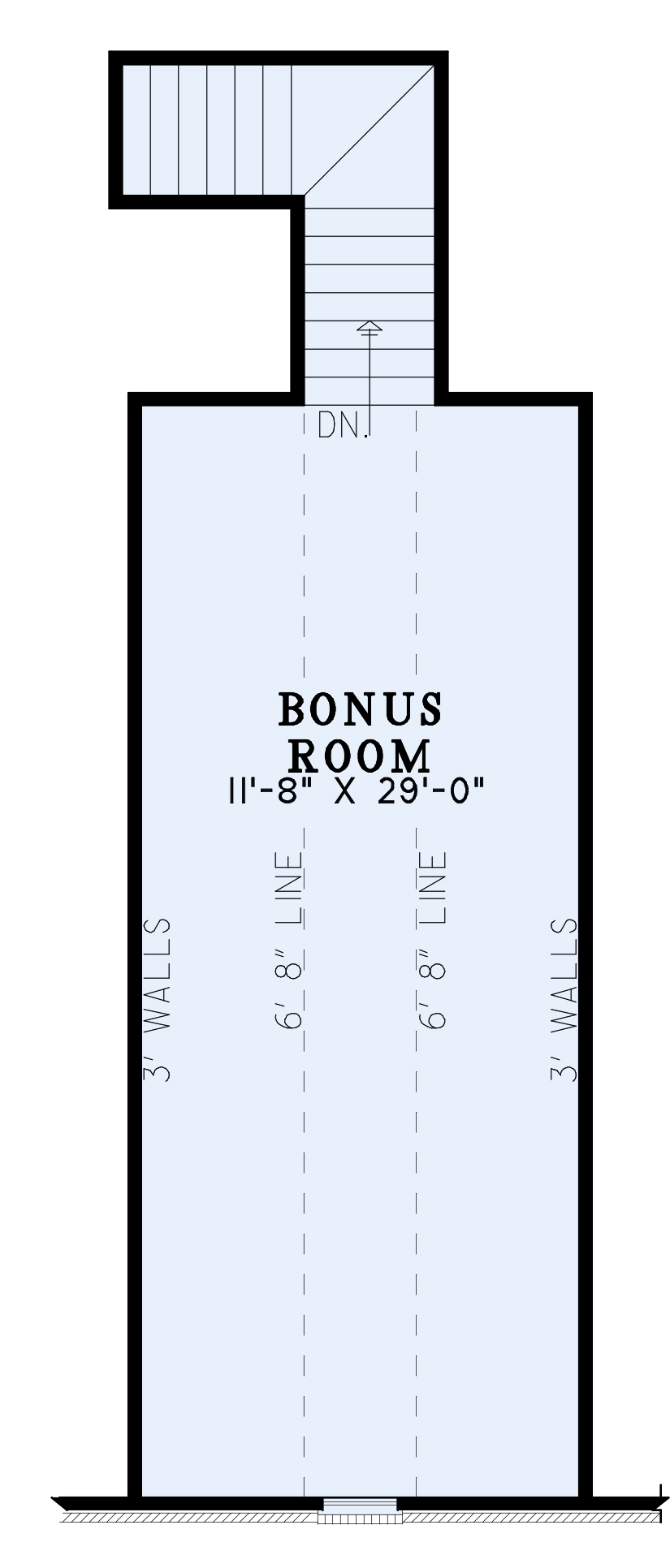

House Plan NDG 1117B Bonus Room
House Plan NDG 1117B Main Floor
House Plan NDG 1117B Bonus Room

Floor plans

NDG 1117B

House Plan 1117B Brittany Lane, Traditional House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 1117B
  • Total Living Space:2405Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 66
  • Width In.: 4
  • Depth Ft.: 67
  • Depth In.: 2

Description

This Southern Traditional home is perfect for a family. With 4 bedrooms, a great room with a fireplace, and a dining room with columns. The master suite has a sitting area, large walk-in closet, and a large bathroom with a corner whirlpool and corner glass shower. The kitchen has an island bar and a breakfast room and hearth room with a fireplace and a computer center. Also features a covered porch and grilling porch and a bonus room upstairs.

Specifications

  • Total Living Space:2405Sq.Ft.
  • Main Floor: 2405 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 358 Sq.Ft.
  • Porch (Sq.Ft.): 393 Sq.Ft.
  • Garage (Sq.Ft.): 762 Sq.Ft.
  • Total Square Feet: 3918 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
