House Plan 1133 La Rocca, Tuscany Village House Plan

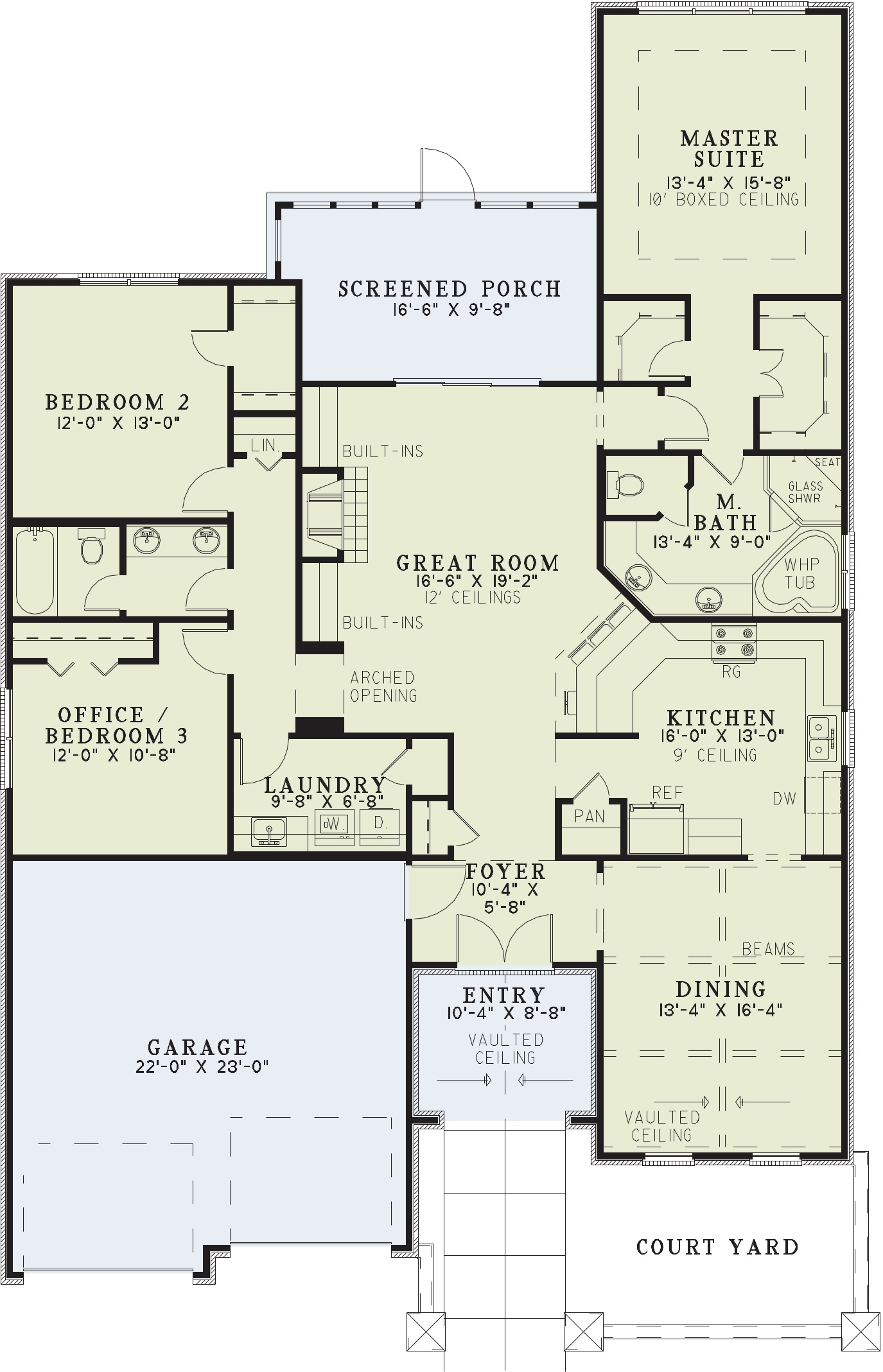

House Plan NDG 1133 Main Floor
House Plan NDG 1133 Main Floor

Floor plans

NDG 1133

House Plan 1133 La Rocca, Tuscany Village House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 1133
  • Total Living Space:1943Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 47
  • Width In.: N/A
  • Depth Ft.: 75
  • Depth In.: N/A


Each time I see a home built of stone, I think of castles. And like most young girls I longed to live in a castle on a hill. This design reminds me of the summer I met an Italian boy named Antonio who lived with his family in an Italian country home they called La Rocca? "the fortress". The same colors of stone are reflected in this design….bringing back wonderful youthful memories.


  • Total Living Space:1943Sq.Ft.
  • Main Floor: 1943 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 261 Sq.Ft.
  • Garage (Sq.Ft.): 509 Sq.Ft.
  • Total Square Feet: 2713 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Tile
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 1
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
