House Plan 1135 Tavolozza, Tuscany Village House Plan

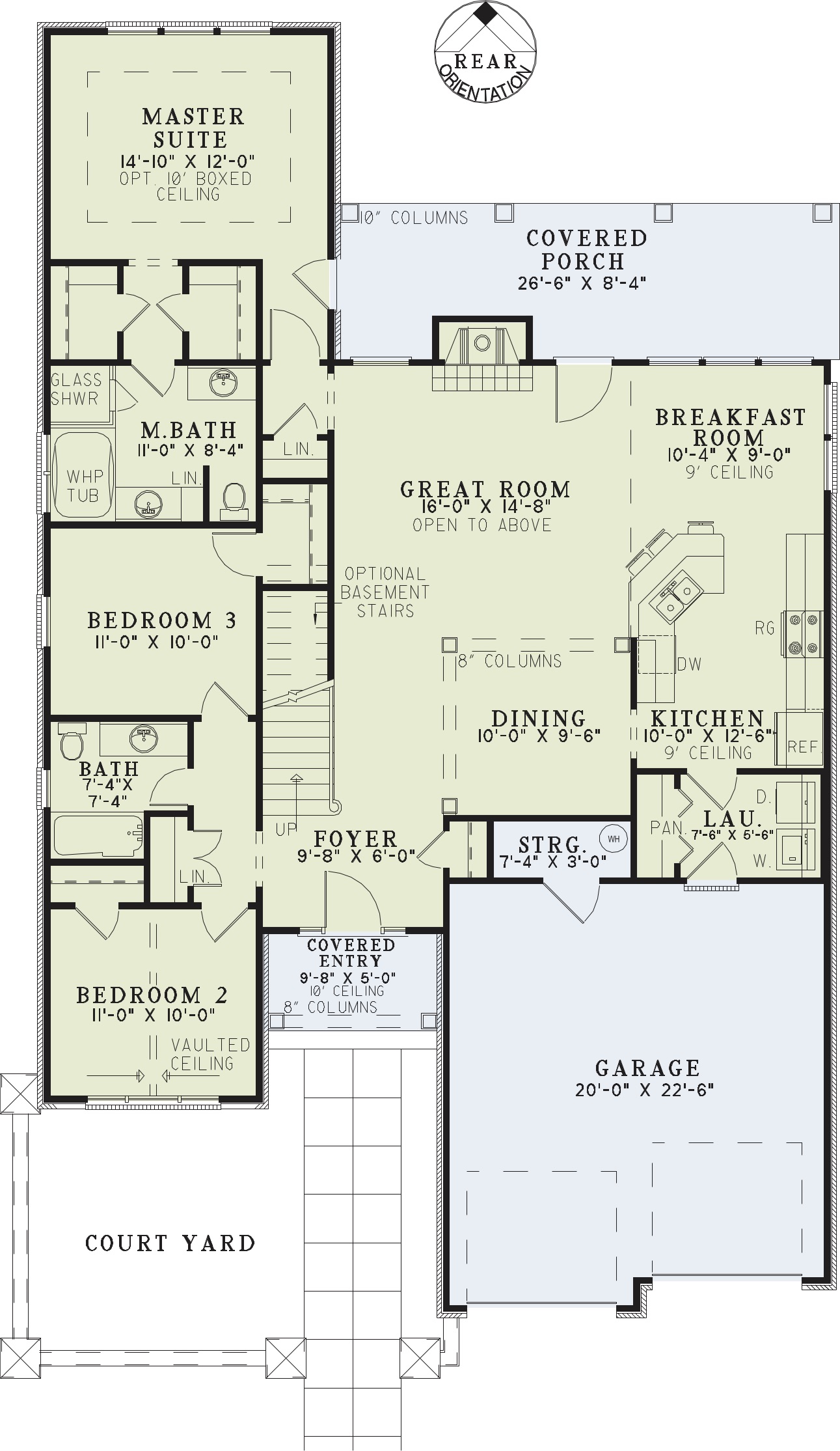

House Plan NDG 1135 Main Floor

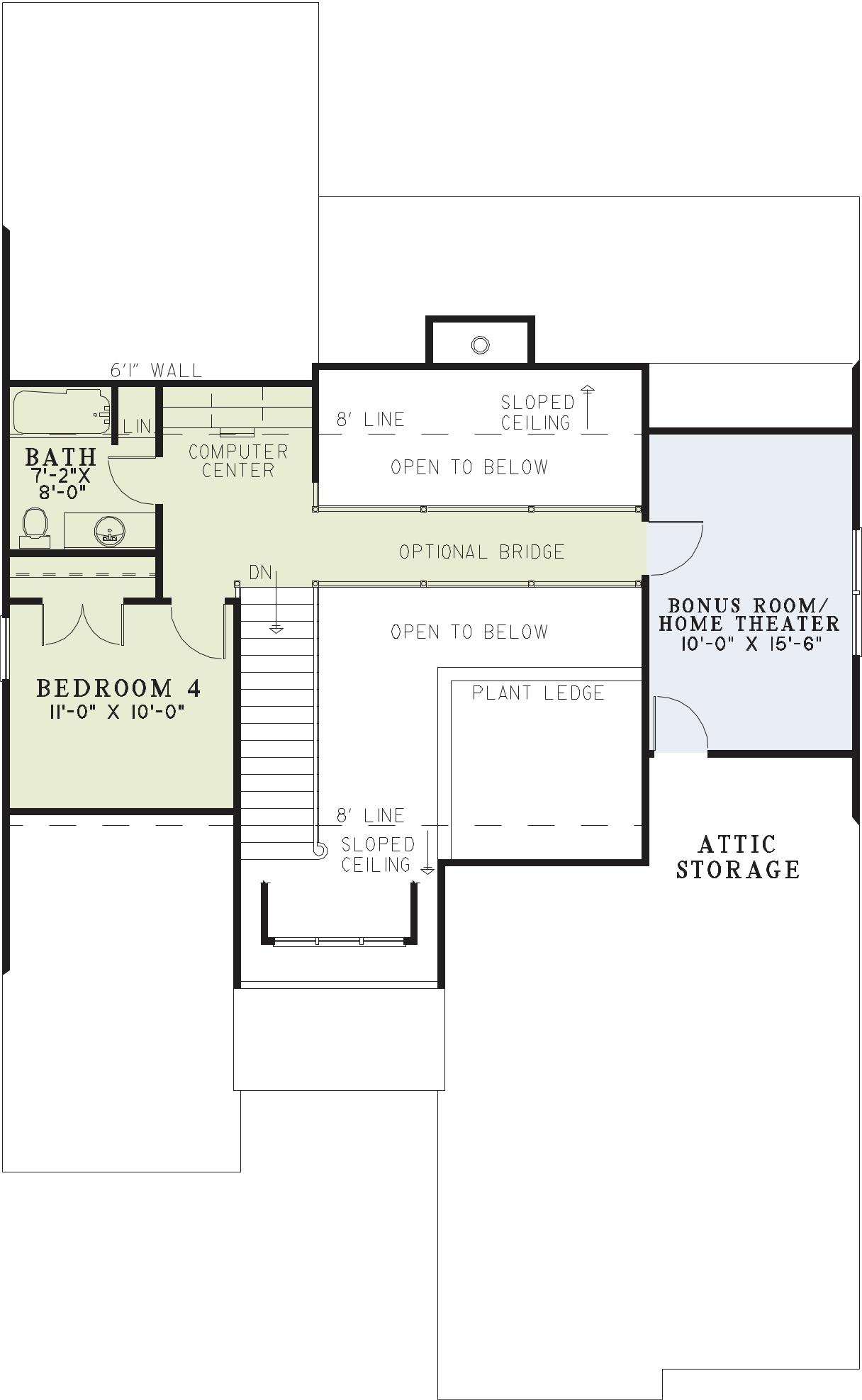

House Plan NDG 1135 Upper Floor
House Plan NDG 1135 Main Floor
House Plan NDG 1135 Upper Floor

Floor plans

NDG 1135

House Plan 1135 Tavolozza, Tuscany Village House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 1135
  • Total Living Space:1875Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 44
  • Width In.: 3
  • Depth Ft.: 72
  • Depth In.: N/A

Description

Stones in shades of clay, sage and wheat in this design are the same colors the artist used in a painting we bought in Italy. My mother was always taking us through the villages to find just the right one for her collection. The artist named it Tavolozza meaning "the painting board". I remember seeing this exact house on a hill so full of color yet it gently blended with its surroundings.

Specifications

  • Total Living Space:1875Sq.Ft.
  • Main Floor: 1588 Sq.Ft
  • Upper Floor (Sq.Ft.): 287 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 233 Sq.Ft.
  • Porch (Sq.Ft.): 280 Sq.Ft.
  • Garage (Sq.Ft.): 480 Sq.Ft.
  • Total Square Feet: 2868 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Tile
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
