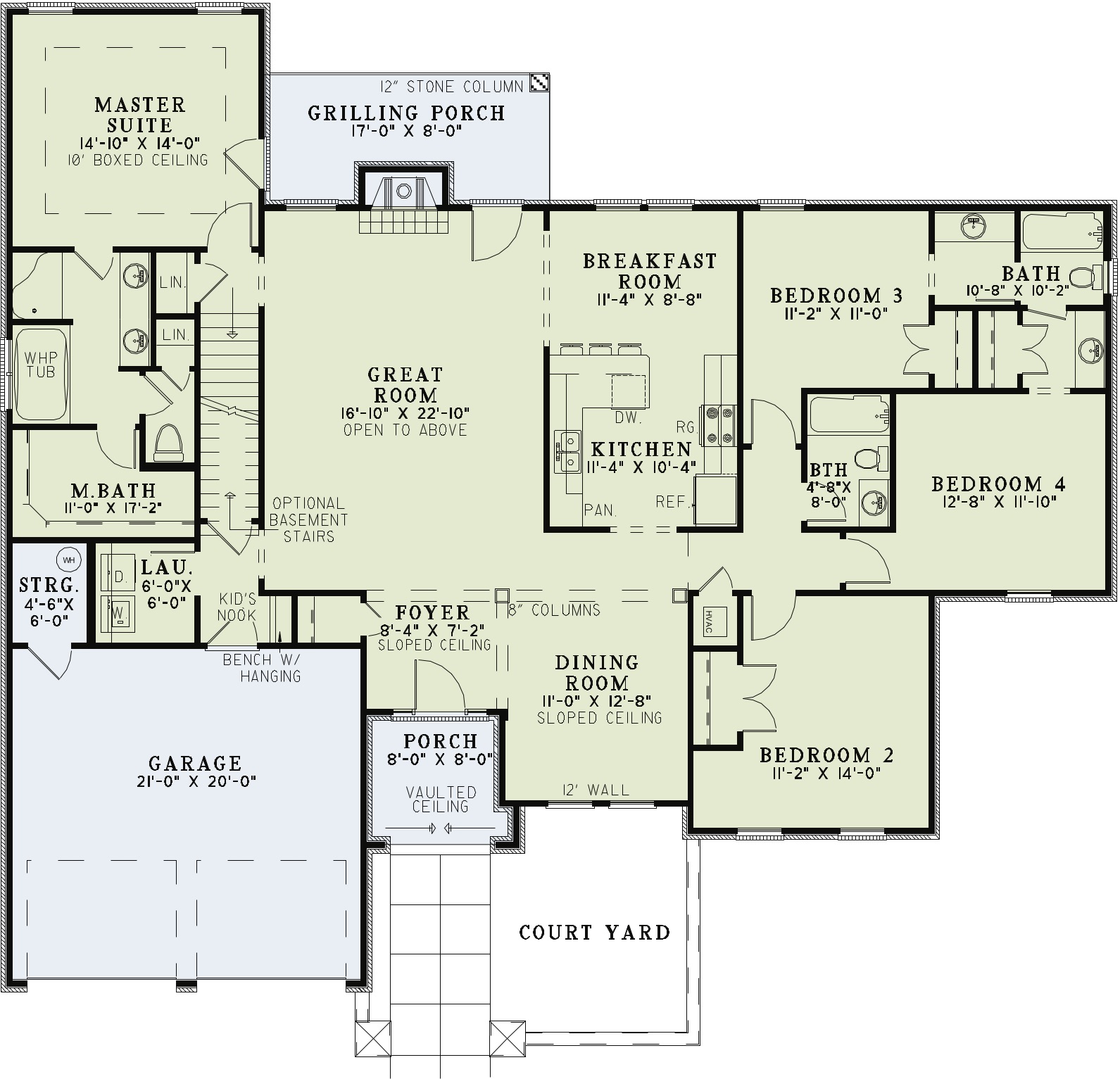

House Plan NDG 1138 Main Floor

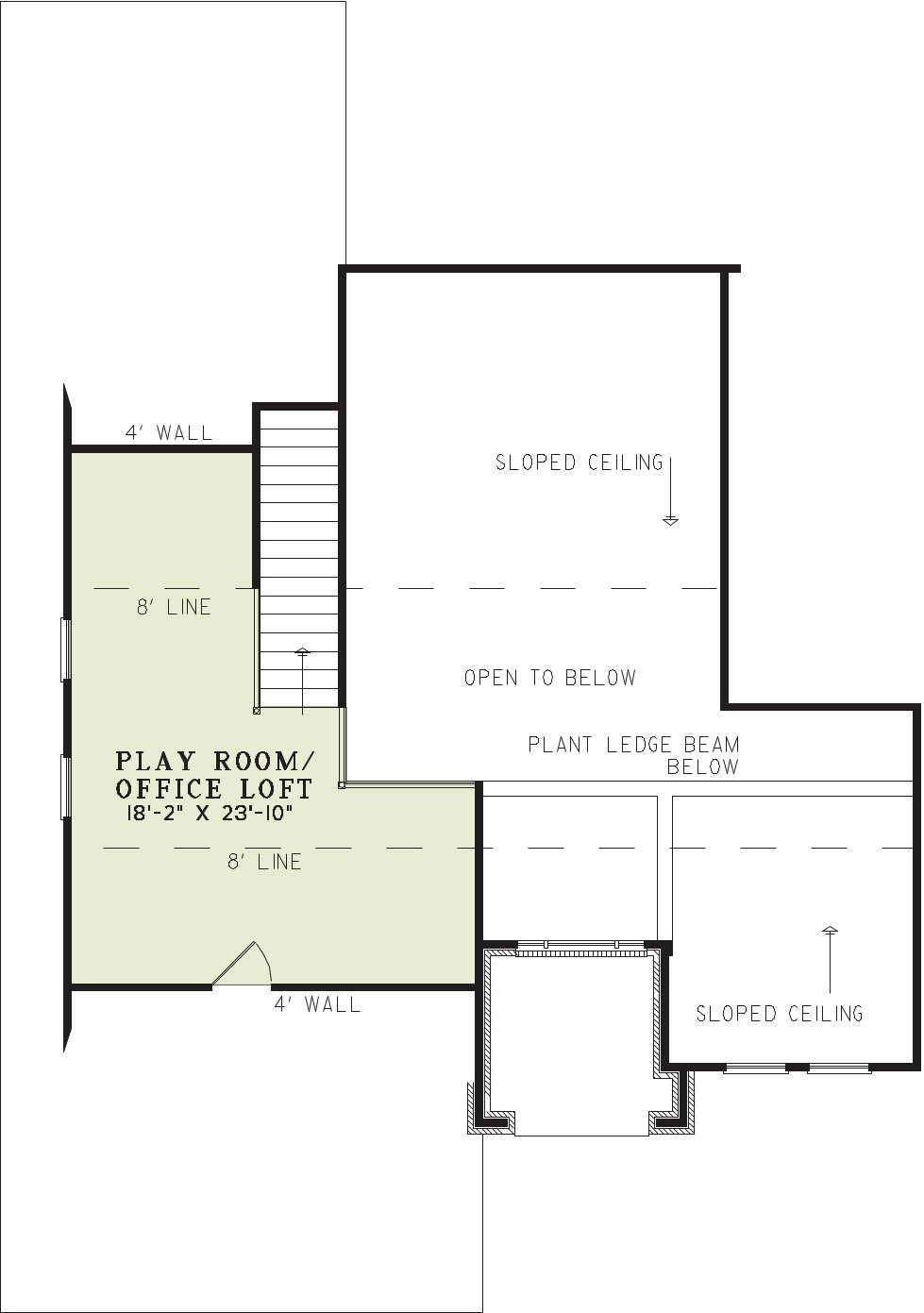

House Plan NDG 1138 Upper Floor
Beds
  • Beds
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
Baths
  • Baths
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
Garage
  • Garage
  • No
  • Yes
  • 1 Bay
  • 2 Bay
  • 3 Bay
  • 4 Bay
  • 5 Bay
  • 6 Bay
  • Other
Stories
  • Stories
  • 1
  • 1.5
  • 2
  • 2.5
  • 3
  • 4
  • 5

Floor plans

NDG 1138

House Plan 1138 Siena, Tuscany Village House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 1138
  • Total Living Space:2507Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 66
  • Width In.: 6
  • Depth Ft.: 63
  • Depth In.: N/A

Description

Specifications

  • Total Living Space:2507Sq.Ft.
  • Main Floor: 2186 Sq.Ft
  • Upper Floor (Sq.Ft.): 321 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 204 Sq.Ft.
  • Garage (Sq.Ft.): 482 Sq.Ft.
  • Total Square Feet: 3193 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Tile
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
