House Plan 1231 The Bancroft, European House Plan

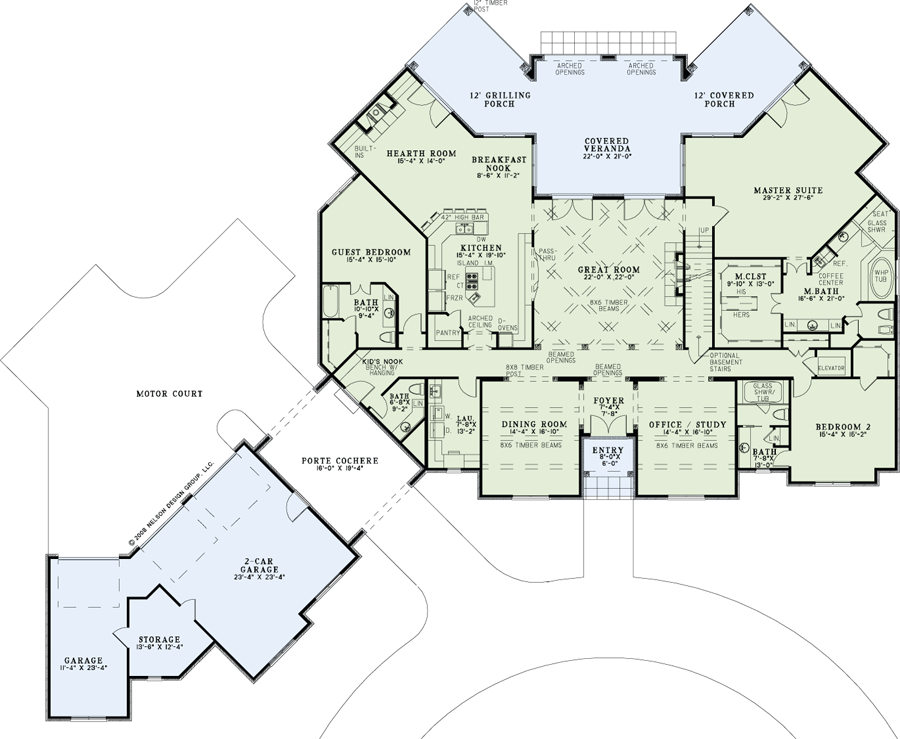

House Plan NDG 1231 Main Floor

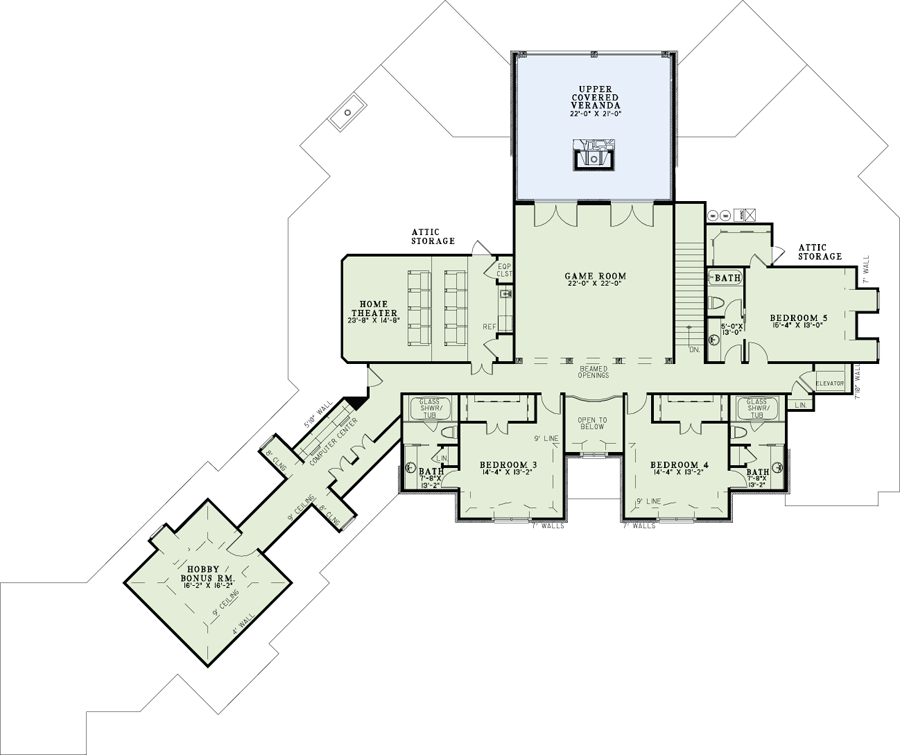

House Plan NDG 1231 Upper Floor
House Plan NDG 1231 Main Floor
House Plan NDG 1231 Upper Floor

Floor plans

NDG 1231

House Plan 1231 The Bancroft, European House Plan

PDF: $2,850.00

Plan Details

  • Plan Number: NDG 1231
  • Total Living Space:6696Sq.Ft.
  • Bedrooms: 6
  • Full Baths: 6
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Angled Garage
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 125
  • Width In.: 6
  • Depth Ft.: 105
  • Depth In.: 3

Description

One word to describe this European style home is luxurious, another would be massive. This home is filled with amenities and luxuries throughout. The massive great room has a crisscross diagonal pattern of exposed timber beams in the ceiling and a huge fireplace. 2 sets of French doors open to an incredible covered veranda. Relaxation is guaranteed in your enormous master suite with a windowed corner and private access to a covered porch. That relaxing continues into the master bathroom where you’ll find a raised whirlpool tub, a large corner glass shower with seating and an enormous walk-in closet with his and hers sides. The master bathroom even has a coffee center to help you get going in the morning. The kitchen is a cook’s dream with a separate refrigerator and freezer, double ovens, large island with a cook top, additional sink, and an ice maker. Plenty of counter top and the large pass-thru to the great room make this perfect for entertaining. A hearth room is open to the kitchen and has a fireplace, built-ins, a breakfast area, and access to a grilling porch. Guests are sure to enjoy their bedroom which features a unique 45 degree angle design, a full bathroom, and a walk-in closet. Entertaining will be easy upstairs as well in the huge game room and continues through the 2 sets of French doors out onto the upper covered veranda featuring a fireplace. You can take pride when you show off the incredible home theater with stadium seating. 3 more bedrooms are also upstairs, each one with ample walk-in closets and full bathrooms. Down a corridor that features a computer center and more closet space is a hobby/bonus room over the garage. Last but definitely least, this house even has an elevator!

Specifications

  • Total Living Space:6696Sq.Ft.
  • Main Floor: 4140 Sq.Ft
  • Upper Floor (Sq.Ft.): 2558 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 289 Sq.Ft.
  • Porch (Sq.Ft.): 1410 Sq.Ft.
  • Garage (Sq.Ft.): 1342 Sq.Ft.
  • Total Square Feet: 9739 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 16:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 38
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
