House Plan 1271 South Ridge, Rustic House Plan

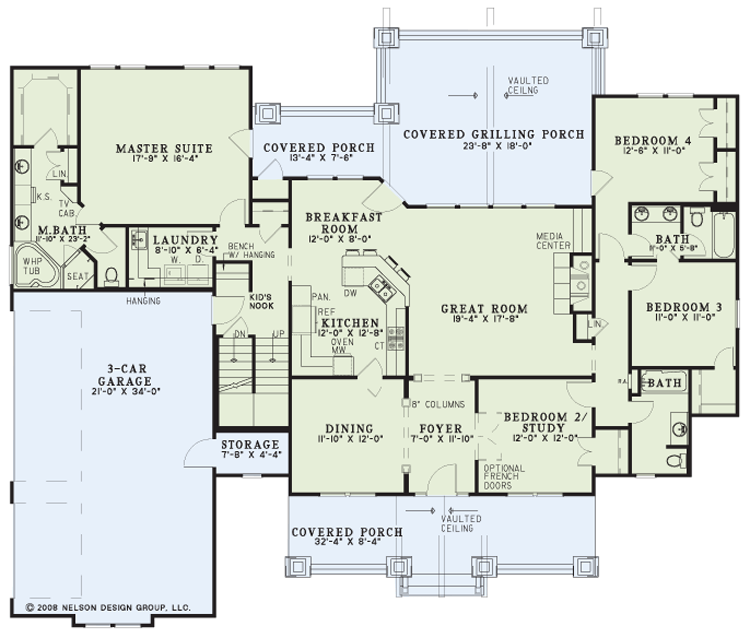

House Plan NDG 1271 Main Floor

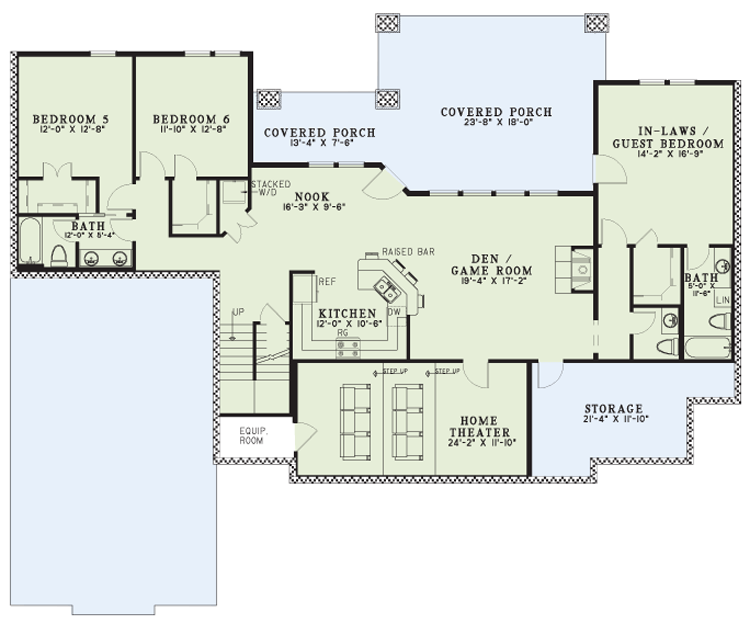

House Plan NDG 1271 Basement

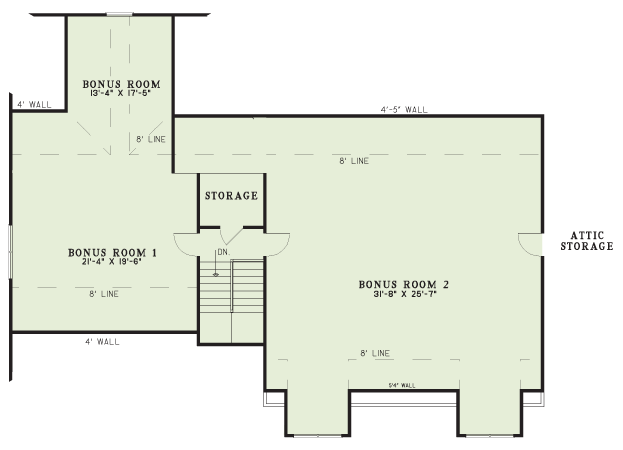

House Plan NDG 1271 Upper Floor
House Plan NDG 1271 Main Floor
House Plan NDG 1271 Basement

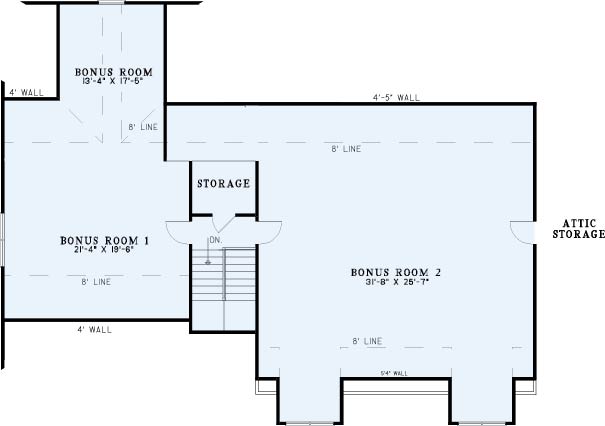

House Plan NDG 1271 Upper Floor

Floor plans

NDG 1271

House Plan 1271 South Ridge, Rustic House Plan

PDF: $2,050.00

Plan Details

  • Plan Number: NDG 1271
  • Total Living Space:4693Sq.Ft.
  • Bedrooms: 7
  • Full Baths: 5
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 76
  • Width In.: 10
  • Depth Ft.: 62
  • Depth In.: 8

Description

This rustic stone and siding home features impressive timber detailing and a striking rear exterior with both a covered porch and an upper covered deck. Inside this split-bedroom home, the great room features a fireplace and media center and is open to the kitchen and breakfast room. The master suite has a private access to the covered porch and the door to the bath is at a 45 degree angle. The master bath features a large corner whirlpool tub under a window and a corner shower with a seat and also has double vanities and a large walk-in closet. On the opposite side of the house are 2 bedrooms and 2 full bathrooms. You’ll entertain for sure downstairs with the full kitchen open to the den/game room that has a fireplace. Off of the den is an incredible home theater complete with stadium seating. 2 additional bedrooms are also downstairs that each have walk-in closets and share a full bathroom. There’s also a closet nearby that holds a convenient stacked washer/dryer. In-laws or guests will feel at home in their quarters on the opposite side which features a walk-in closet, a private full bathroom, and private access to the covered porch. And the third floor offers 2 enormous bonus rooms that have all kinds of potential.

Specifications

  • Total Living Space:4693Sq.Ft.
  • Main Floor: 2373 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): 2320 Sq.Ft.
  • Bonus Room (Sq.Ft.): 1945 Sq.Ft.
  • Porch (Sq.Ft.): 1312 Sq.Ft.
  • Garage (Sq.Ft.): 783 Sq.Ft.
  • Total Square Feet: 8733 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
