House Plan 1286 Southbend, Rustic House Plan

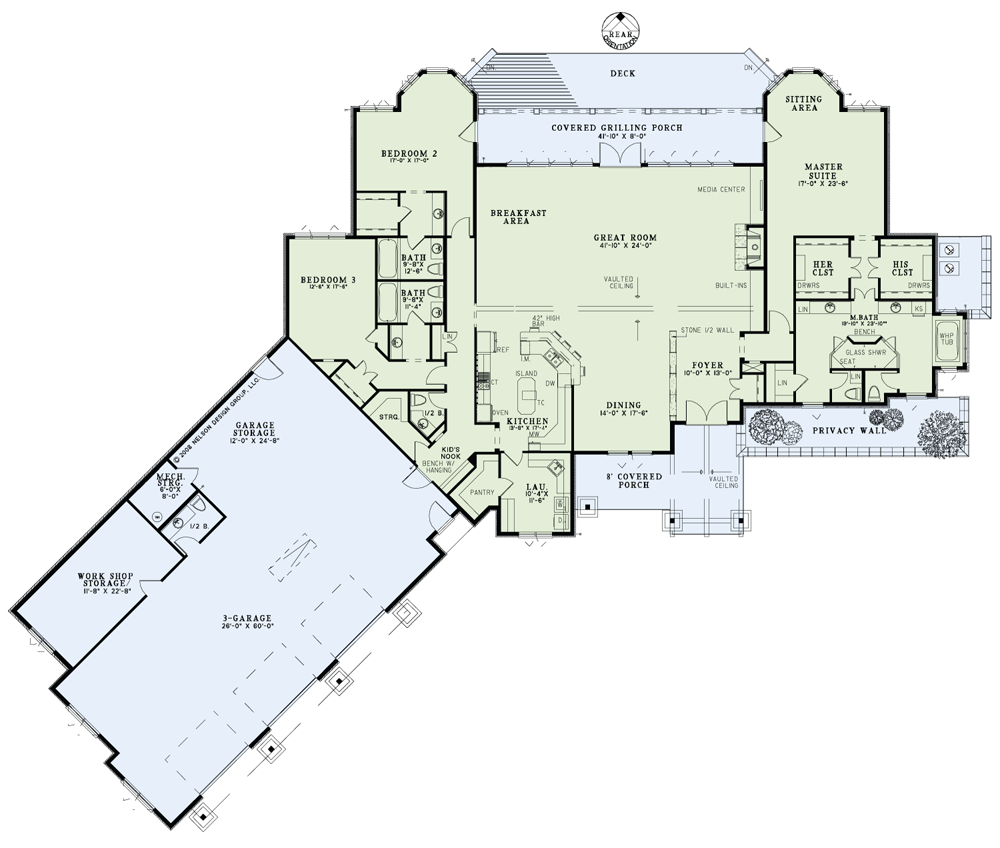

House Plan NDG 1286 Main Floor
House Plan NDG 1286 Main Floor

Floor plans

NDG 1286

House Plan 1286 Southbend, Rustic House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 1286
  • Total Living Space:4080Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: 2
  • Garage: Yes 3 Bay
  • Garage Type: Angled Garage
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 142
  • Width In.: 8
  • Depth Ft.: 110
  • Depth In.: 6


This , sprawling rustic home offers over 4,000 square feet of space. The impressive exterior welcomes you with its covered front porch and arched door and the massive 3-car garage that’s on a 45 degree angle and arched carriage style doors. Step inside this splendid home and the foyer guides you along a stone half wall into the great room that is truly great. With built-ins, a media center, fireplace and being open to the kitchen, breakfast area, and dining room, the great room is sure to be the gathering spot. Prepare to be in the lap of luxury when you retire to your master suite with a sitting area in a bay window and a private access to the covered grilling porch. Large his and hers closets are just outside the double doors to the master bath. In the master bath you’ll find a huge glass shower that has 2 seats and 2 entrances, each door being at a 45 degree angle. Off to the side is the recessed whirlpool tub. And there’s even a walk-in linen closet and 2 private toilets. Adjacent to the kitchen is a huge laundry room and a walk-in pantry. Bedrooms 2 and 3 each have walk-in closets and private full bathrooms. The 3-car garage has plenty of storage space and even has a work shop and a convenient half bathroom.


  • Total Living Space:4080Sq.Ft.
  • Main Floor: 4080 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 597 Sq.Ft.
  • Garage (Sq.Ft.): 2310 Sq.Ft.
  • Total Square Feet: N/A
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
