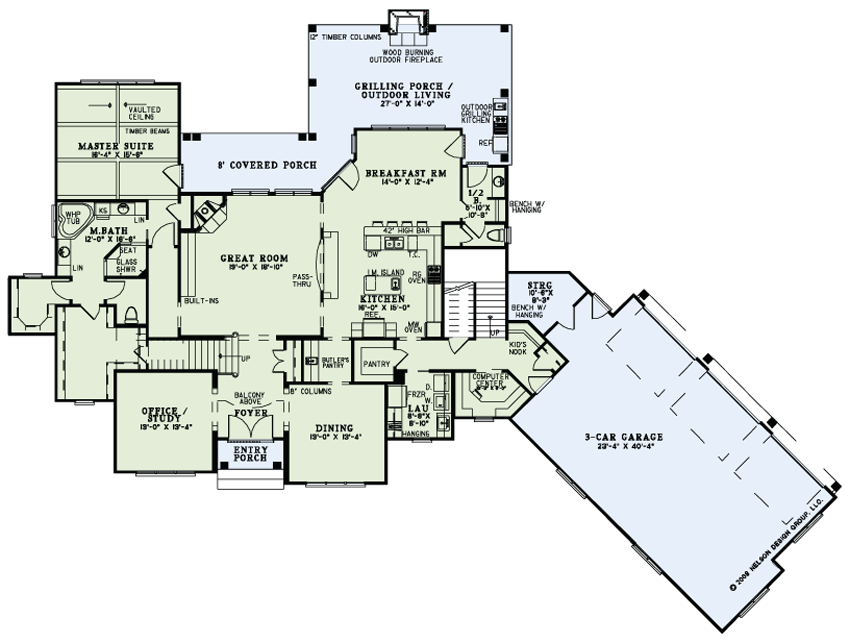

House Plan NDG 1287 Main Floor

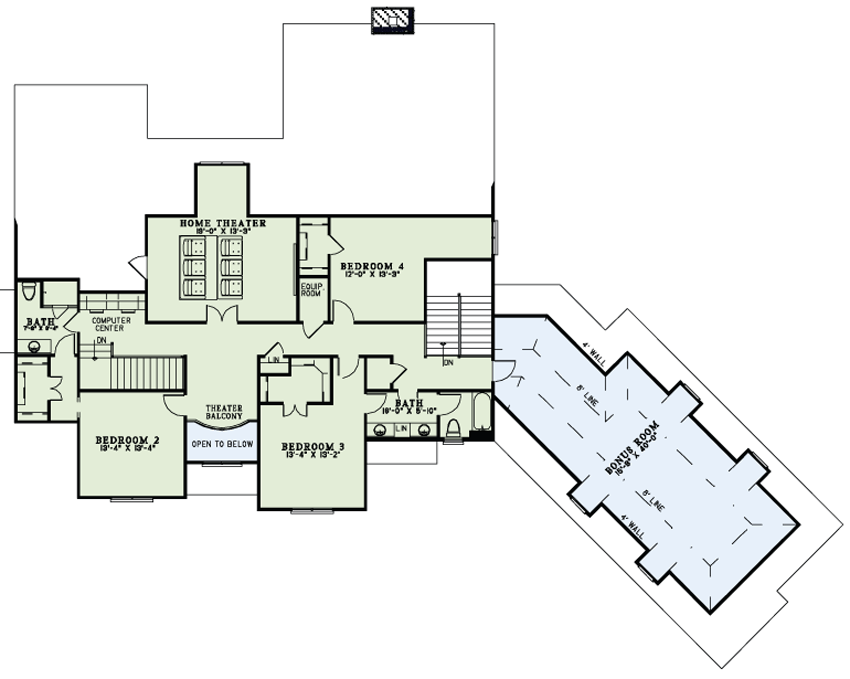

House Plan NDG 1287 Upper Floor
House Plan NDG 1287 Main Floor
House Plan NDG 1287 Upper Floor

Floor plans

NDG 1287

House Plan 1287 Evania Place, European House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: NDG 1287
  • Total Living Space:4378Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Angled Garage
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 112
  • Width In.: 2
  • Depth Ft.: 84
  • Depth In.: 2

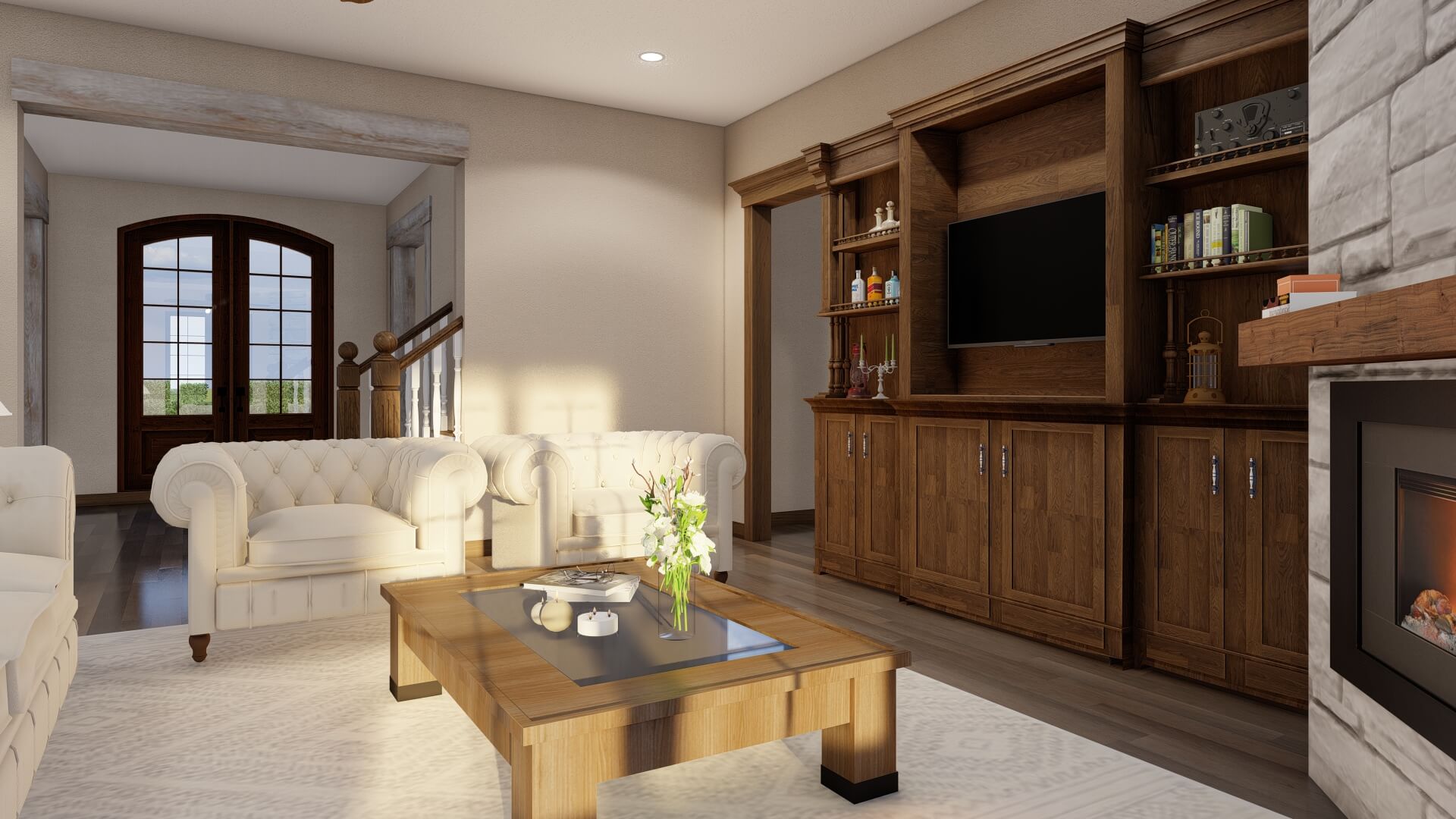

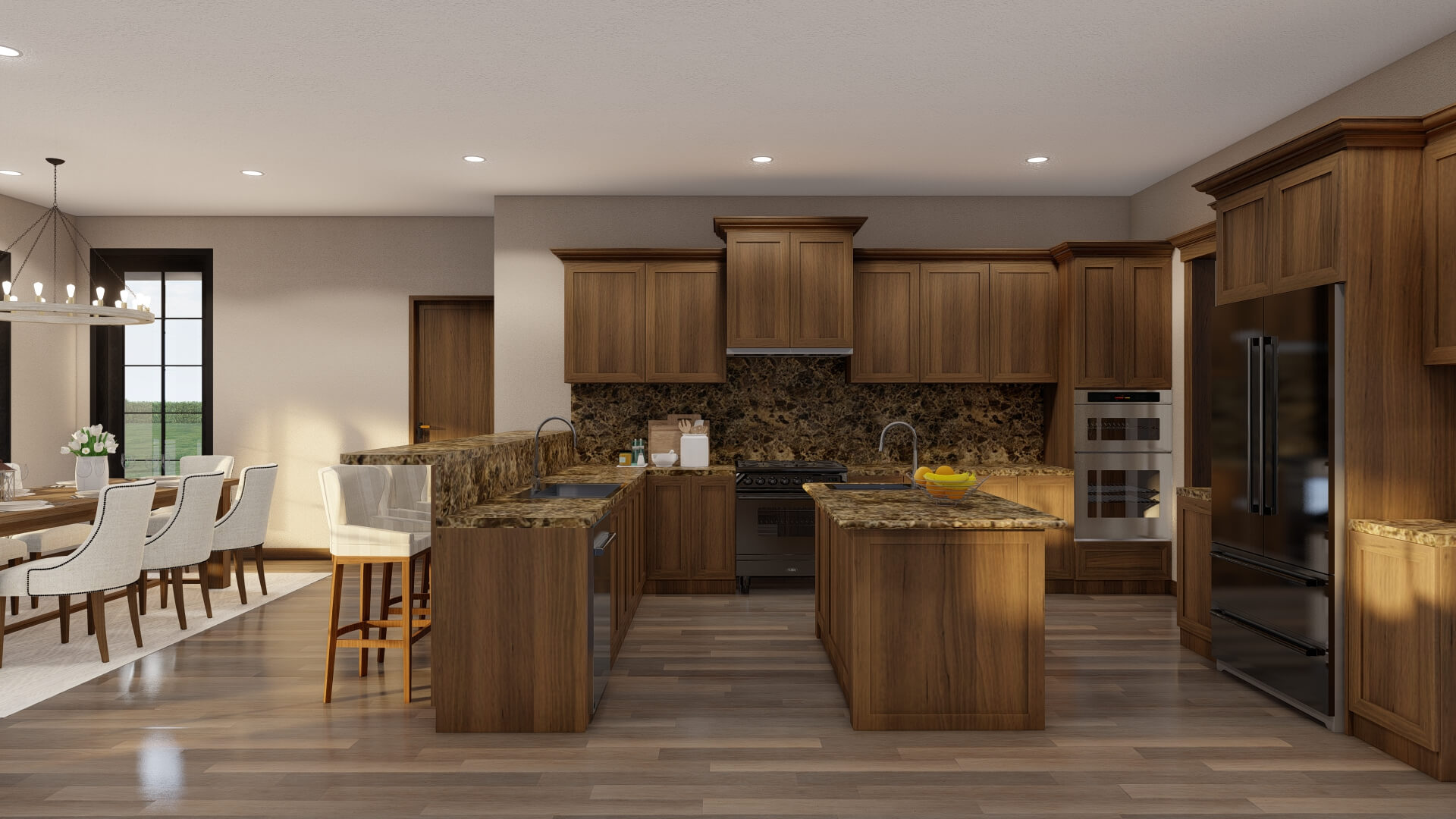

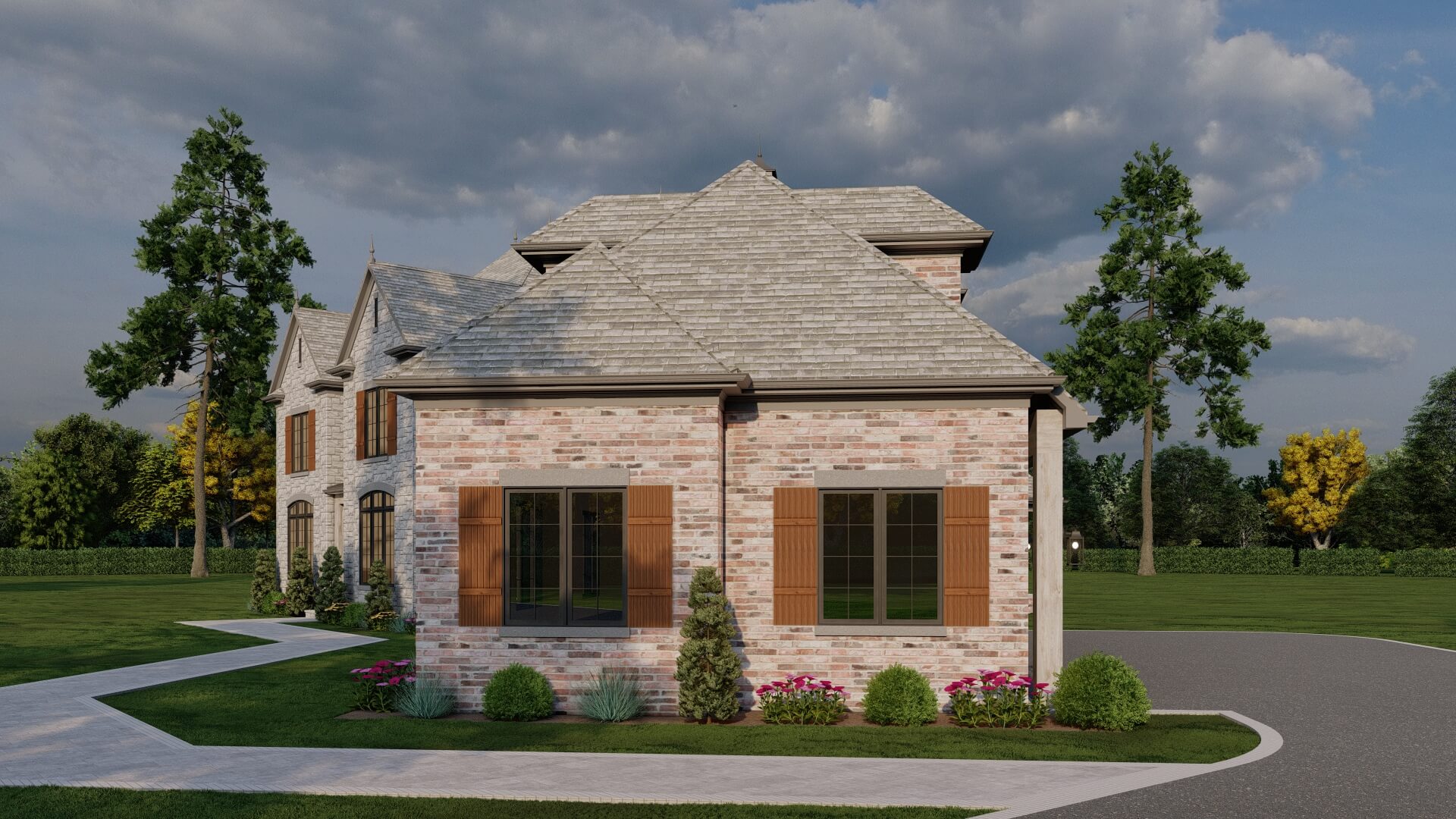

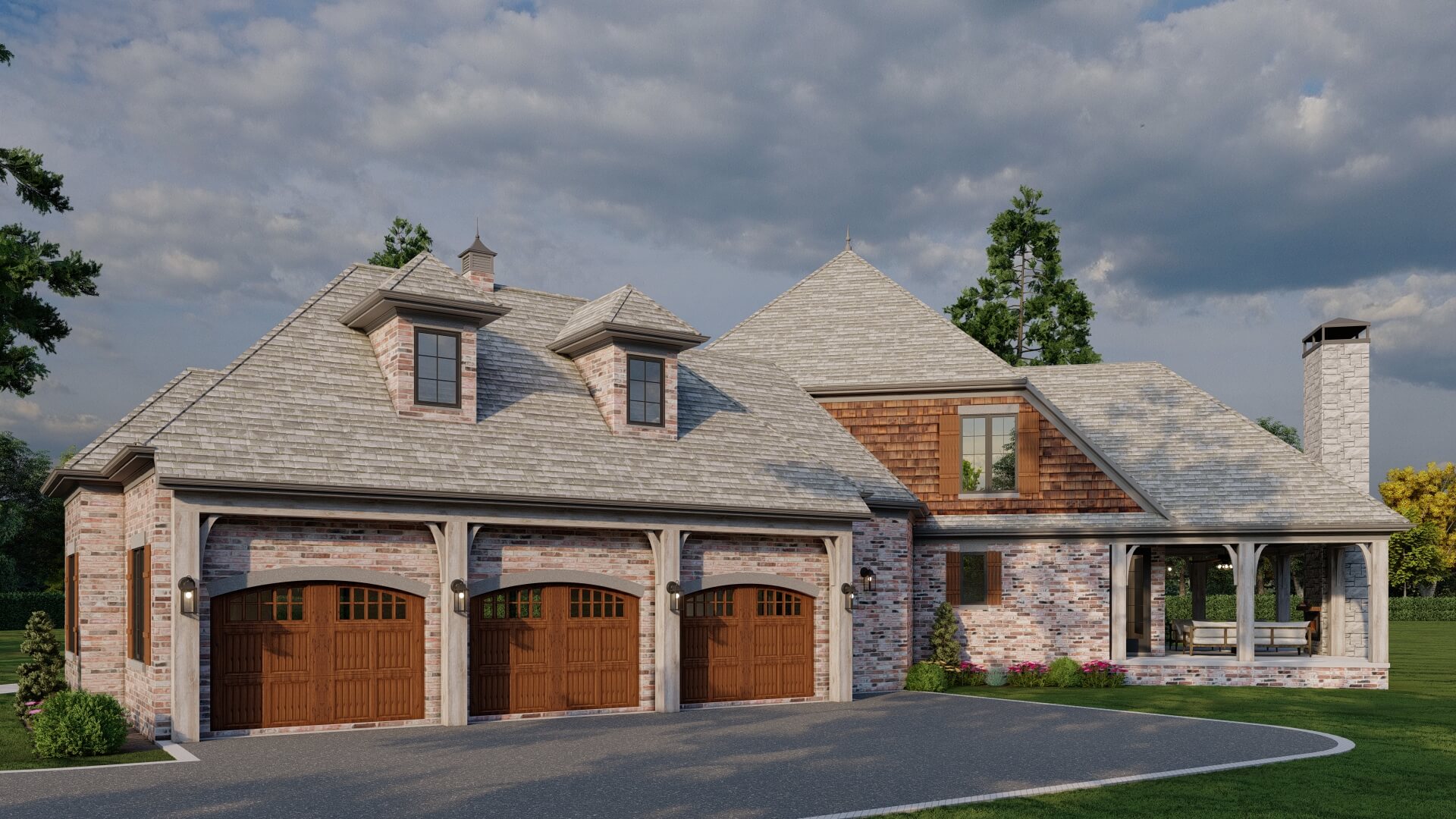

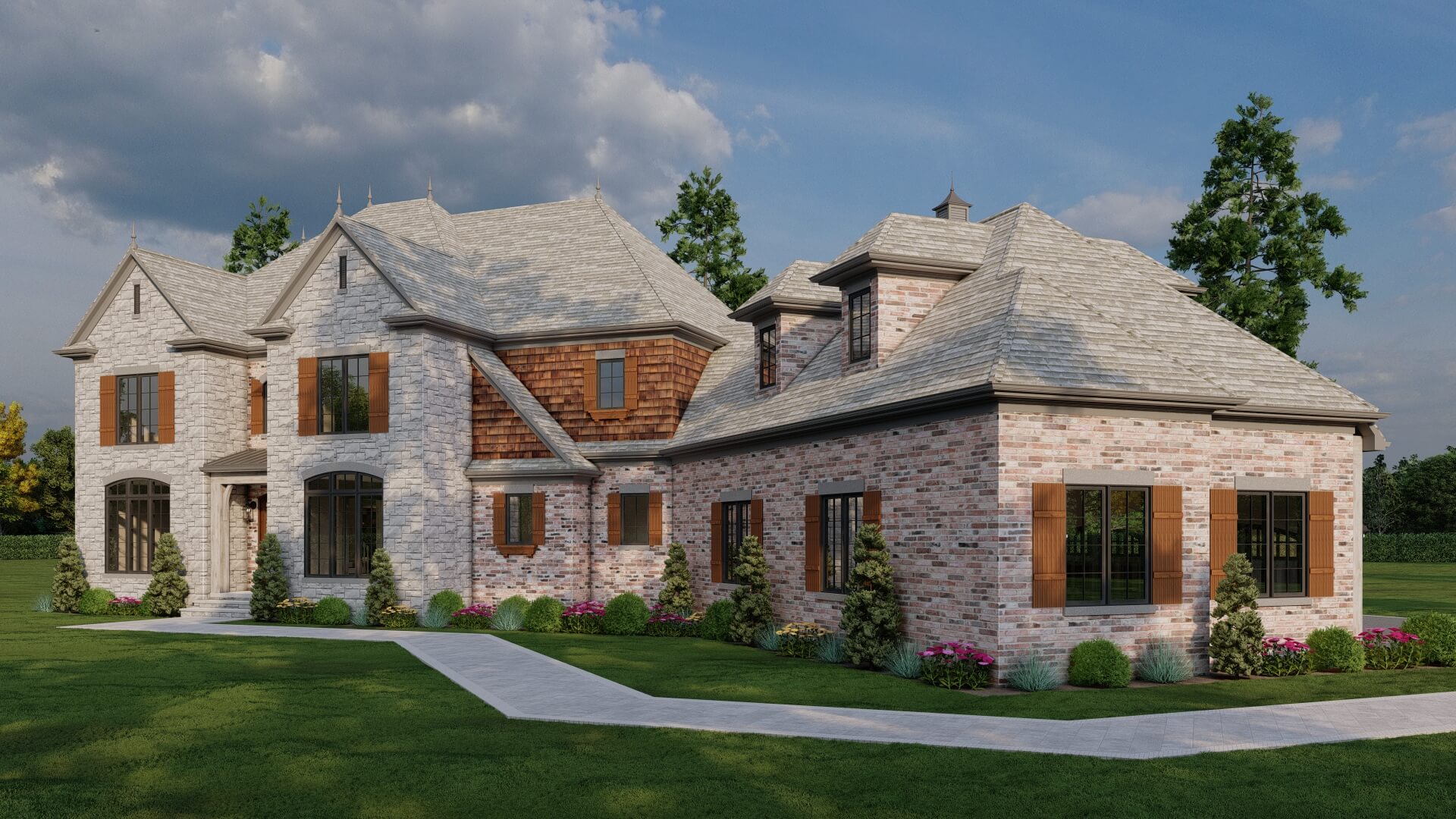

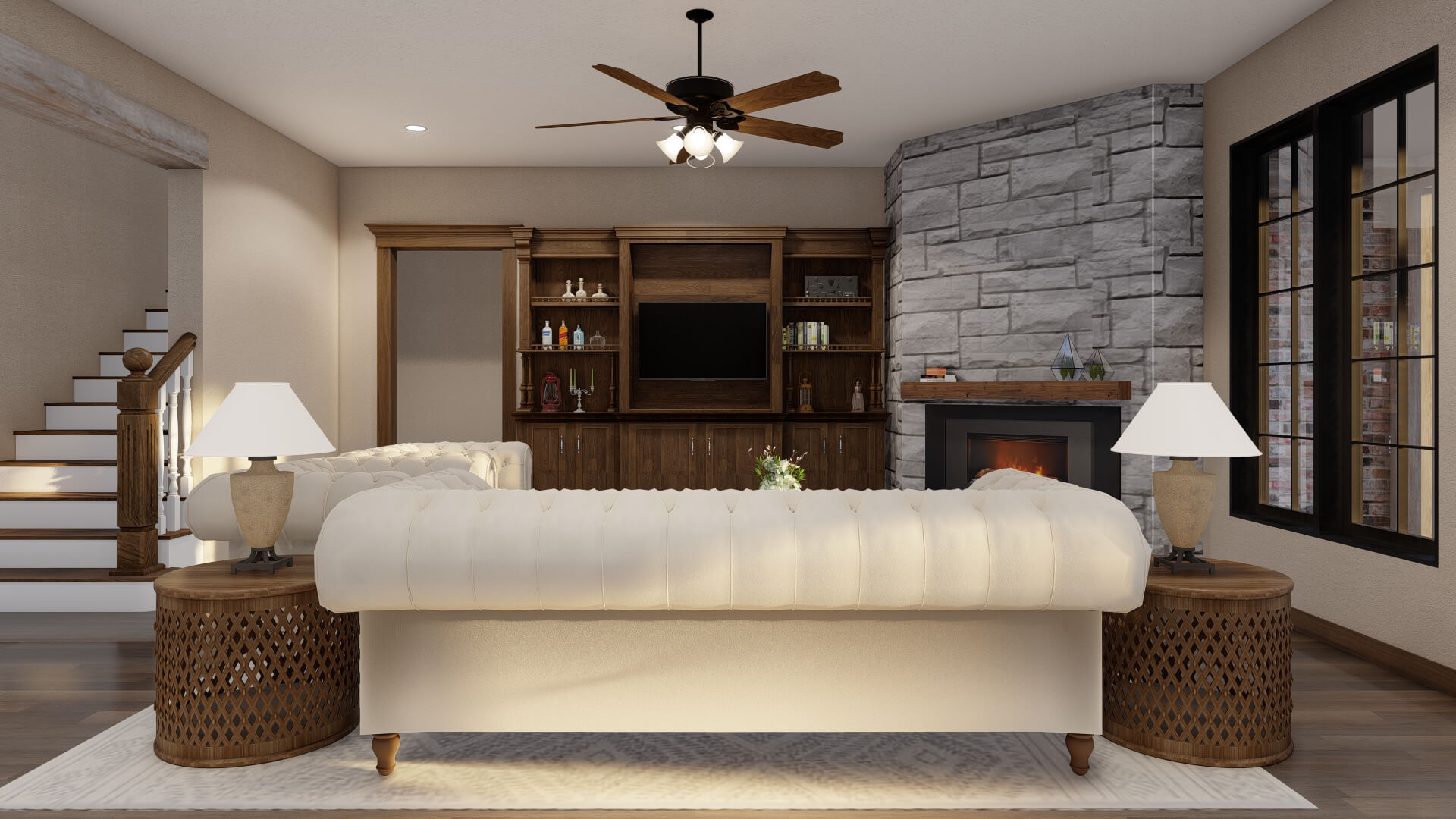

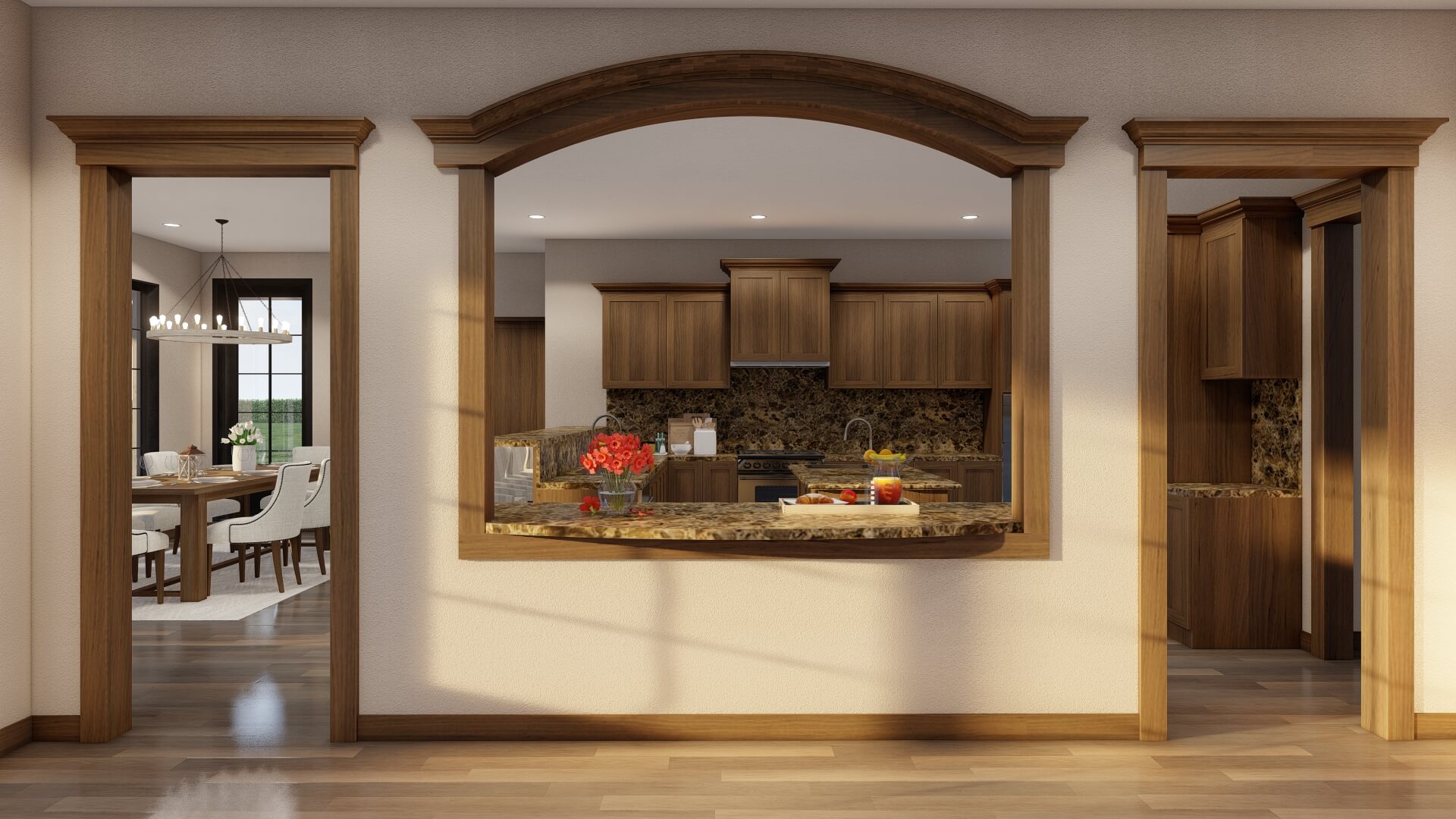

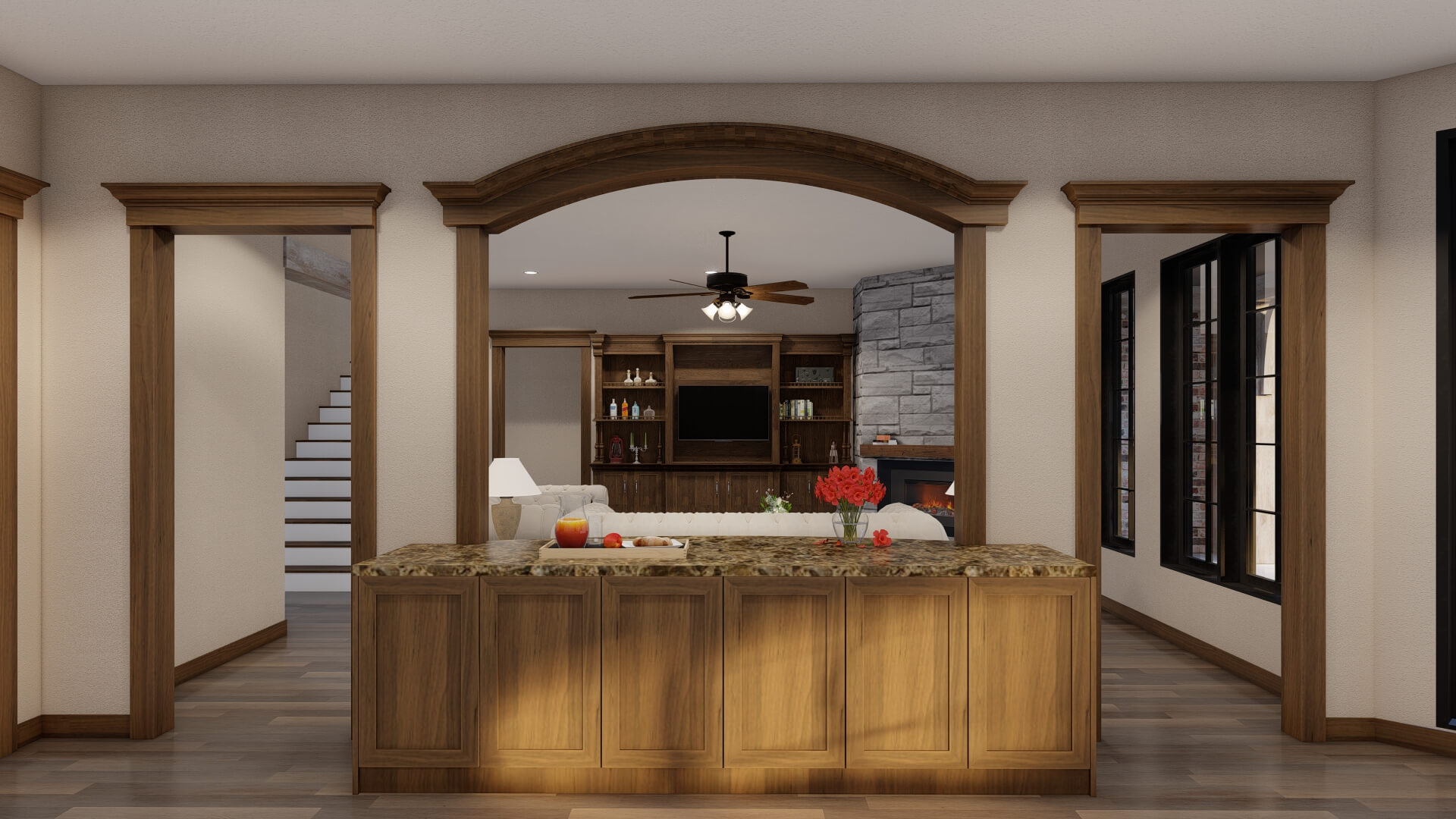

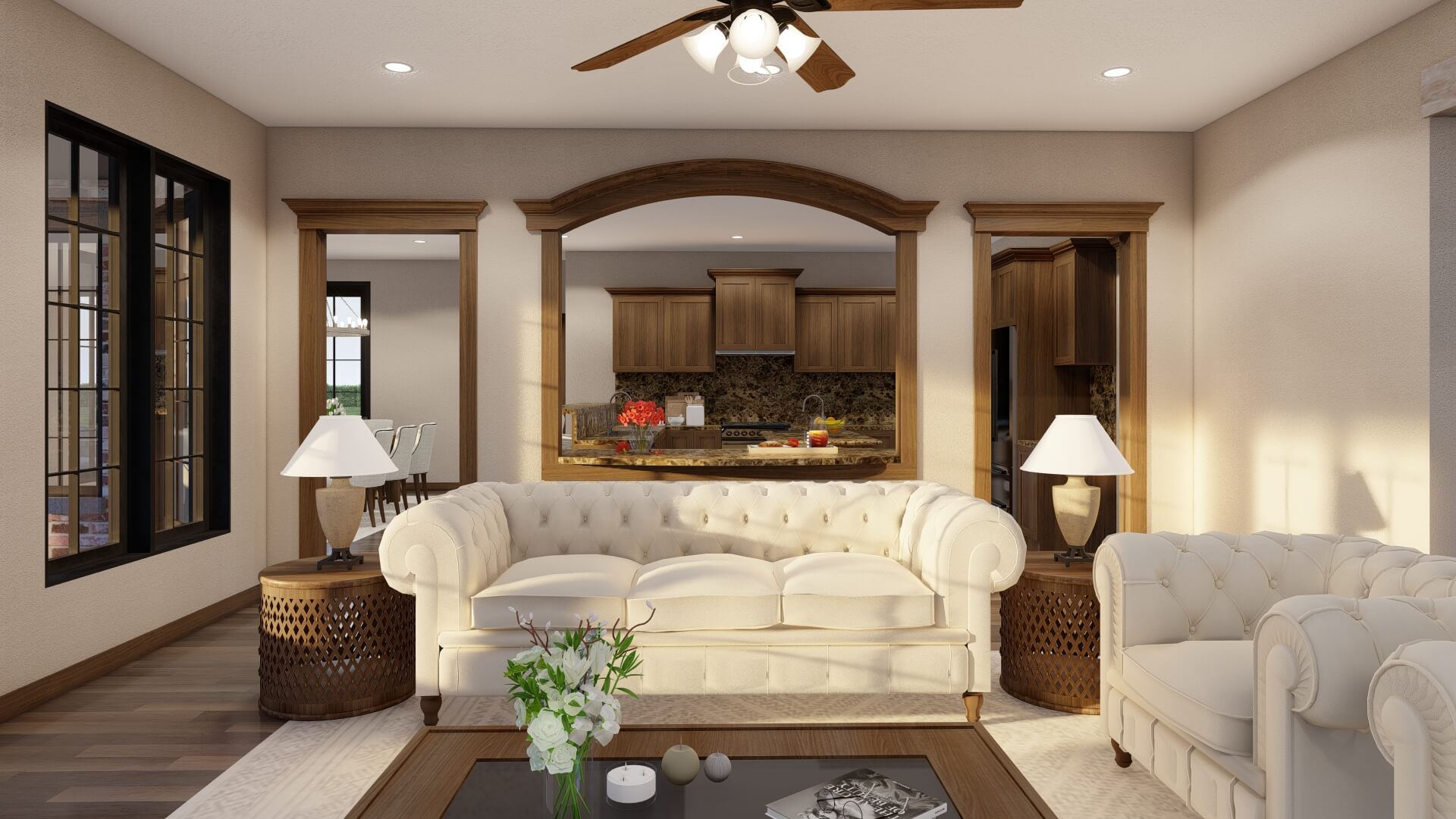

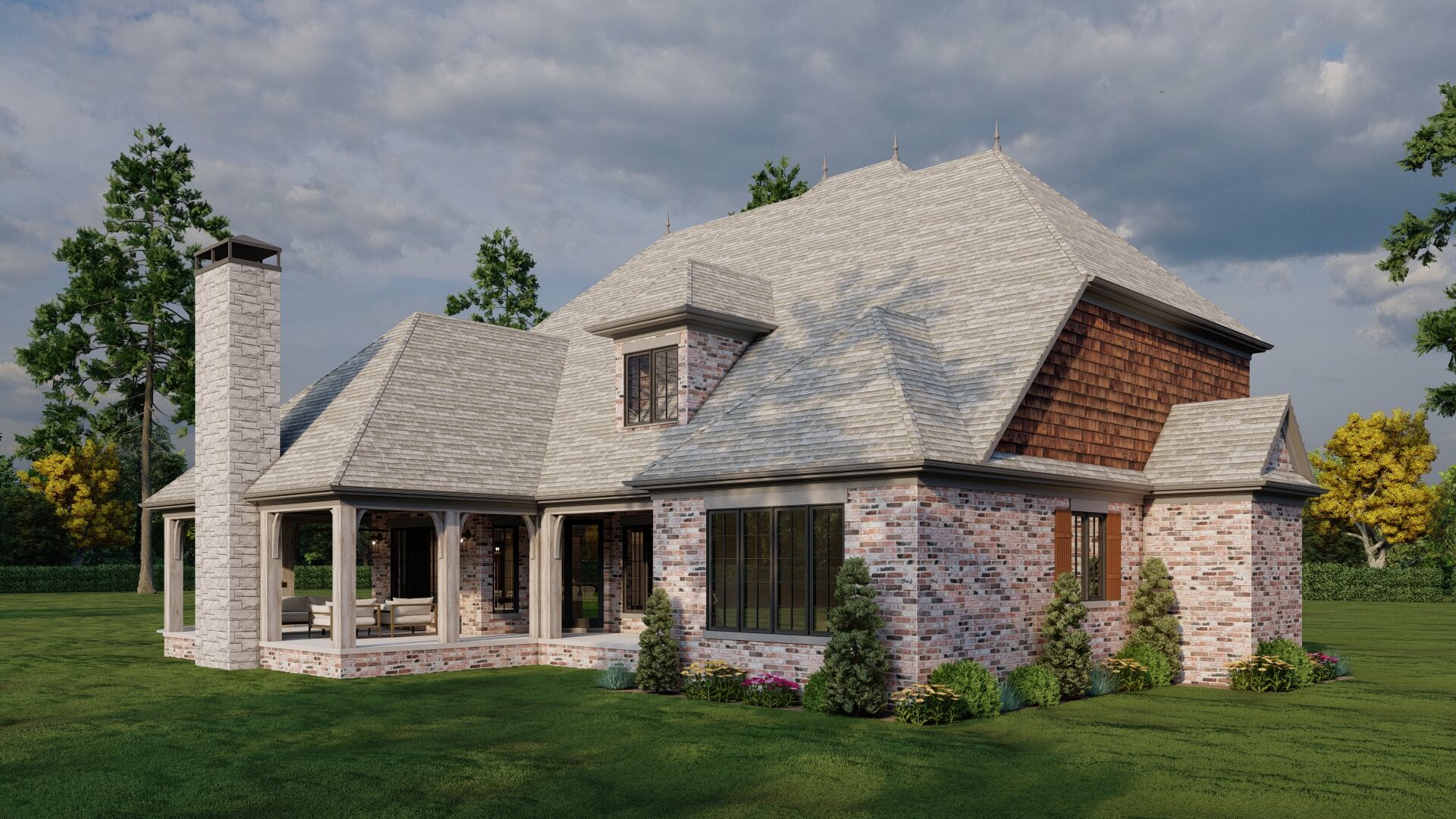

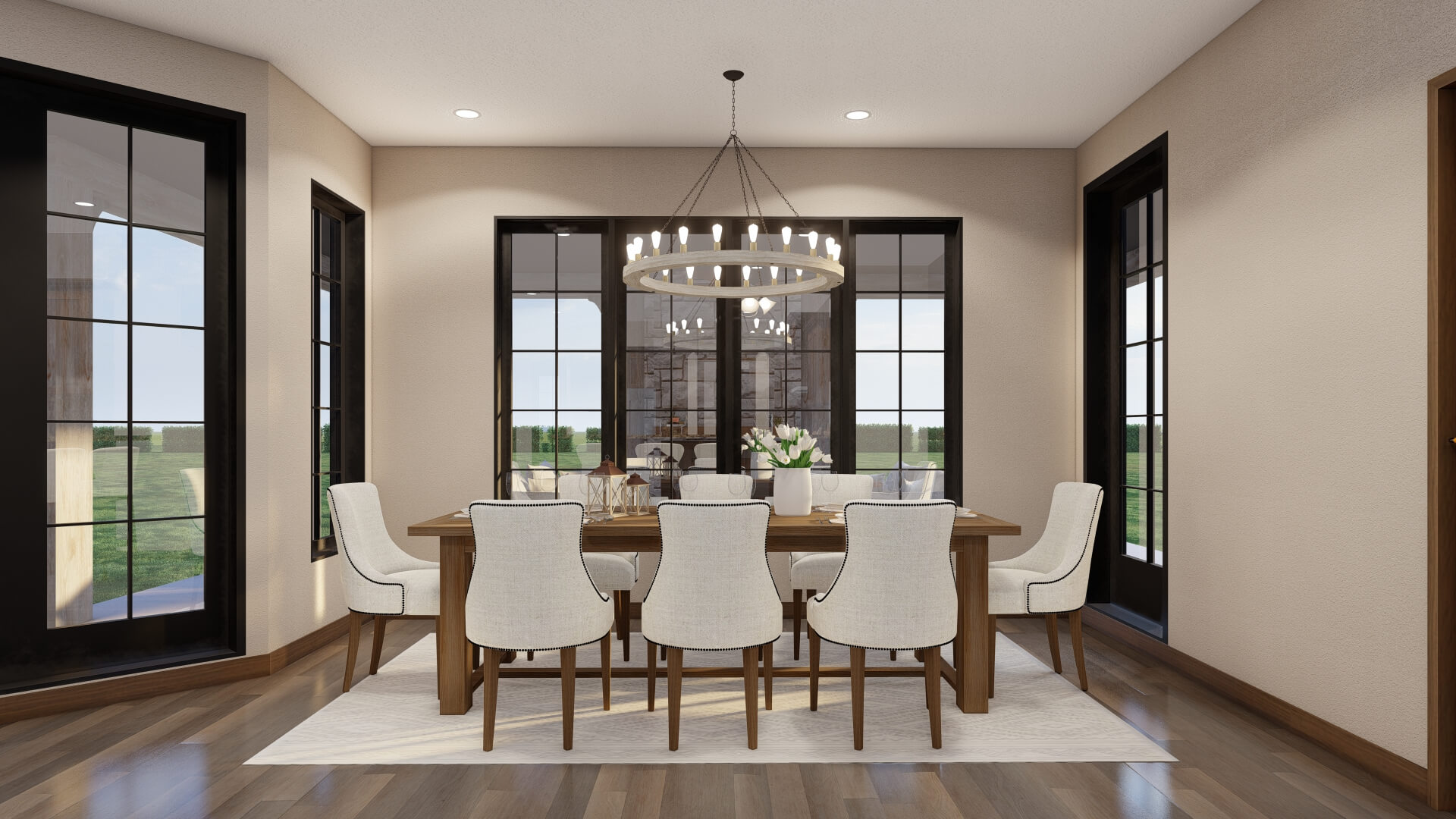

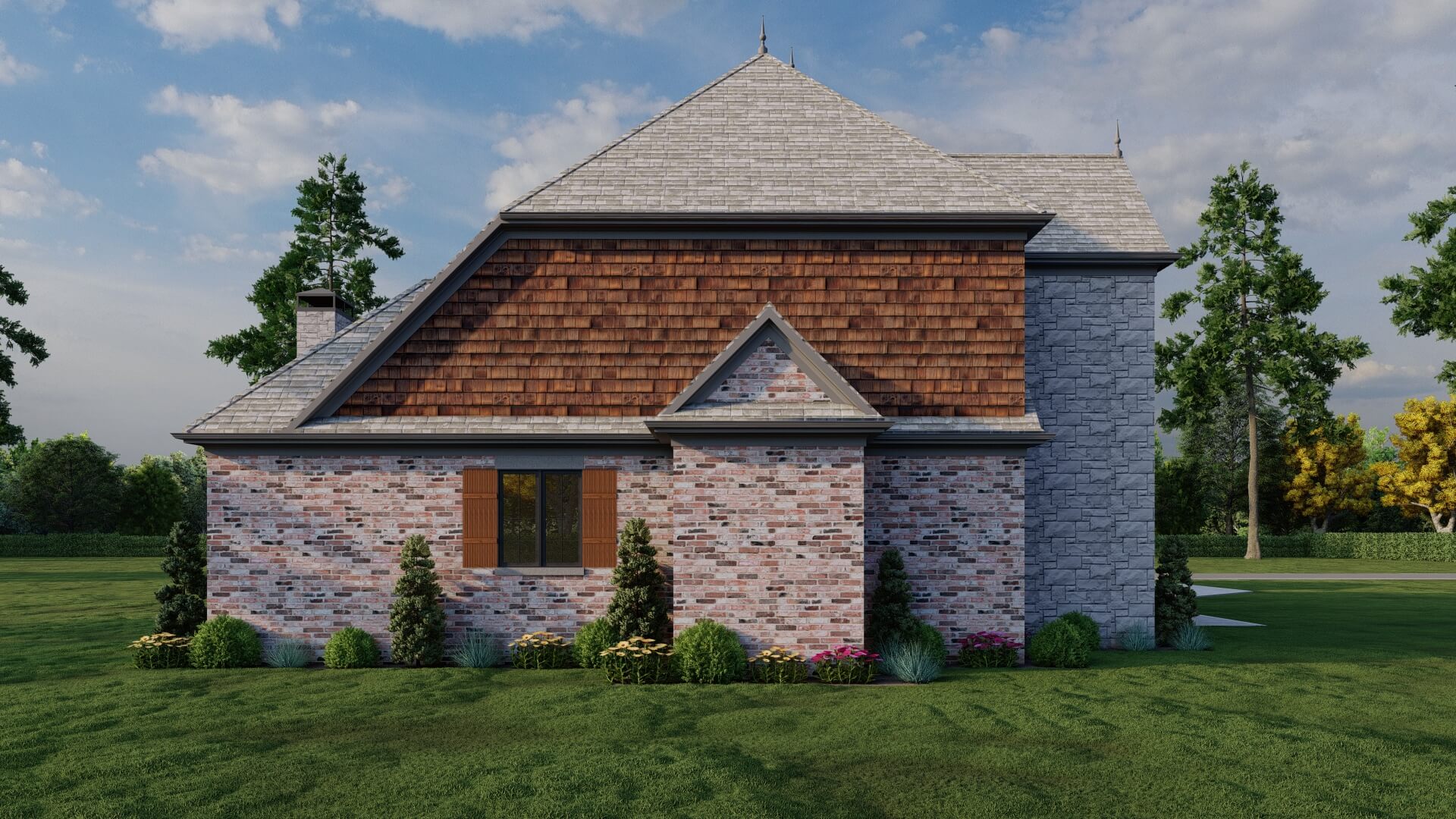

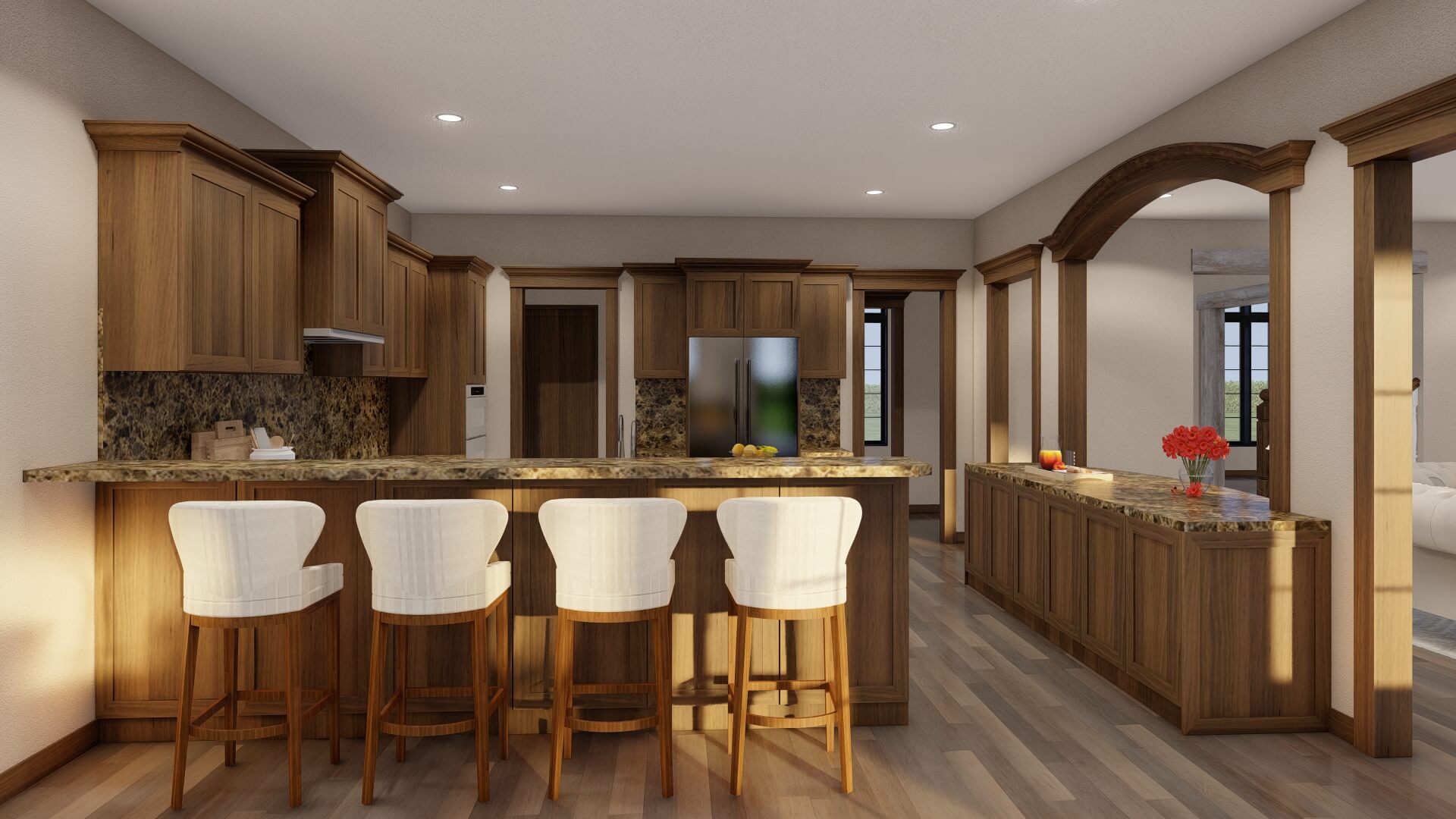

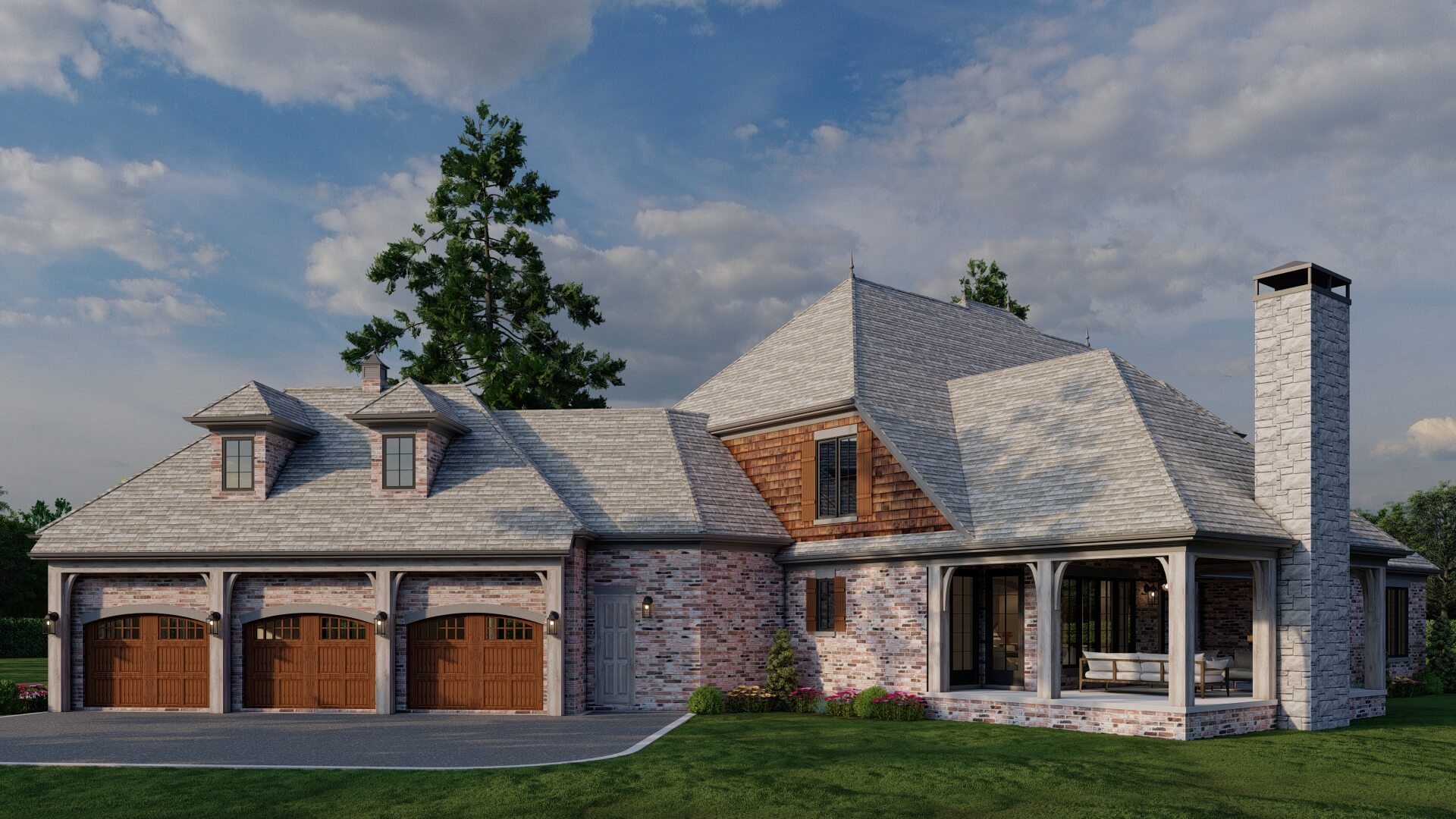

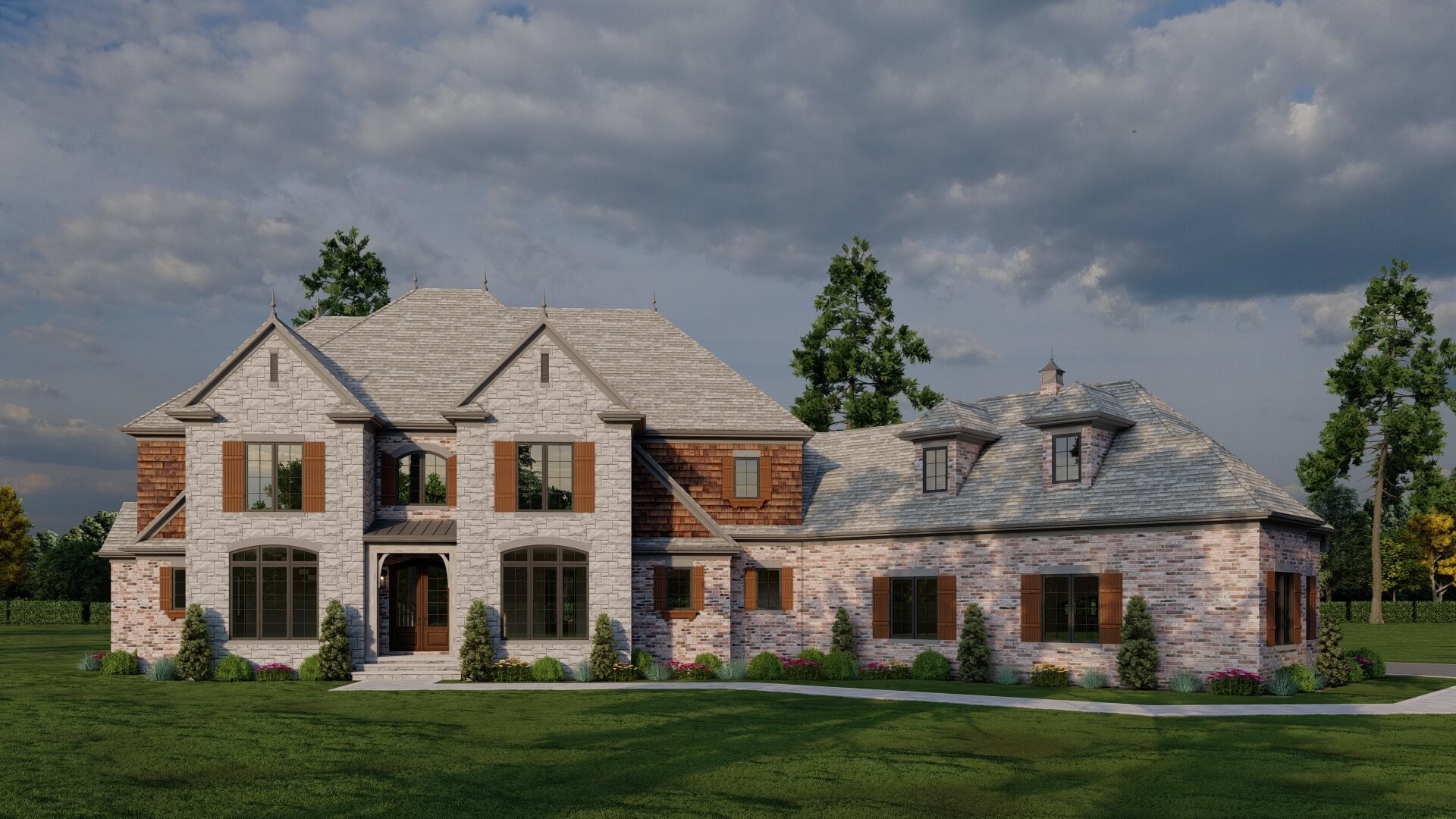

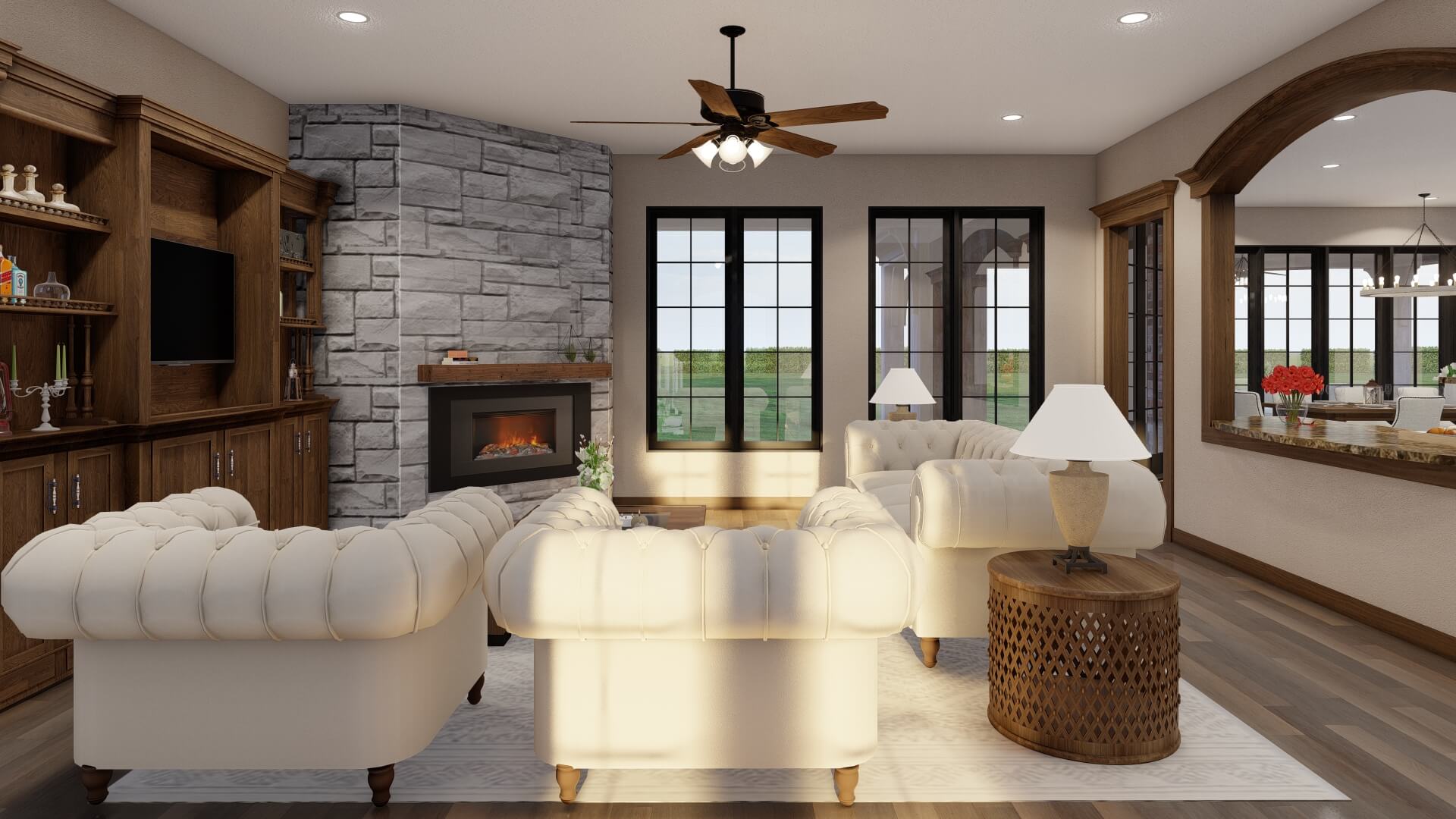

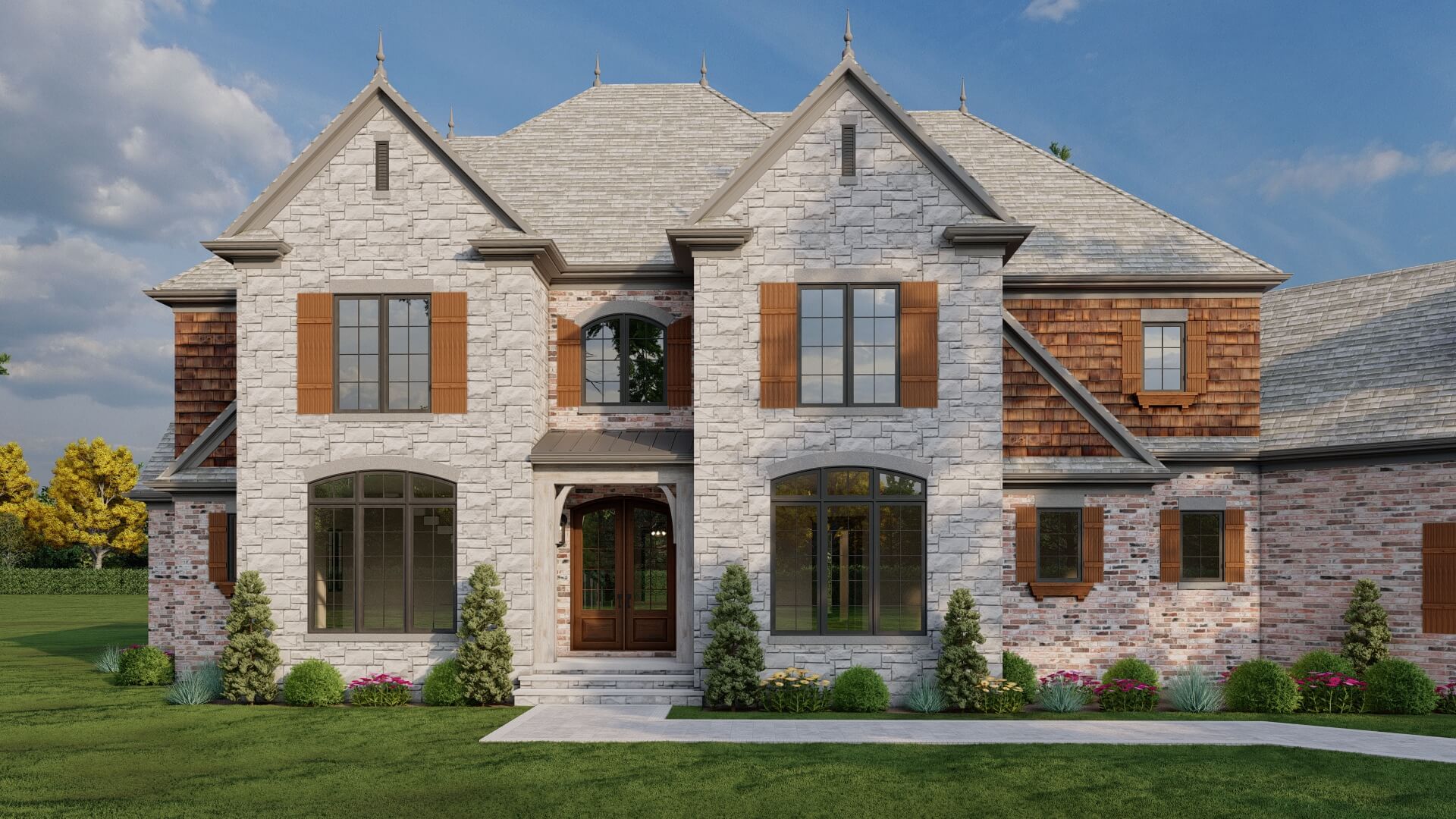

This European home blends stone, brick, and cedar shake on the exterior and offers an abundance of luxuries inside. The great room welcomes you with a warm corner fireplace, built-ins and a pass thru to the kitchen. The kitchen is a delight to cook in with an island featuring an ice maker, a bar for serving buffet style or for quick meals, and it has a large walk-in pantry. The kitchen is also open to the breakfast room which has 2 accesses to the large wrap-around grilling porch/outdoor living area, complete with a fireplace and a grilling kitchen. Near the kid’s nook is a convenient computer center room. The master suite has a vaulted timber beam ceiling and private access to the covered porch. The master bathroom offers a corner whirlpool tub, a corner glass shower with a seat, and 2 large walk-in closets. Upstairs the kids will enjoy bedrooms 2, 3, and 4, each with walk-in closets. There are also 2 full bathrooms, another computer center, and an enormous bonus room over the 3-car garage. And the entire family and friends are sure to enjoy the impressive home theater.


  • Total Living Space:4378Sq.Ft.
  • Main Floor: 2666 Sq.Ft
  • Upper Floor (Sq.Ft.): 1712 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 677 Sq.Ft.
  • Porch (Sq.Ft.): 626 Sq.Ft.
  • Garage (Sq.Ft.): 1061 Sq.Ft.
  • Total Square Feet: 6742 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 37
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
