House Plan 1298 Summer Place, Riverbend House Plan

House Plan 1298 Summer Place, Riverbend House Plan

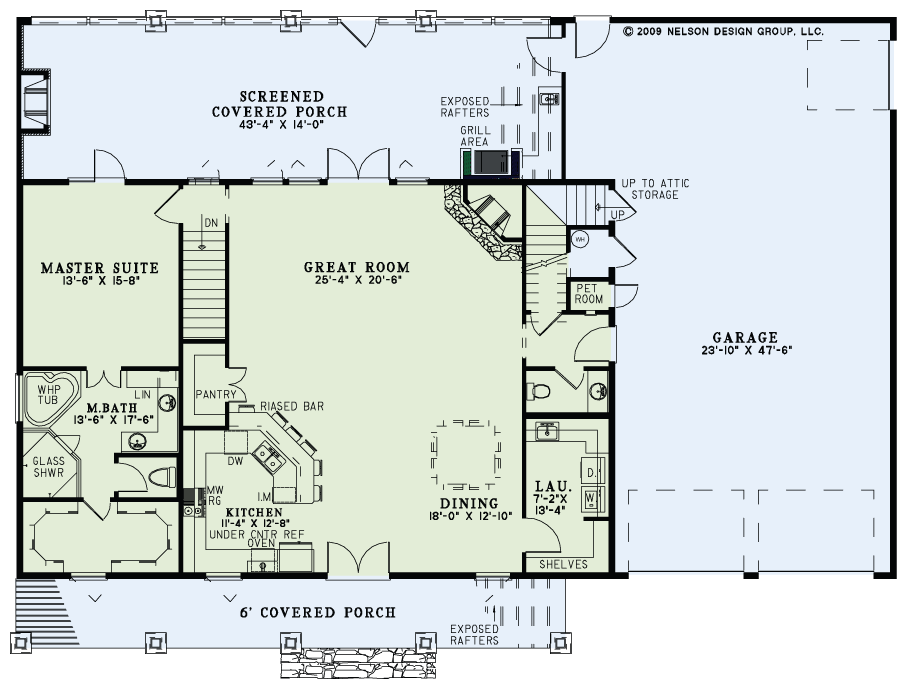

House Plan NDG 1298 Main Floor

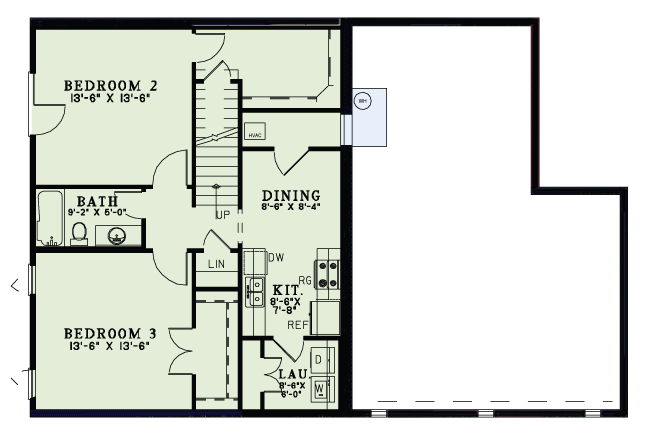

House Plan NDG 1298 Basement

Floor plans

NDG 1298

House Plan 1298 Summer Place, Riverbend House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 1298
  • Total Living Space:2575Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 76
  • Width In.: N/A
  • Depth Ft.: 54
  • Depth In.: 6

Description

This Riverbend plan is a great getaway home with a huge open great room that has a large stone corner fireplace. The kitchen has a wrap around, raised bar peninsula and a walk-in pantry. Through the double doors of the great room, you’ll find a large screened porch, perfect for summer or autumn evenings with a fireplace and grill and prep area. The master suite is accessible to the screened porch and features a large corner whirlpool beneath a window, a large corner glass shower and a huge walk-in closet that has a window for natural light. Downstairs is another perfectly livable floor with bedrooms 2 and 3 and their own huge walk-in closets. There’s a full kitchen, dining room, another laundry room, and a full bathroom.

Specifications

  • Total Living Space:2575Sq.Ft.
  • Main Floor: 1639 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 948 Sq.Ft.
  • Garage (Sq.Ft.): 1325 Sq.Ft.
  • Total Square Feet: 4848 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 5:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($1,350.00)
    • CAD ($2,700.00)
    • Five Set ($1,450.00)
    • PDF ($1,350.00)
    • PDF + Unlimited Build ($2,050.00)
  • House Plan Options

    Daylight/Walkout Basement ($0.00)
    • Daylight/Walkout Basement ($0.00)
    • Optional Crawlspace ($299.00)
    • Optional Slab ($299.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
