House Plan 1311 Lurlene Place, Affordable House Plan

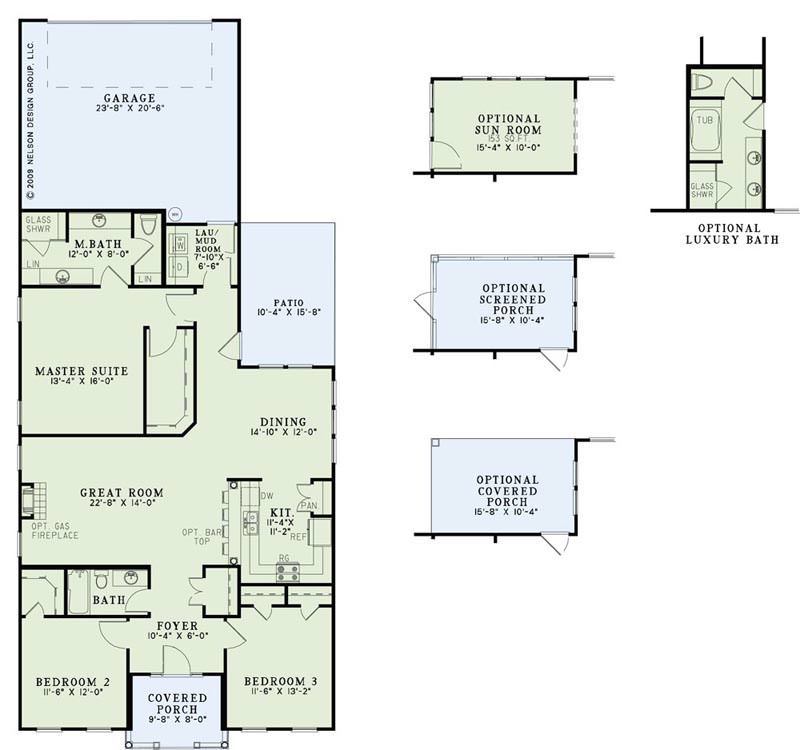

House Plan NDG 1311 Main Floor
House Plan NDG 1311 Main Floor

Floor plans

NDG 1311

House Plan 1311 Lurlene Place, Affordable House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1311
  • Total Living Space:1734Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 34
  • Width In.: 8
  • Depth Ft.: 80
  • Depth In.: N/A

Description

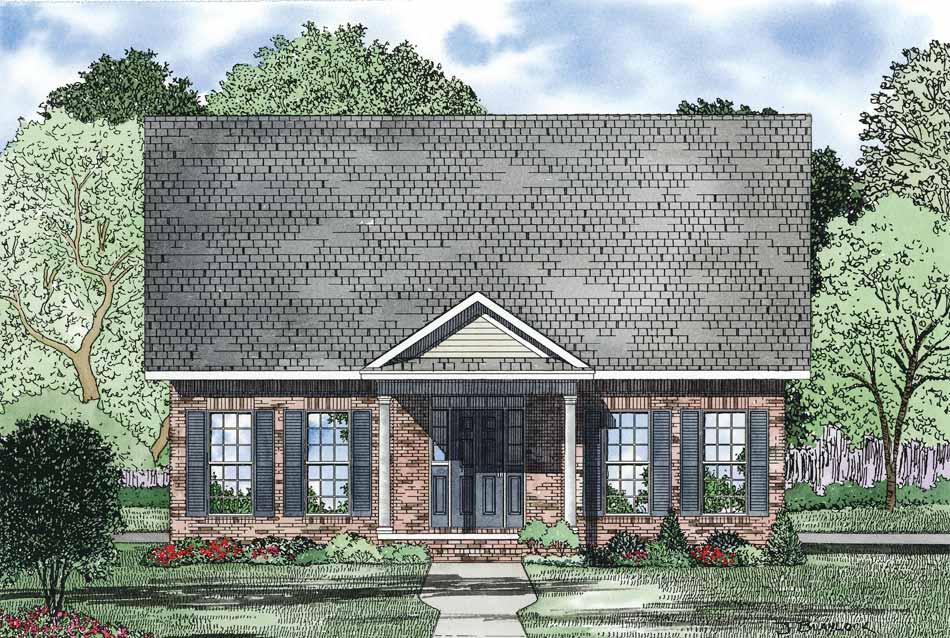

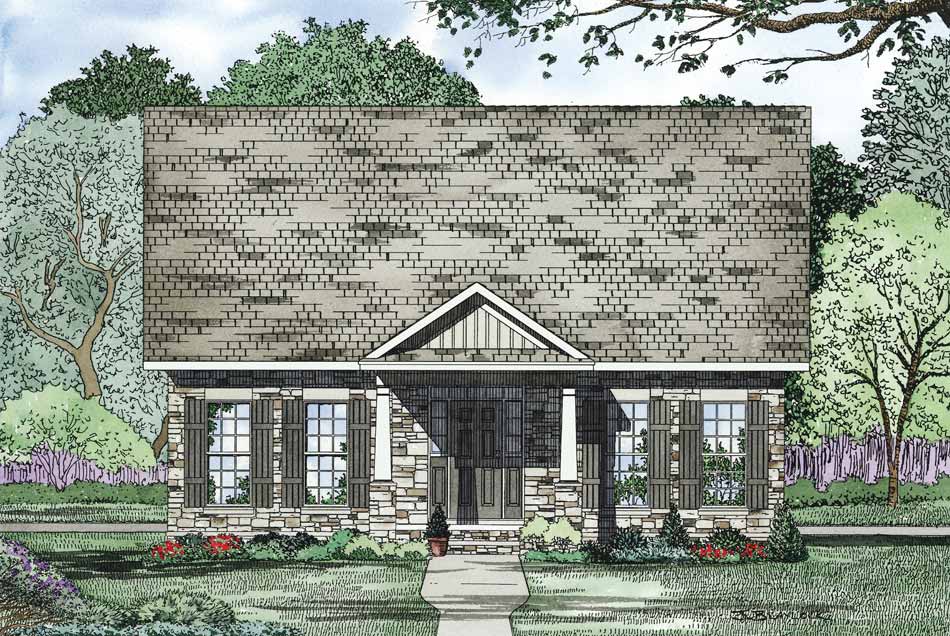

This smart plan allows you three options for the front; your choice of siding, brick or stone…with siding on the other three sides. You also have a “luxury” master bathroom option depending on your budget. The patio space can be transformed into a sunroom, screened or basic covered porch. Your choice – for your investment!

Specifications

  • Total Living Space:1734Sq.Ft.
  • Main Floor: 1734 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 243 Sq.Ft.
  • Garage (Sq.Ft.): 519 Sq.Ft.
  • Total Square Feet: 2496 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
