House Plan 1321B Markham Drive-B, Multi-Family House Plan

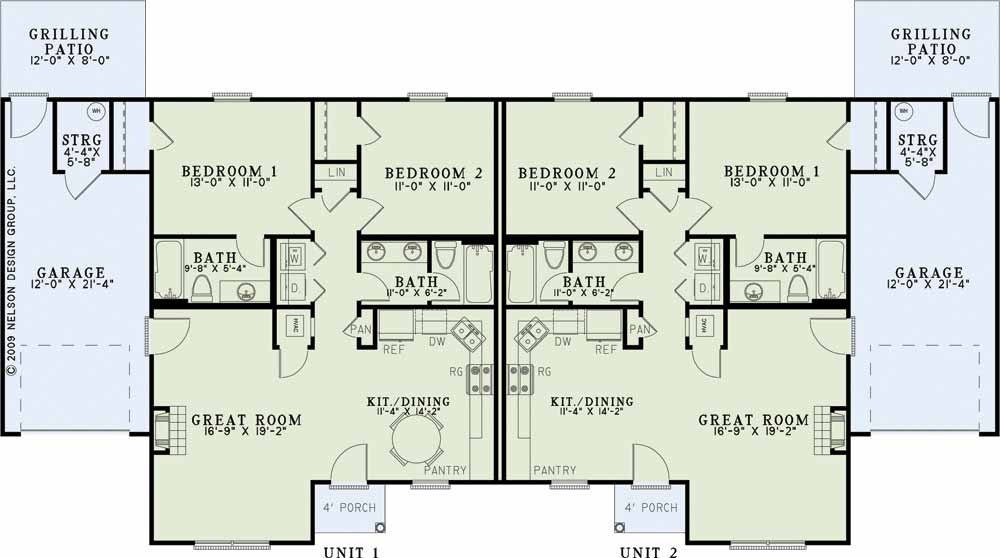

House Plan NDG 1321 Main Floor
House Plan NDG 1321 Main Floor

Floor plans

NDG 1321B

House Plan 1321B Markham Drive-B, Multi-Family House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1321B
  • Total Living Space:1012Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 1 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 82
  • Width In.: 8
  • Depth Ft.: 36
  • Depth In.: 8

Description

This multi-family duplex has a great room with a fireplace, 2 bedrooms with walk-in closets and 2 full bathrooms.

Specifications

  • Total Living Space:1012Sq.Ft.
  • Main Floor: 1012 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 24 Sq.Ft.
  • Garage (Sq.Ft.): 324 Sq.Ft.
  • Total Square Feet: 1360 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 18
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
