House Plan 1404 White Bluff Cabin, Riverbend House Plan

House Plan 1404 White Bluff Cabin, Riverbend House Plan

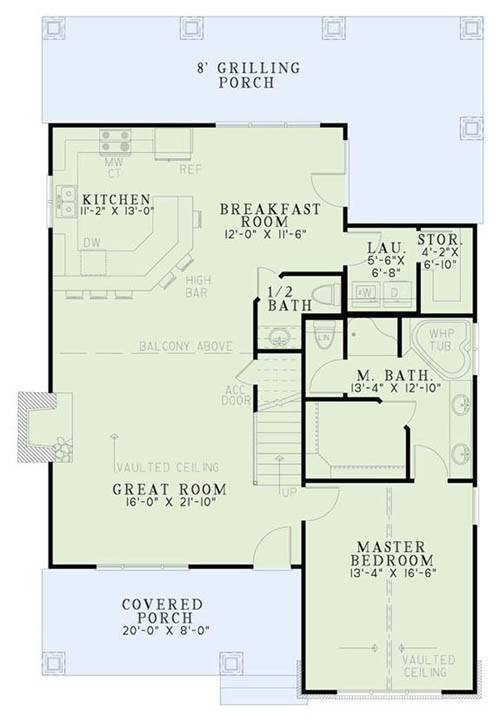

House Plan NDG 1404 Main Floor

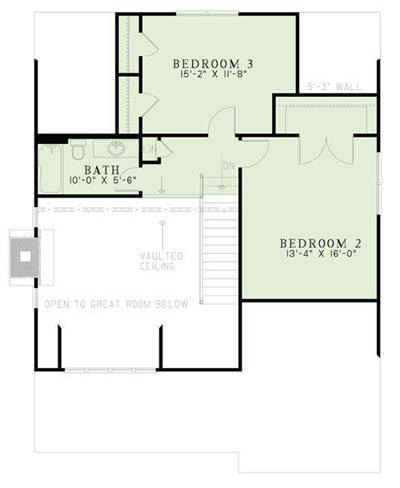

House Plan NDG 1404 Upper Floor

Floor plans

NDG 1404

House Plan 1404 White Bluff Cabin, Riverbend House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 1404
  • Total Living Space:1874Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 34
  • Width In.: 2
  • Depth Ft.: 53
  • Depth In.: 6

Description

This rustic house plan make the perfect lake house! A charming mixture of stone and vertical siding is blended together and complimented by a tin roof and welcoming Front Porch. Inside you can enjoy time spent together in the Great Room with a cozy fireplace. This room flows right into the spacious Kitchen and connected Breakfast Room where you will find a convenient high bar with room for plenty of seating and access to a 1/2 bath. The Grilling Porch is a perfect place to enjoy each other's company in the beautiful outdoor. Relax at the end of a long day on the lake in the Master Bedroom which has a beautiful vaulted ceiling and a large Master Bath. Guests or the kids will feel right at home in the 2 bedrooms located upstairs with a bathroom to share.

Specifications

  • Total Living Space:1874Sq.Ft.
  • Main Floor: 1270 Sq.Ft
  • Upper Floor (Sq.Ft.): 604 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 516 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2390 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($1,100.00)
    • CAD ($2,200.00)
    • Five Set ($1,200.00)
    • PDF ($1,100.00)
    • PDF + Unlimited Build ($1,800.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Optional Basement ($299.00)
    • Optional Daylight Basement ($299.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
