House Plan 1409 Brentwood, Traditional House Plan

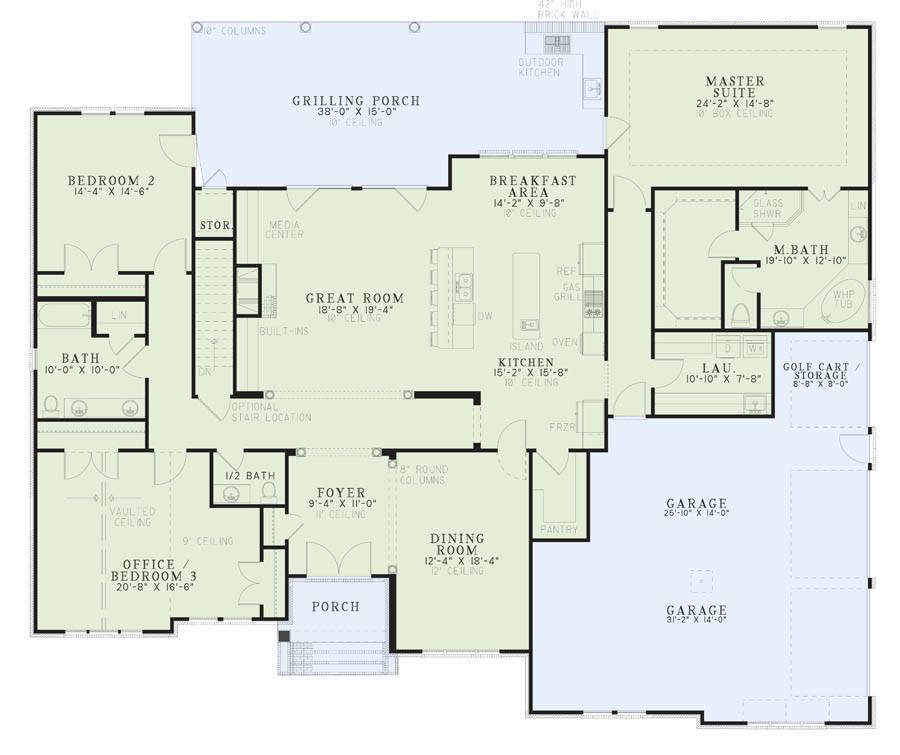

House Plan NDG 1409 Main Floor
House Plan NDG 1409 Main Floor

Floor plans

NDG 1409

House Plan 1409 Brentwood, Traditional House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 1409
  • Total Living Space:3050Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 77
  • Width In.: 10
  • Depth Ft.: 65
  • Depth In.: N/A

Description

This brick home features an excellent open floor plan and has large rooms and high ceilings throughout. 3 bedrooms and 2 bath with the Master Suite being 24 feet in length. The eat-at island bar of the kitchen can serve the Great Room. A huge Grilling Porch with access from 2 bedrooms and a 3-car garage with plenty of storage space.

Specifications

  • Total Living Space:3050Sq.Ft.
  • Main Floor: 3050 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 611 Sq.Ft.
  • Garage (Sq.Ft.): 889 Sq.Ft.
  • Total Square Feet: 4550 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
