House Plan 1418 Somer's Place, European House Plan

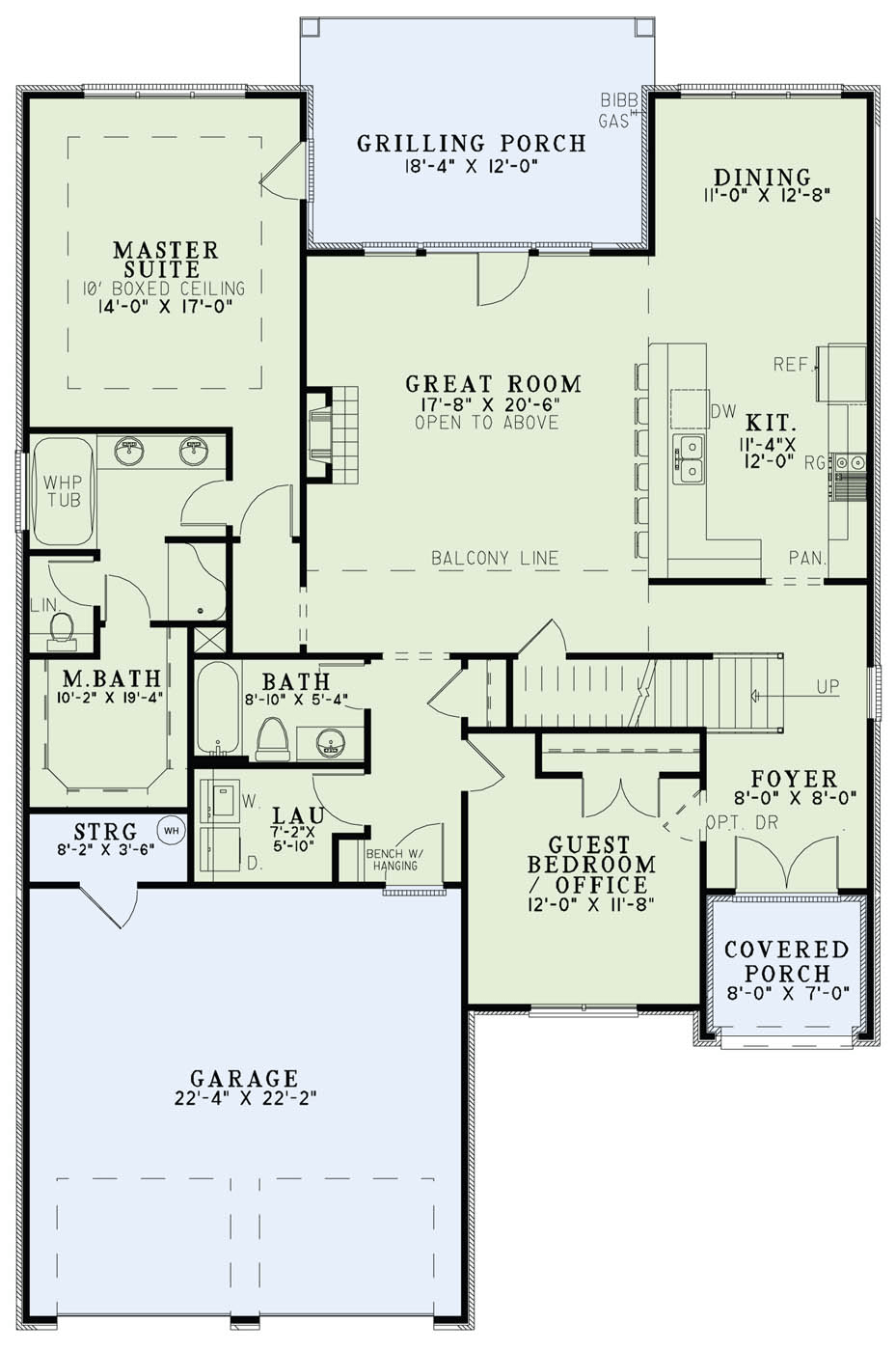

House Plan NDG 1418 Main Floor

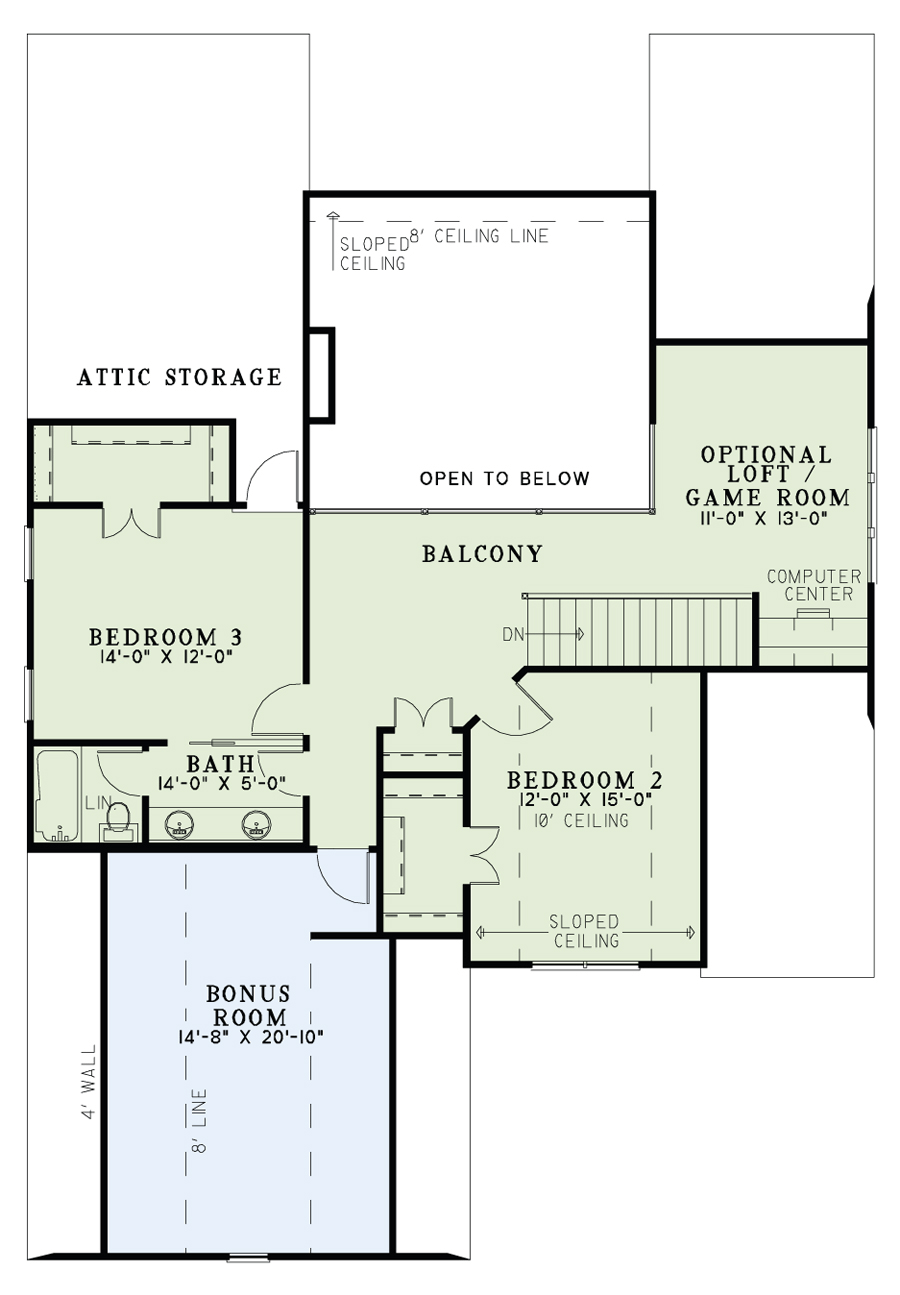

House Plan NDG 1418 Upper Floor
House Plan NDG 1418 Main Floor
House Plan NDG 1418 Upper Floor

Floor plans

NDG 1418

House Plan 1418 Somer's Place, European House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: NDG 1418
  • Total Living Space:2477Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 44
  • Width In.: N/A
  • Depth Ft.: 67
  • Depth In.: 6

Description

This European Style House plan has open floor plan, spacious outdoor living and fabulous master suite. The Great Room features a fireplace and is open to the kitchen and dining room, perfect for entertaining guests. A bedroom located at the front is perfect for the guest room or as a convenient home office. The master suite has a 10′ boxed ceiling and access to the Grilling Porch. Upstairs you'll find 2 more bedrooms, a full bath and a large bonus room with tons of possibilities. An optional loft / game room is next to a wonderful balcony area overlooking the Great Room.

Specifications

  • Total Living Space:2477Sq.Ft.
  • Main Floor: 1718 Sq.Ft
  • Upper Floor (Sq.Ft.): 759 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 318 Sq.Ft.
  • Porch (Sq.Ft.): 280 Sq.Ft.
  • Garage (Sq.Ft.): 548 Sq.Ft.
  • Total Square Feet: 3623 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
