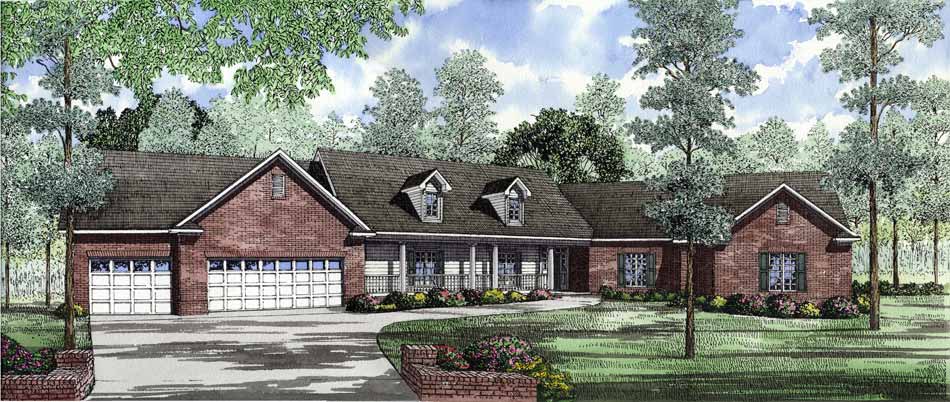

House Plan 1419 Ferguson Lane, Waterfront House Plan

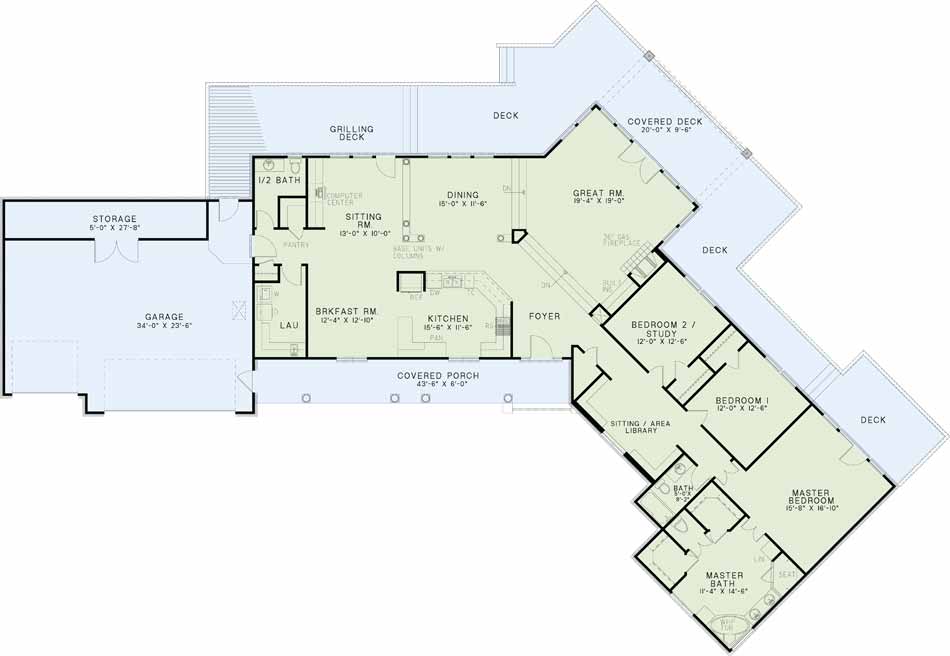

House Plan NDG 1419 Main Floor
House Plan NDG 1419 Main Floor

Floor plans

NDG 1419

House Plan 1419 Ferguson Lane, Waterfront House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 1419
  • Total Living Space:2711Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 122
  • Width In.: 10
  • Depth Ft.: 75
  • Depth In.: 5


Luxurious space is a common theme throughout this gorgeous NDG home. The extra wide front covered porch is perfect for sitting and visiting with family and friends and there’s a convenient door to the 3-car garage. Upon entering the foyer, you’ll first notice the sunken Great Room situated on a 45 degree angle and features a gas fireplace, built-in shelves, and French doors to the massive partly covered wrap-around deck. The Great Room is also open to the Dining Room and kitchen while the adjacent breakfast room is open to the Sitting Room that features a compute center and access to the rear grilling deck. The large Master Suite also has access to the rear deck while the master bathroom features a corner whirlpool tub, corner shower with a seat and 2 large walk-in closets. Nearby is another bedroom, perfect for a nursery, followed by another possible bedroom or a study across from the sitting area/library.


  • Total Living Space:2711Sq.Ft.
  • Main Floor: 2711 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 458 Sq.Ft.
  • Garage (Sq.Ft.): 799 Sq.Ft.
  • Total Square Feet: 3968 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
