House Plan 1465 Camp Twin Lakes, Multi-Family House Plan

PDF: $2,050.00

Plan Details

  • Plan Number: NDG 1465
  • Total Living Space:1451Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 85
  • Width In.: 4
  • Depth Ft.: 38
  • Depth In.: 4

Description

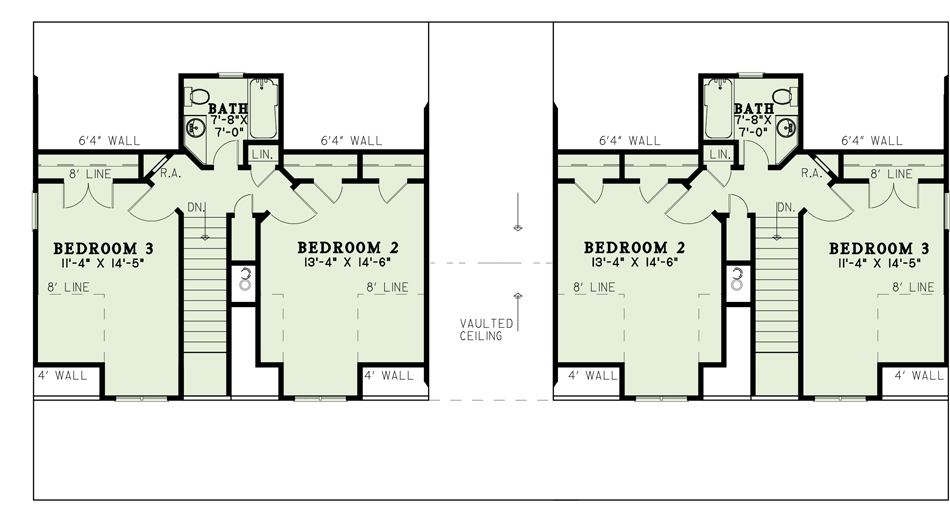

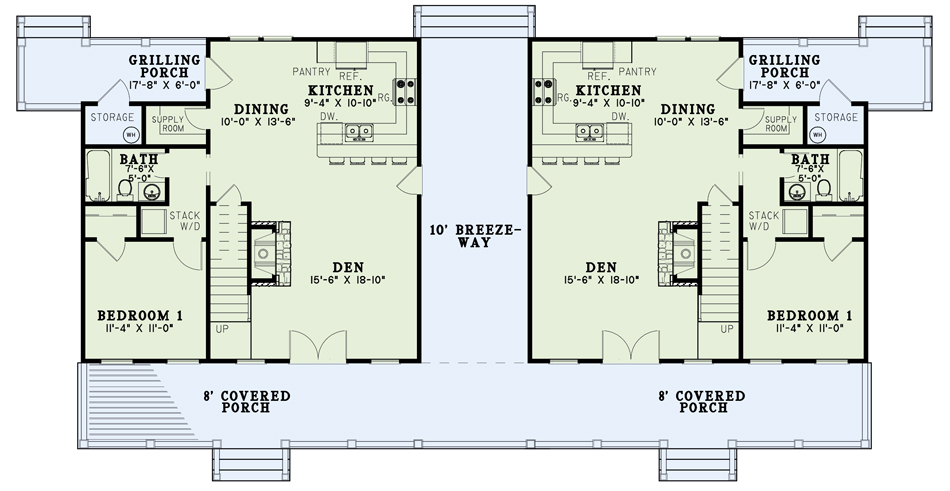

This multi-family home features a large covered front porch and a breezeway. The den welcomes you with a stone fireplace. The kitchen and dining room are open to the den and kitchen features an eat-at bar. The master bedroom has a full bath and a convenient nearby stackable washer/dryer. Upstairs are spacious bedrooms 2 and 3 that share a bedroom.

Specifications

  • Total Living Space:1451Sq.Ft.
  • Main Floor: 868 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 381 Sq.Ft.
  • Garage (Sq.Ft.): 392 Sq.Ft.
  • Total Square Feet: 2224 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Metal
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
