House Plan 156 Country Club Drive, Traditional House Plan

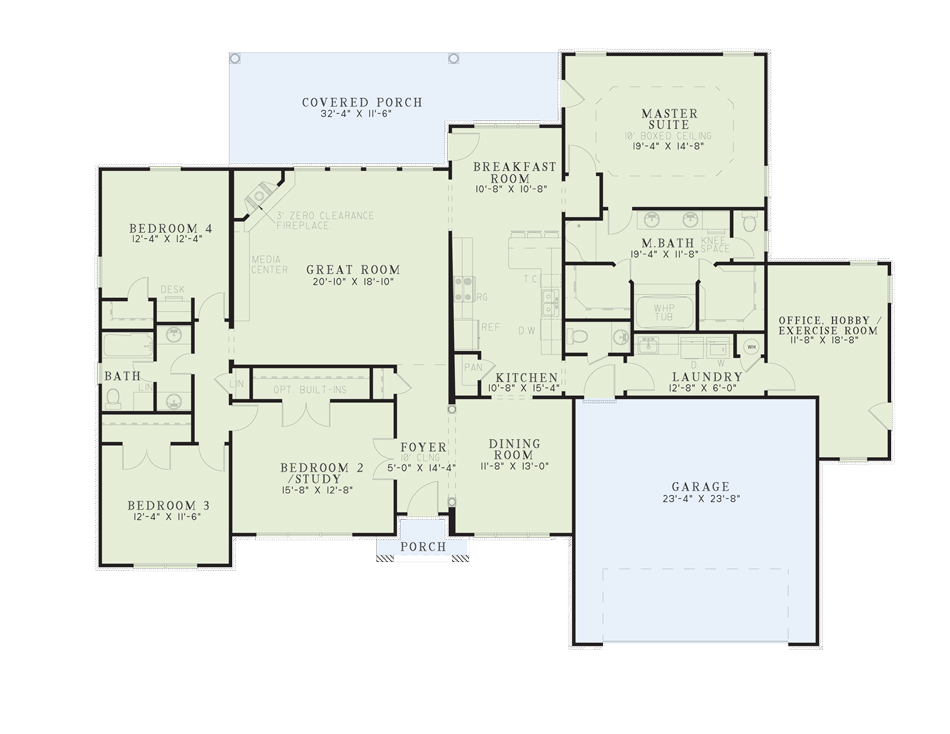

House Plan NDG 156 Main Floor

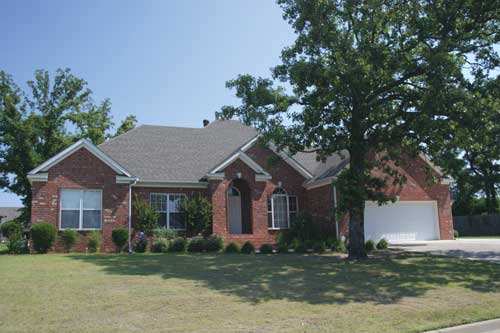

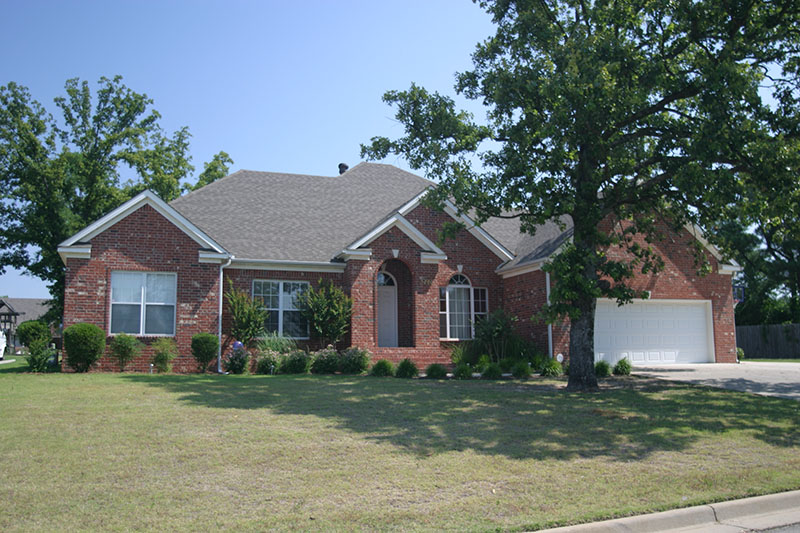

House Plan - 806 Ginger 156view2p Front View>
House Plan NDG 156 Main Floor
House Plan - 806 Ginger 156view2p Front View

Floor plans

NDG 156

House Plan 156 Country Club Drive, Traditional House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 156
  • Total Living Space:2582Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 77
  • Width In.: N/A
  • Depth Ft.: 57
  • Depth In.: 8

Description

This magnificent home has a split bedroom design with amenities galore. An arched entry welcomes you into a foyer with ten foot ceiling and through to a great room with built-in media center and corner fireplace. The master suite is enhanced by a ten foot boxed ceiling and accesses the covered porch. The master bathroom features a double vanity, separate shower and a whirlpool tub surrounded by ‘his and her’ walk-in closets. The laundry room accesses either an exercise room or home office depending on your need. On the opposite side of the home are three additional bedrooms-one perfect for a study with optional built-in and French doors.

Specifications

  • Total Living Space:2582Sq.Ft.
  • Main Floor: 2582 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 365 Sq.Ft.
  • Garage (Sq.Ft.): 552 Sq.Ft.
  • Total Square Feet: 3499 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
