House Plan 1638 Moss Landing I, Tiny House Plan

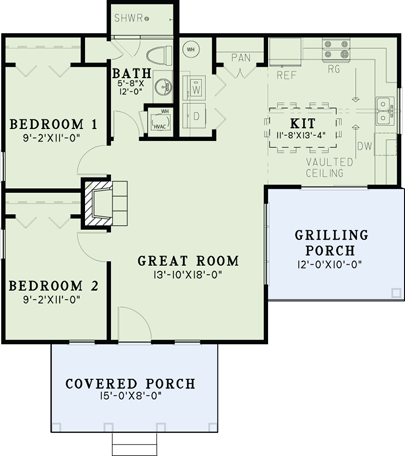

Floor plans
NDG 1638
House Plan 1638 Moss Landing I, Tiny House Plan
Plan Details
- Plan Number: NDG 1638
- Total Living Space:859Sq.Ft.
- Bedrooms: 2
- Full Baths: 1
- Half Baths: N/A
- Garage: No
- Garage Type: N/A
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 36
- Width In.: N/A
- Depth Ft.: 39
- Depth In.: N/A
Description
This charming little home offers a great room with a fireplace and is open to the kitchen that features an eat-at island bar and a vaulted ceiling. 2 bedrooms and 1 bath are on the left side of the home with a grilling porch off of the kitchen and a covered front covered porch with timber columns.
Specifications
- Total Living Space:859Sq.Ft.
- Main Floor: 859 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 239 Sq.Ft.
- Garage (Sq.Ft.): N/A
- Total Square Feet: 1098 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 9
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 7:12
- Porch Roof Pitch: 3:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 16
- Ridge Height (In.): 8
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
