House Plan 1670 Heritage Manor, Heritage House Plan

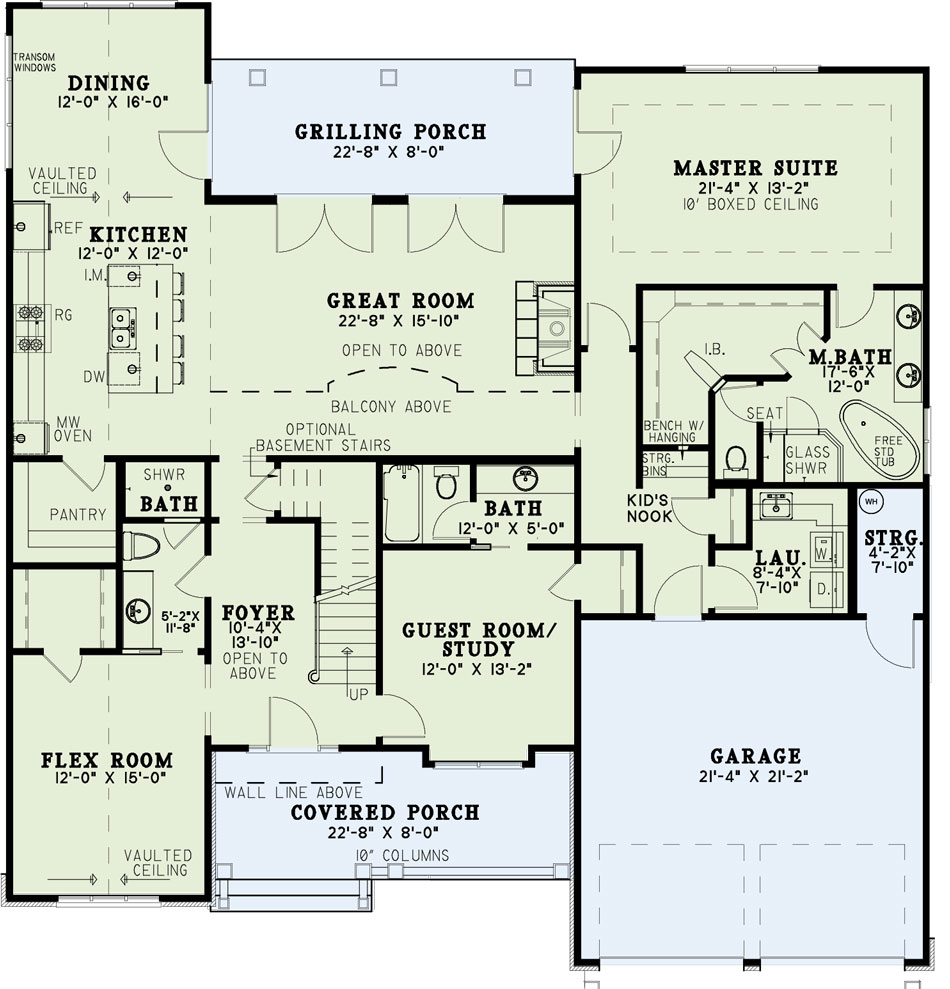

House Plan NDG 1670 Main Floor

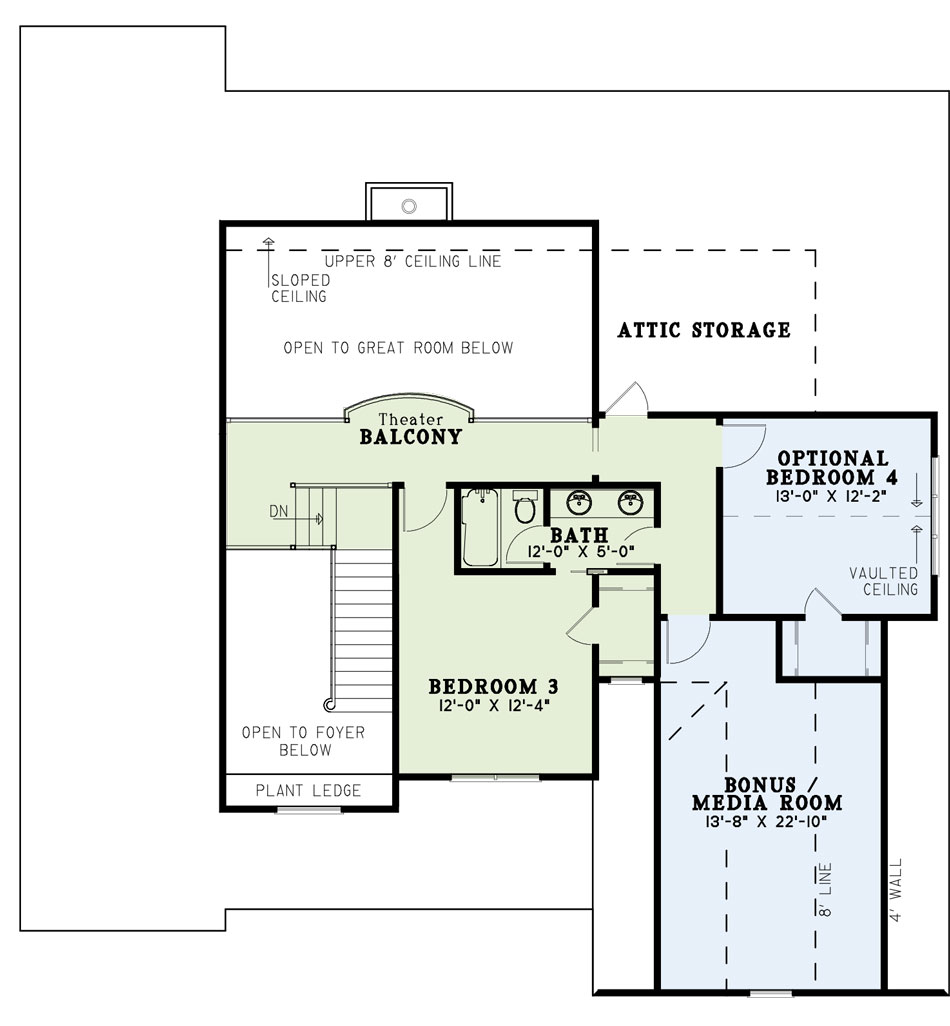

House Plan NDG 1670 Upper Floor
House Plan NDG 1670 Main Floor
House Plan NDG 1670 Upper Floor

Floor plans

NDG 1670

House Plan 1670 Heritage Manor, Heritage House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1670
  • Total Living Space:2683Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 4
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 57
  • Width In.: 4
  • Depth Ft.: 59
  • Depth In.: 10


Plan Description

This traditional house plan gives you just under 2,700 square feet of living space with 3 bedrooms and 4 full baths. This home has tremendous curb appeal with its mix of exterior elements. The exterior of this home has a mixture of stone and board and batten siding with a white covered porch. On the inside of this home, you will find a giant master bedroom and master bath, an open floor plan that includes the great room, kitchen and dining room and a lovely bedroom on the third floor with its own bathroom.

Exterior Elements

As you approach the home, the first thing that you notice is the mixture of exterior elements that gives this home such a lovely curb appeal. The home has stone work as well as traditional board and batten siding and a lovely covered front porch.

Large Foyer

Entering the home from the front porch, you find yourself in the foyer. The foyer is open to the second floor which gives the home depth and character. The foyer has access to the stairwell that goes to the second floor as well as a full bathroom right inside the door.

Great Flex Space

On the left of the foyer is a flex room. This room can be used as a guest room, an office, another bedroom, a workout space, etc. The sky is the limit here and with the charm of a vaulted ceiling and large picture window facing the front of the home, you really can do no wrong. This flex space also offers you access to that full bathroom and a walk-in closet.

On the right side of the foyer is a guest room/ study. This room features a more private in-suite bathroom and a smaller closet. It also has a large double casement window that looks out over the front of the home and the covered porch.

Open Floor Plan

Moving further into the home, you will find yourself in an open floor plan that includes the great room, kitchen and dining room. The great room is open to the second floor and has a large fireplace along the right wall. The rear wall of the great room is dominated by two French doors that lead out onto the grilling porch on the rear of the home.

The kitchen is separated from the great room by an island that gives you seating for 4. This island is also the perfect place to clean up after a large meal. It features a sink and dishwasher where you can clean up and still keep an eye on the comings and goings in the great room.

The rest of the kitchen gives you plenty of counterspace so that you can prep your meals and has space for a large range. The kitche also gives you access to a large pantry. When I say large, I mean its big. This pantry is probably my favorite part of this space.

Adjacent to the kitchen is the dining room. The dining room has windows along two of the walls that will give a great view of your property. It also features a charming vaulted ceiling to make entertaining more intimate. The dining room also has a sliding door that opens onto the grilling porch on the rear of the home.

Life's Little Messes: Laundry Room and Kid's Nook

On the other side of the home, you will find the laundry room and kid’s nook. The kid’s nook comes directly from the garage and has both a closet and space for storage bins and hanging storage. This is great for when you want to come in and get those coats and boots off before moving into the rest of the home.

The laundry room is accessed from the kid’s nook. It gives you a corner countertop that is great for sorting and folding. The laundry room also features a large sink for soaking those really bad stains and hanging storage over the washer and dryer.

Massive Master Suite

The remainder of the first floor is occupied by the master suite. The master bedroom gives you high boxed ceilings and a large picture window facing the rear of the home. This room also has a private entrance to the grilling porch. The master bedroom is huge. It’s almost the same size as the great room so you can definitely fit that California King size bed in there.

The master bath gives you a double sink, a free standing tub and a glass shower with a seat. Don’t forget about the walk-in closet! This large closet gives you plenty of storage space no matter how many pairs of shoes you find on sale.

Second Floor Hideaway

The second floor features the third bedroom and a bathroom. The stairs open up and lead you past the theater style balcony that overlooks the great room on the first floor. The bedroom on the second floor gives you a double casement window that faces the front of the house and a small closet with its own window. The bath has a double sink and can be accessed from either the bedroom or the hallway.

Customizing This House Plan Making this house plan onto your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experience house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.


  • Total Living Space:2683Sq.Ft.
  • Main Floor: 2218 Sq.Ft
  • Upper Floor (Sq.Ft.): 465 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 500 Sq.Ft.
  • Porch (Sq.Ft.): 355 Sq.Ft.
  • Garage (Sq.Ft.): 506 Sq.Ft.
  • Total Square Feet: 4044 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 2:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • House Plan Options
