House Plan 282B Sage Meadows, Southern House Plan

House Plan NDG 282B Main Floor

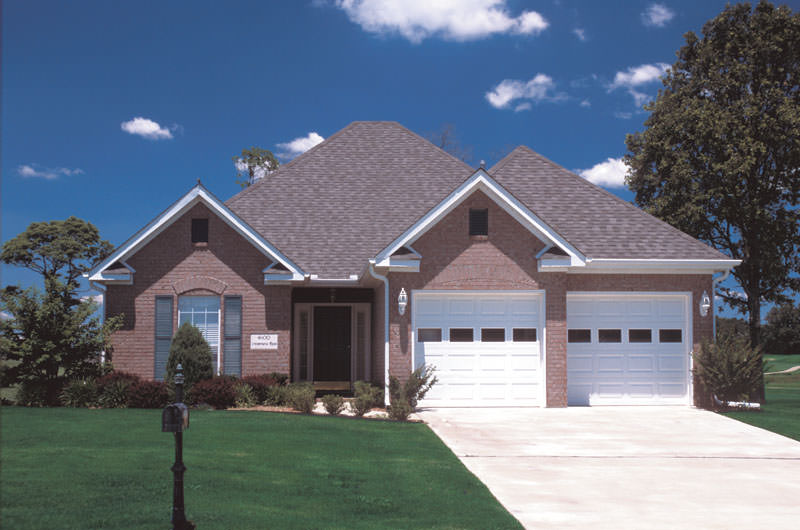

House Plan - ndg282 Front Front View>
House Plan NDG 282B Main Floor
House Plan - ndg282 Front Front View

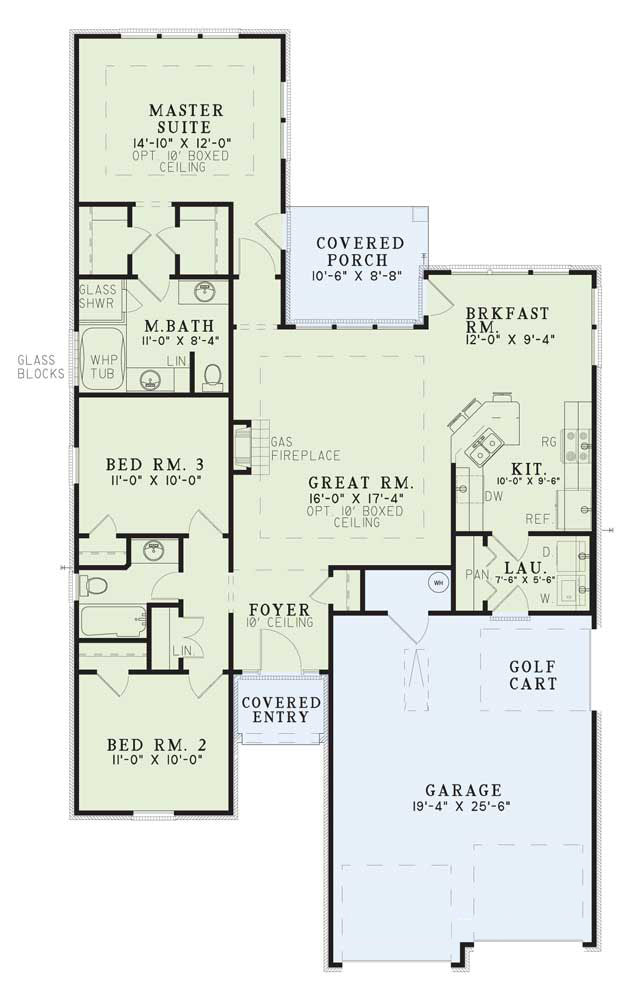

Floor plans

NDG 282B

House Plan 282B Sage Meadows, Southern House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 282B
  • Total Living Space:1379Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 38
  • Width In.: 4
  • Depth Ft.: 68
  • Depth In.: 6

Description

Enter this French Country home and find a traditional covered entry porch with marvelous ten foot ceilings. Following through the foyer, you’re led into a spacious great room where you can spend cold winter nights in front of a warm fire. In addition, convenient access from the master suite to the covered rear porch provides the atmosphere for private romantic summer evenings.

Specifications

  • Total Living Space:1379Sq.Ft.
  • Main Floor: 1379 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 142 Sq.Ft.
  • Garage (Sq.Ft.): 493 Sq.Ft.
  • Total Square Feet: 2014 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
