House Plan 284B Sage Meadows, Southern House Plan

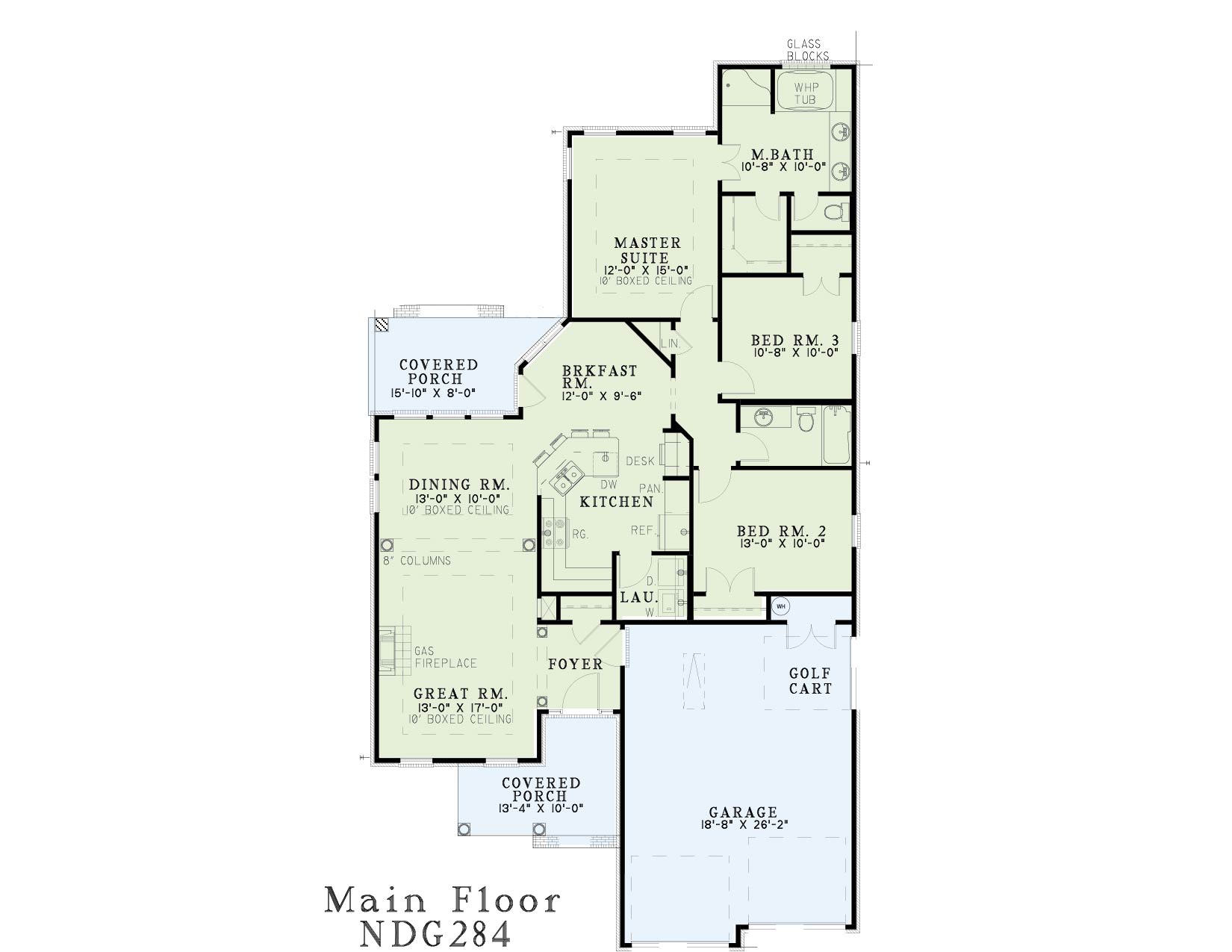

House Plan NDG 284 Main Floor
House Plan NDG 284 Main Floor

Floor plans

NDG 284B

House Plan 284B Sage Meadows, Southern House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 284B
  • Total Living Space:1504Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 39
  • Width In.: 6
  • Depth Ft.: 72
  • Depth In.: 5


As you enter this home, you are welcomed onto a lovely covered porch with ten foot ceilings and led directly into the traditional foyer. From there you’ll enjoy a combination great room and dining area divided only by magnificent wooden columns. An easily accessible kitchen is accented by a breakfast nook complete with bay windows and entry to a rear covered grilling porch. Spend hours delighting friends and family with your grilling expertise.


  • Total Living Space:1504Sq.Ft.
  • Main Floor: 1504 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 232 Sq.Ft.
  • Garage (Sq.Ft.): 488 Sq.Ft.
  • Total Square Feet: 2224 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
