House Plan 287B Sage Meadows, Southern House Plan


Floor plans

NDG 287B

House Plan 287B Sage Meadows, Southern House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 287B
  • Total Living Space:1574Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 34
  • Width In.: N/A
  • Depth Ft.: 66
  • Depth In.: 8

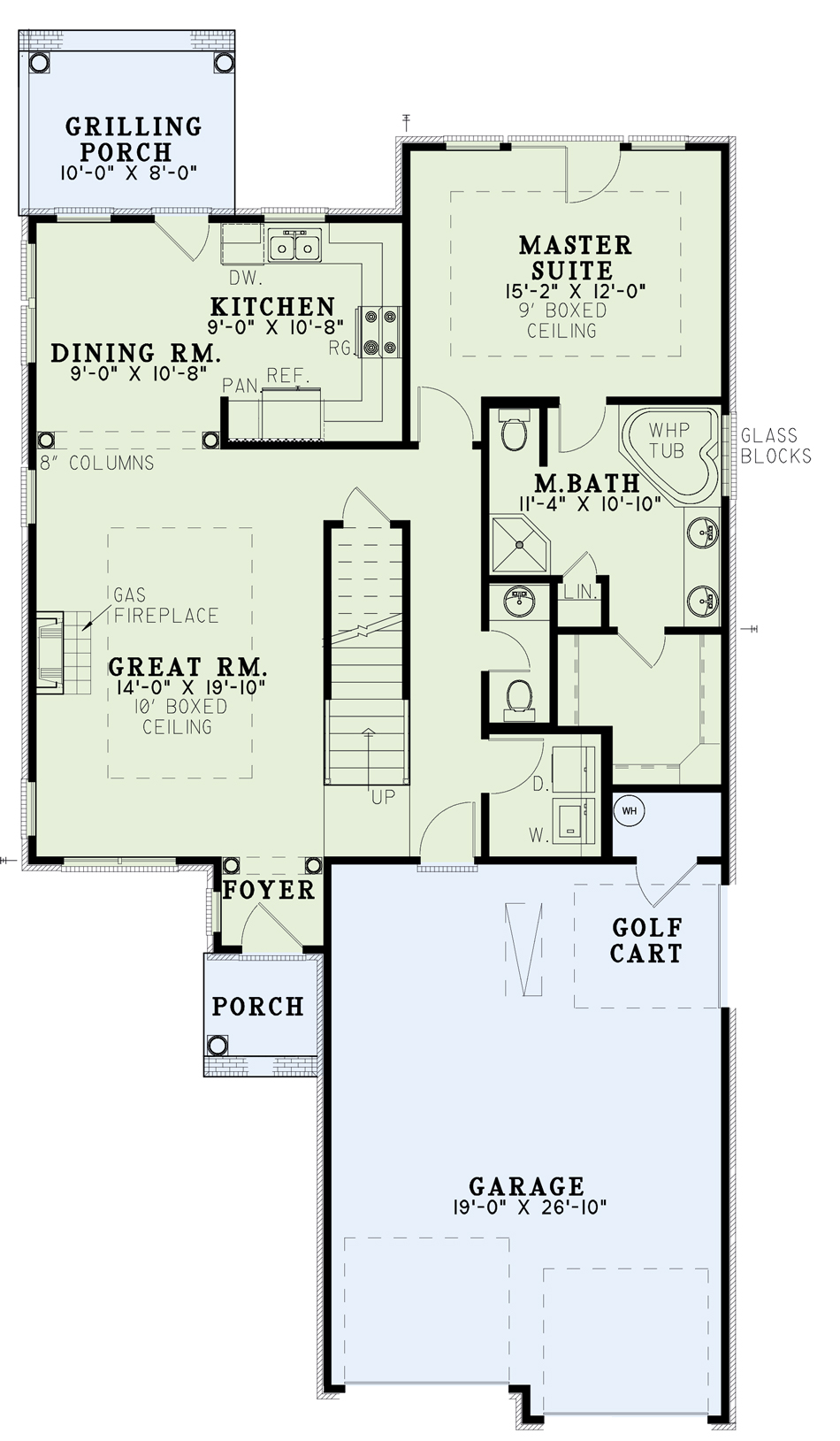

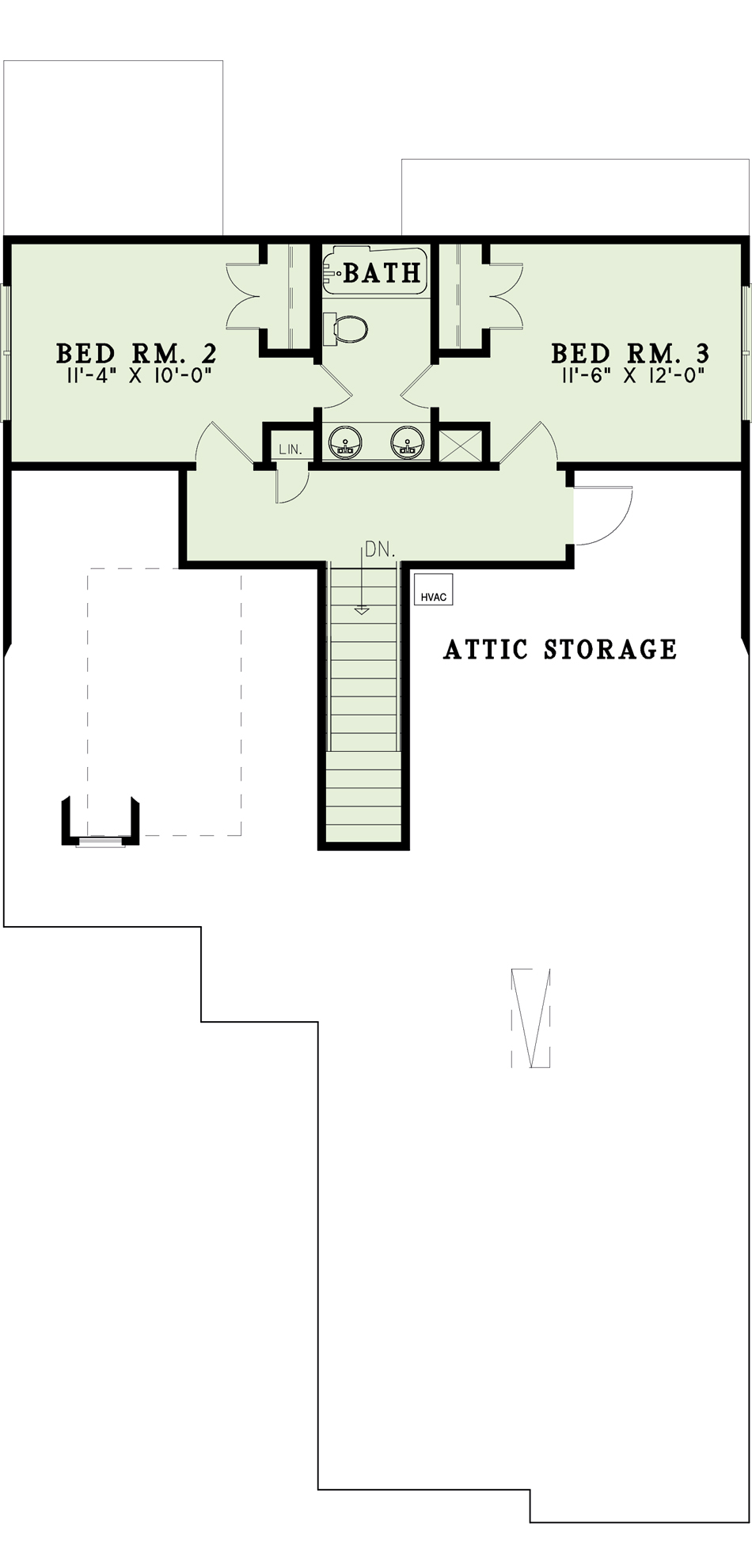

Entering this French Country home, you are led through a traditional foyer enhanced by wooden columns and into a spacious great room- perfect for family get-togethers. Enjoy the privacy of your master suite complete with atrium doors and windows opening onto the rear yard. Delight your friends with your famous hamburgers any time of year on your convenient grilling porch located right off the kitchen. As you travel upstairs, you’ll find two spacious bedrooms with a walk-through bath- a wonderful solution for the kids. This home is full of great storage space, including a huge walk-in attic on the upper floor.


  • Total Living Space:1574Sq.Ft.
  • Main Floor: 1131 Sq.Ft
  • Upper Floor (Sq.Ft.): 443 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 133 Sq.Ft.
  • Garage (Sq.Ft.): 510 Sq.Ft.
  • Total Square Feet: 2217 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
