House Plan 322 Cherry Street, Traditional House Plan
> Floor plans
NDG 322
House Plan 322 Cherry Street, Traditional House Plan
Plan Details
- Plan Number: NDG 322
- Total Living Space:3568Sq.Ft.
- Bedrooms: 3
- Full Baths: 3
- Half Baths: 2
- Garage: Yes 2 Bay
- Garage Type: Court Yard
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 70
- Width In.: N/A
- Depth Ft.: 81
- Depth In.: N/A
Description

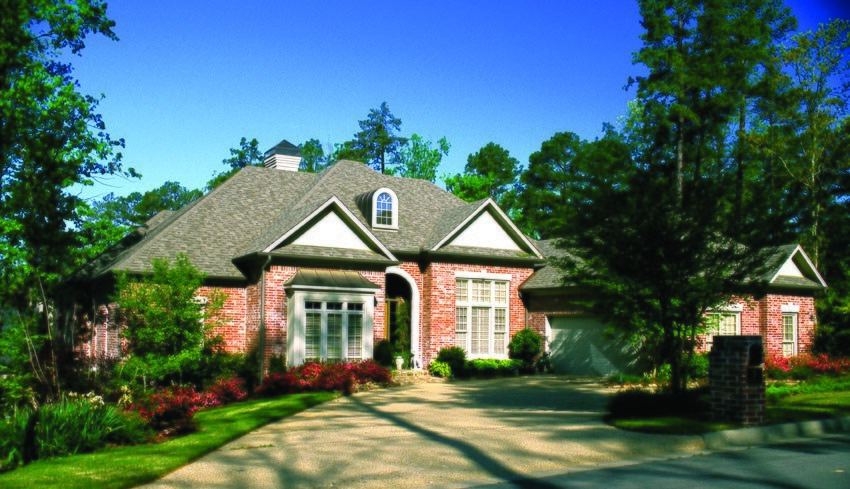

This French traditional plan highlights a courtyard loading garage. Upon entering through the brick arched entry, you’ll notice an open feeling attributed to expansive ceiling heights in the foyer and dining room with the magnificent great room in sight. The kitchen is very functional and has numerous benefits for the cookbook collector. You’ll find solace in the spacious master suite with attractive French doors and a sitting area. Entertain friends and family in the inviting sun room with handy wet bar. Take the party upstairs to the game room for everyone to enjoy.
Specifications
- Total Living Space:3568Sq.Ft.

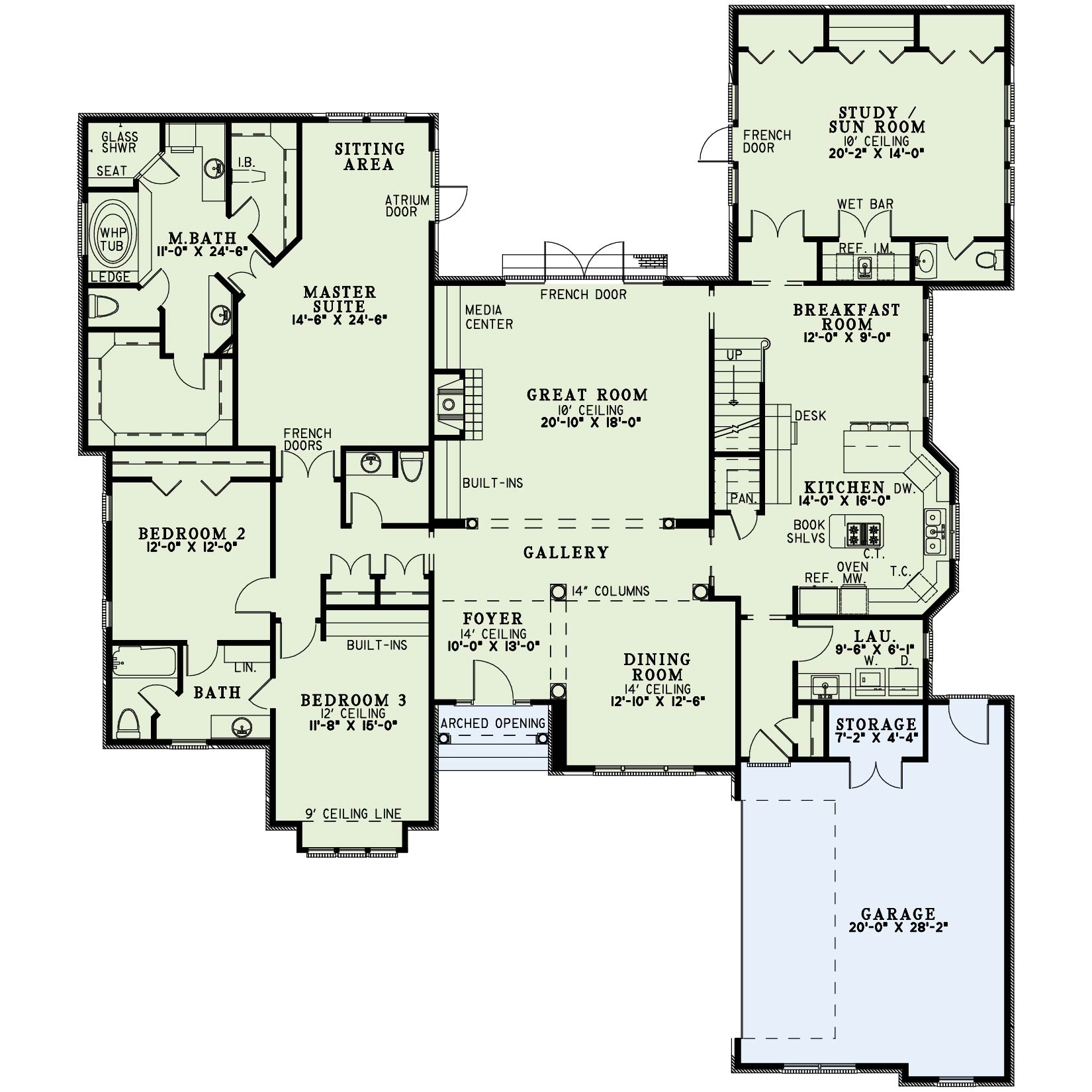

- Main Floor: 3051 Sq.Ft

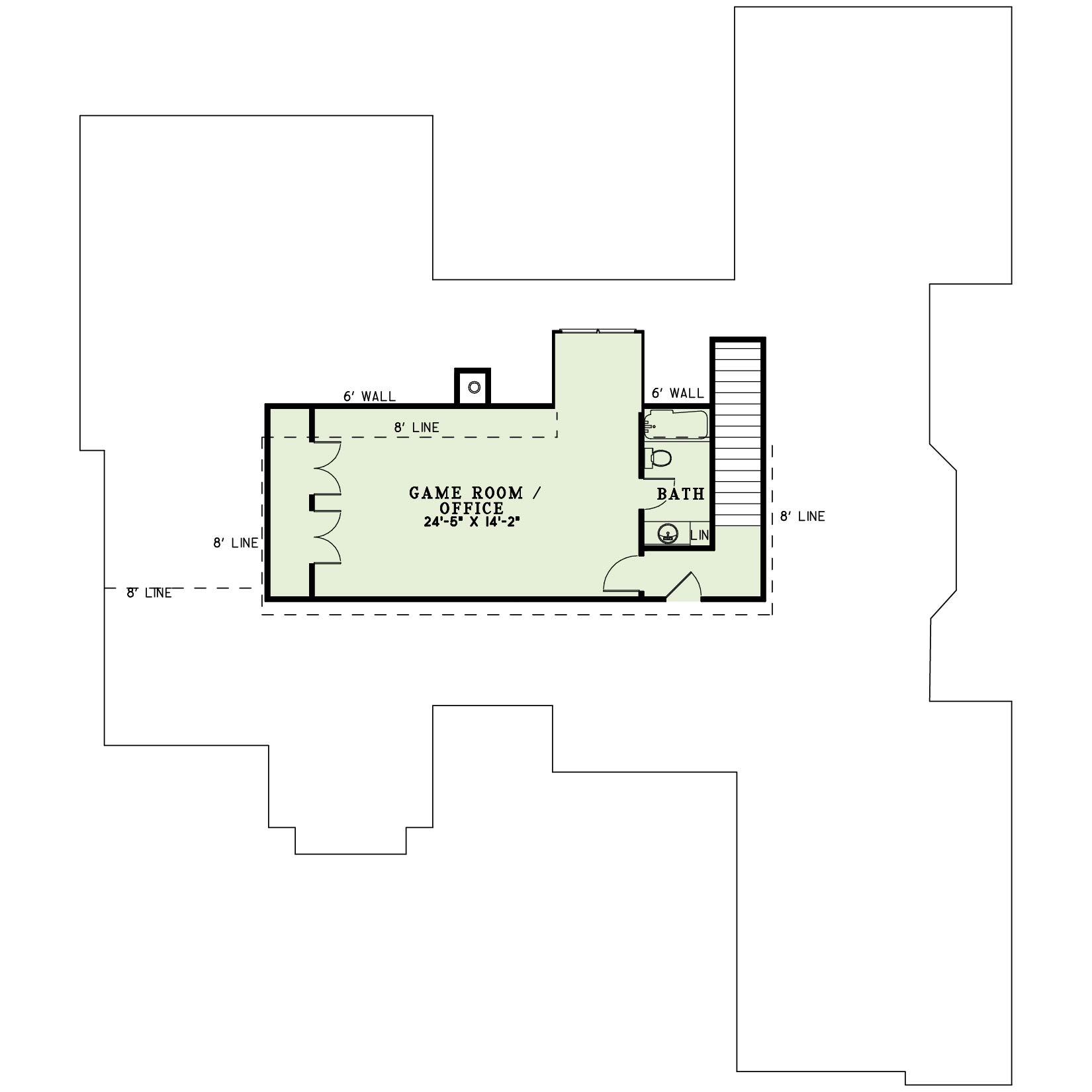

- Upper Floor (Sq.Ft.): 517 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): N/A
- Garage (Sq.Ft.): 563 Sq.Ft.
- Total Square Feet: 4131 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 10
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 27
- Ridge Height (In.): 4
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
