House Plan 334 Poplar Avenue, Modern House Plan

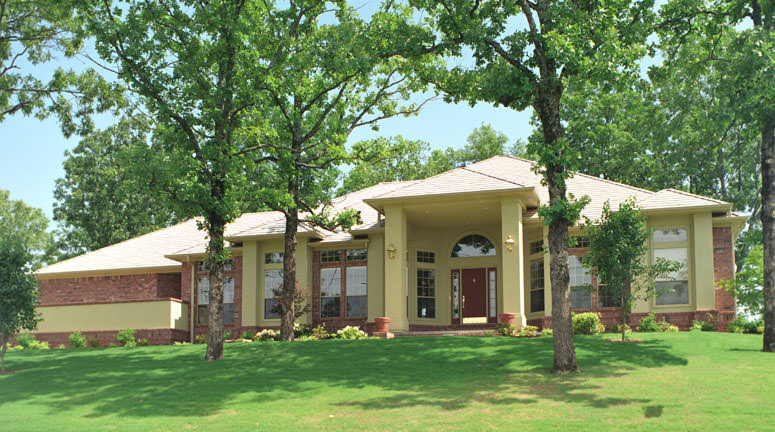

House Plan - NDG334 Front Front View>
House Plan - NDG334 Front Front View

Floor plans

NDG 334

House Plan 334 Poplar Avenue, Modern House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 334
  • Total Living Space:3391Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 95
  • Width In.: N/A
  • Depth Ft.: 47
  • Depth In.: 9


Picture yourself living in this home. Walking into the foyer, you’ll notice columns, French doors and a convenient wet bar located in the spacious dining room. Your game room will provide countless hours of entertainment with fluid access to the kitchen for refreshments. French doors access your master suite, complete with a huge master bath with “his and her” walk-in closets and an adjoining office. Traveling upstairs, you’ll discover two more bedrooms and a future bonus area that can be used as a kids room.


  • Total Living Space:3391Sq.Ft.

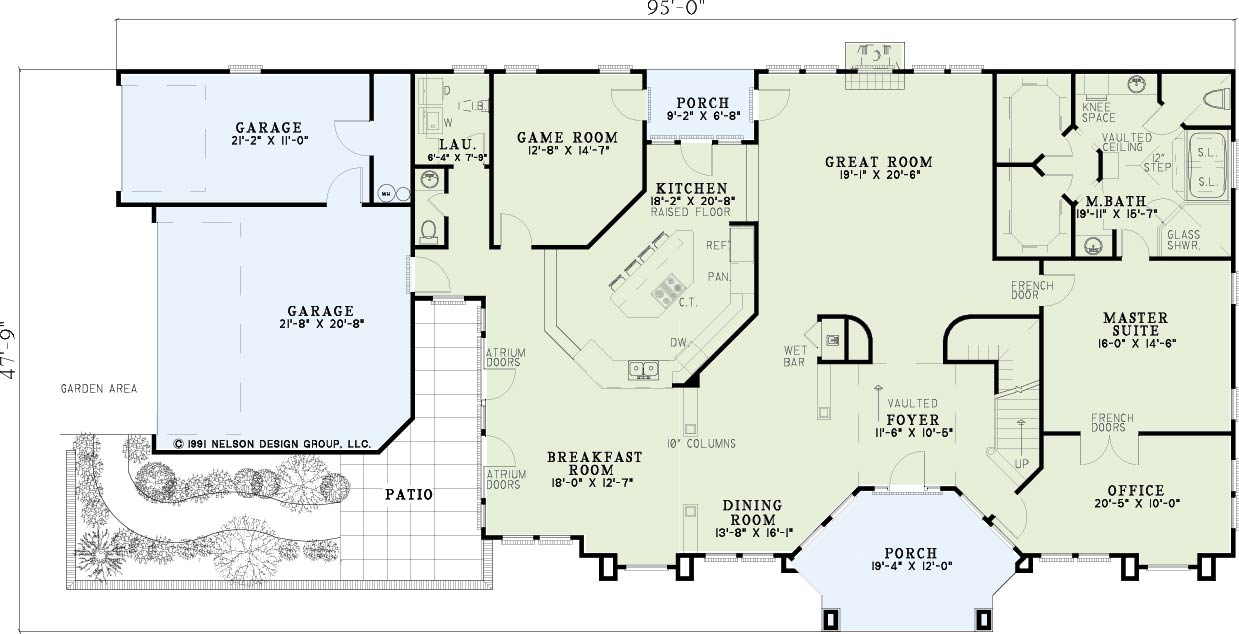

  • Main Floor: 2634 Sq.Ft

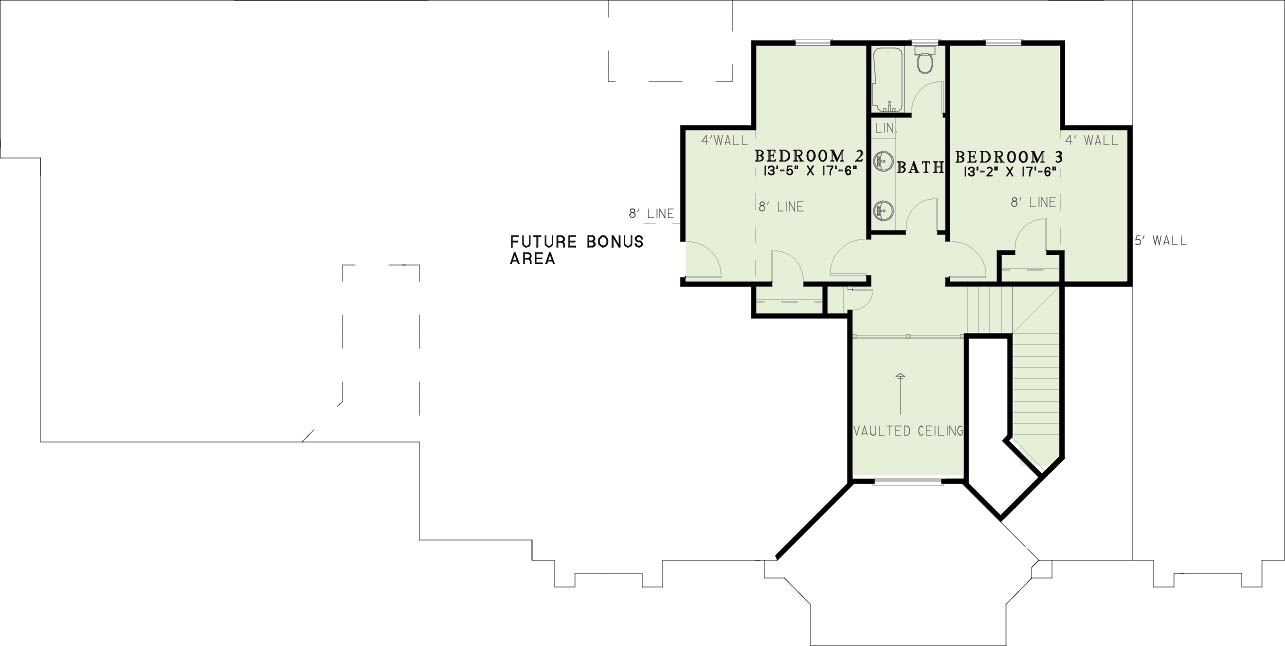

  • Upper Floor (Sq.Ft.): 757 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 305 Sq.Ft.
  • Garage (Sq.Ft.): 681 Sq.Ft.
  • Total Square Feet: 4377 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: 7:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
