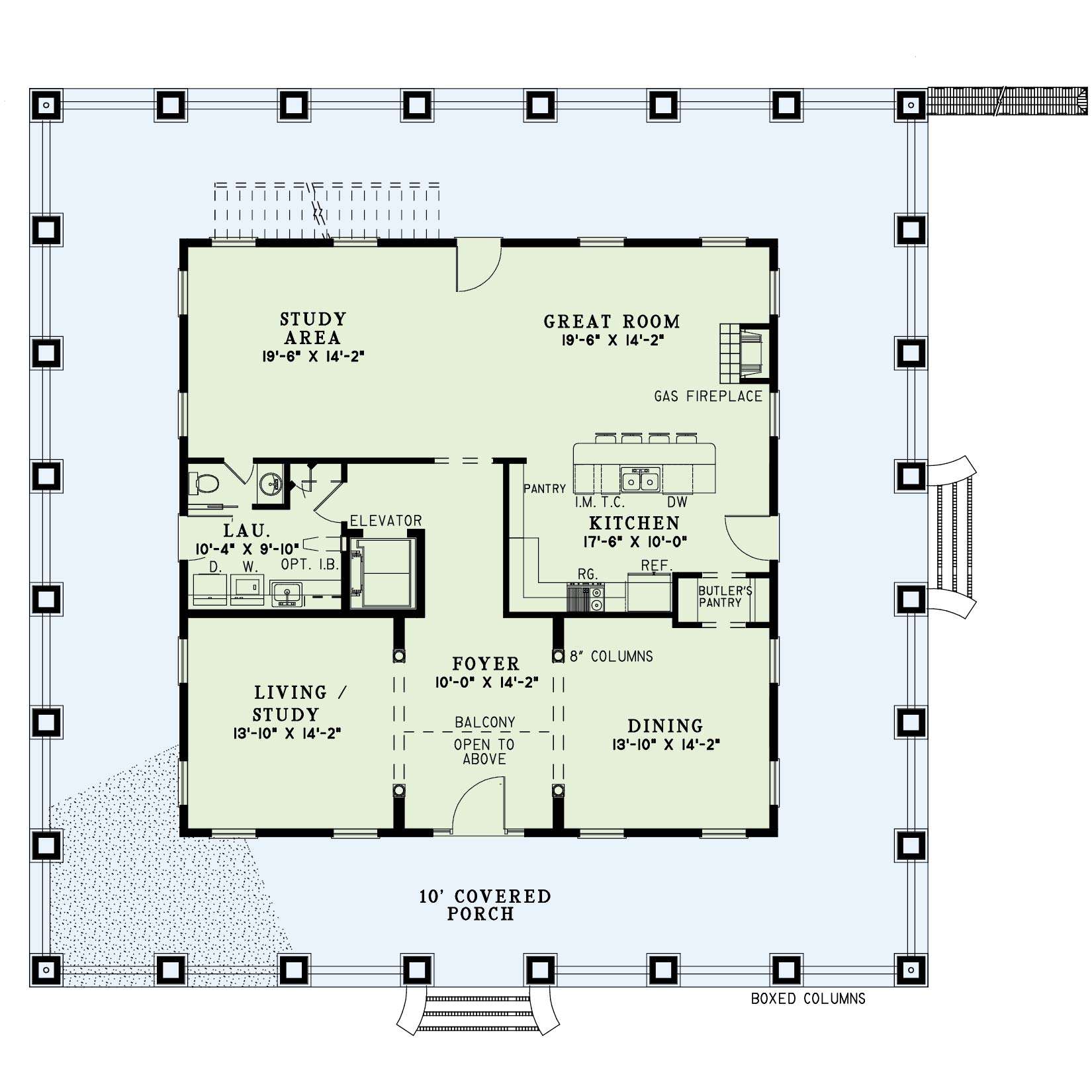

House Plan NDG 342 Main Floor

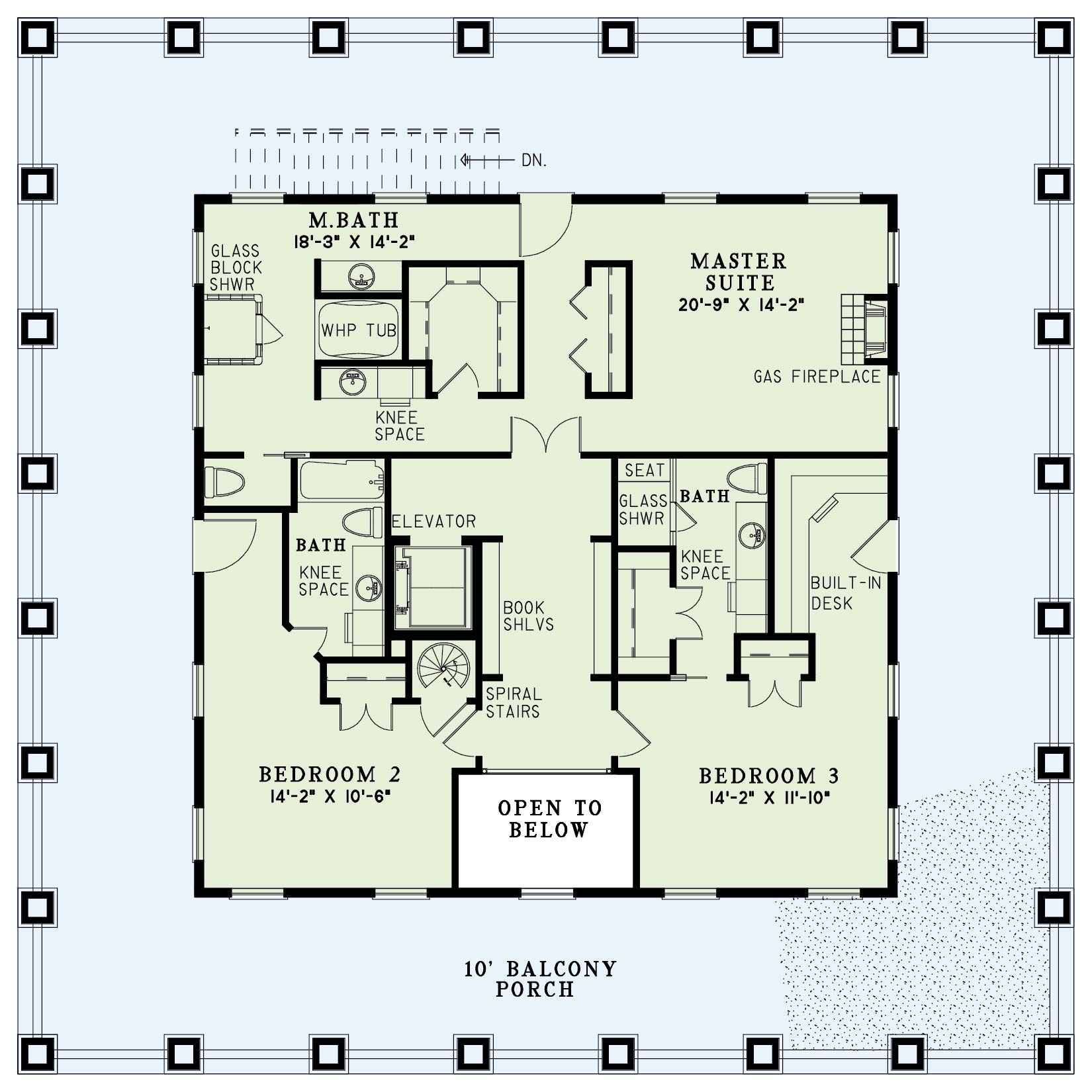

House Plan NDG 342 Second Floor

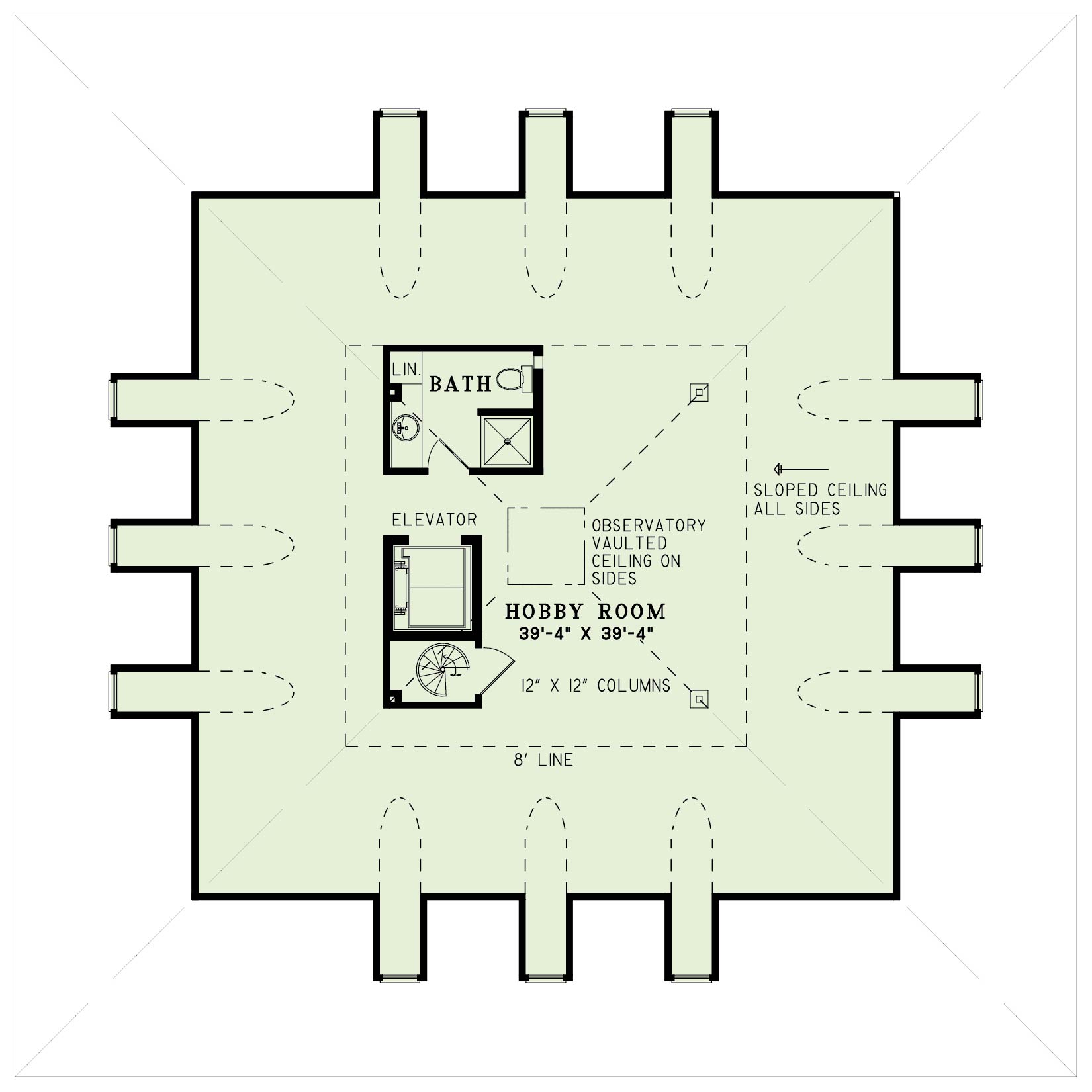

House Plan NDG 342 Upper Floor

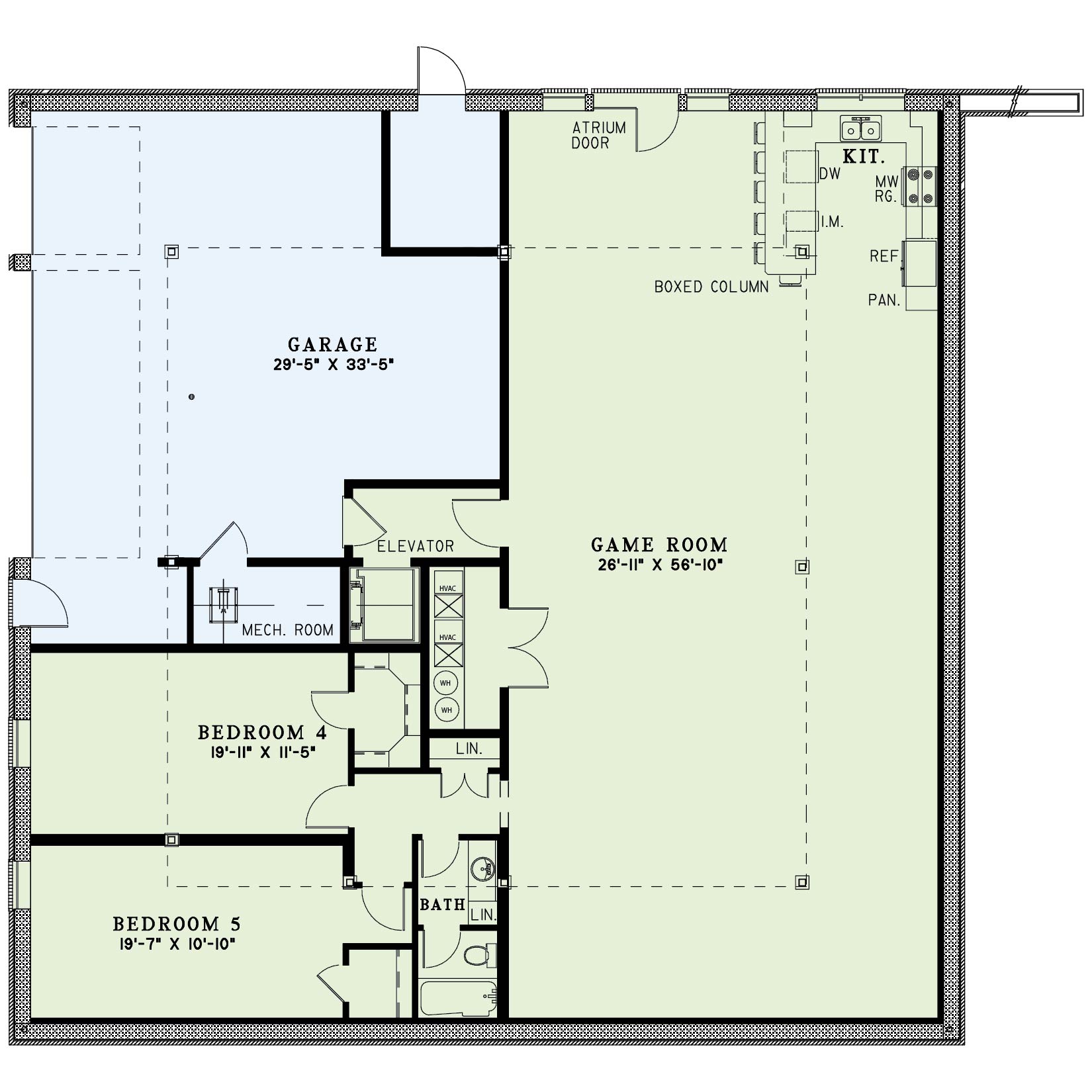

House Plan NDG 342 Basement

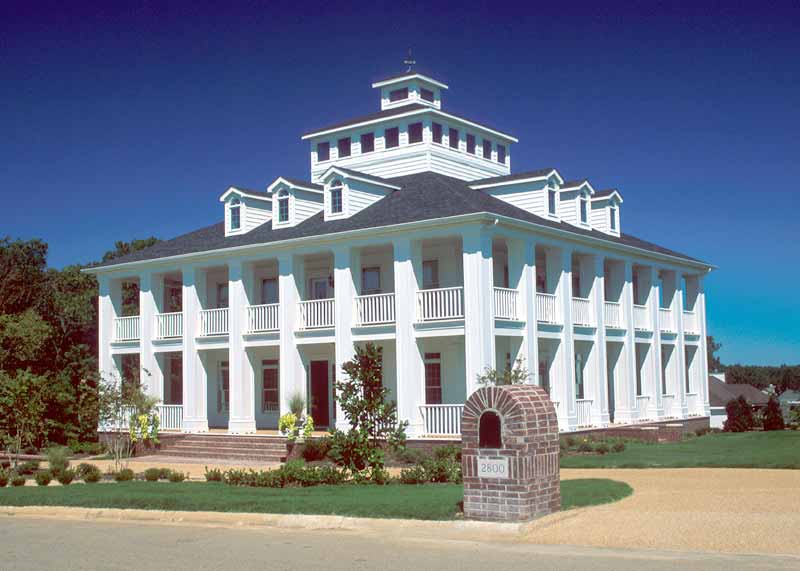

House Plan - NDG342 Front Front View>

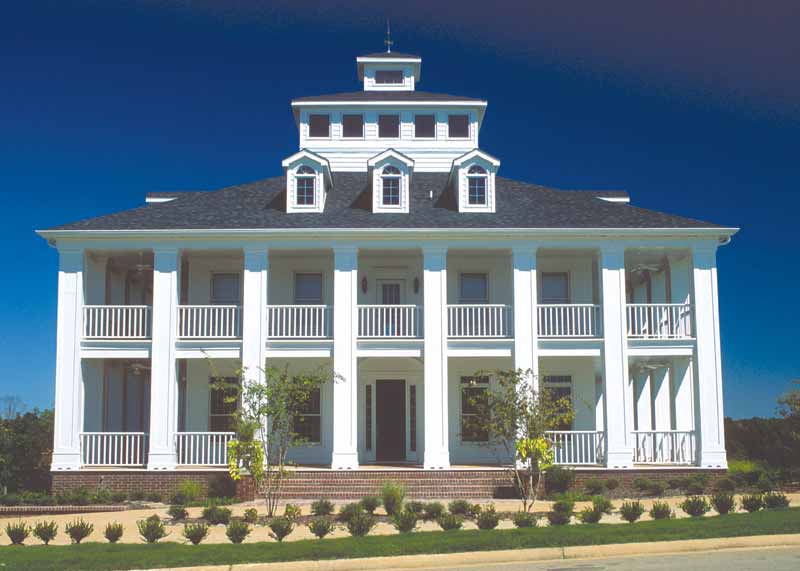

House Plan - NDG342 Front 2 Front View>
House Plan NDG 342 Main Floor
House Plan NDG 342 Second Floor
House Plan NDG 342 Upper Floor
House Plan NDG 342 Basement
House Plan - NDG342 Front Front View
House Plan - NDG342 Front 2 Front View

Floor plans

NDG 342

House Plan 342 Dogwood Avenue, Colonial Classical Federal House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 342
  • Total Living Space:7433Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 5
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 4
  • Width Ft.: 60
  • Width In.: 2
  • Depth Ft.: 60
  • Depth In.: 2

Description

We have created a Southern plantation style home that emulates tradition as its finest. Wrap around porches with boxed columns will welcome family and friends with the opportunity for sipping lemonade while engaging in outdoor conversation. Bedrooms on the upper floor enable close monitoring of the younger children while the older children find themselves on the lower level with a massive game room and kitchen area. Access all floors of this home by the elevator or spiral staircase to the expansive hobby room and observatory.

Specifications

  • Total Living Space:7433Sq.Ft.
  • Main Floor: 1600 Sq.Ft
  • Upper Floor (Sq.Ft.): 1530 Sq.Ft.
  • Lower Floor (Sq.Ft.): 2559 Sq.Ft.
  • Bonus Room (Sq.Ft.): 1744 Sq.Ft.
  • Porch (Sq.Ft.): 4034 Sq.Ft.
  • Garage (Sq.Ft.): 940 Sq.Ft.
  • Total Square Feet: 12407 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 48
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
