House Plan 343 Windstone Place, Village at Windstone II House Plan

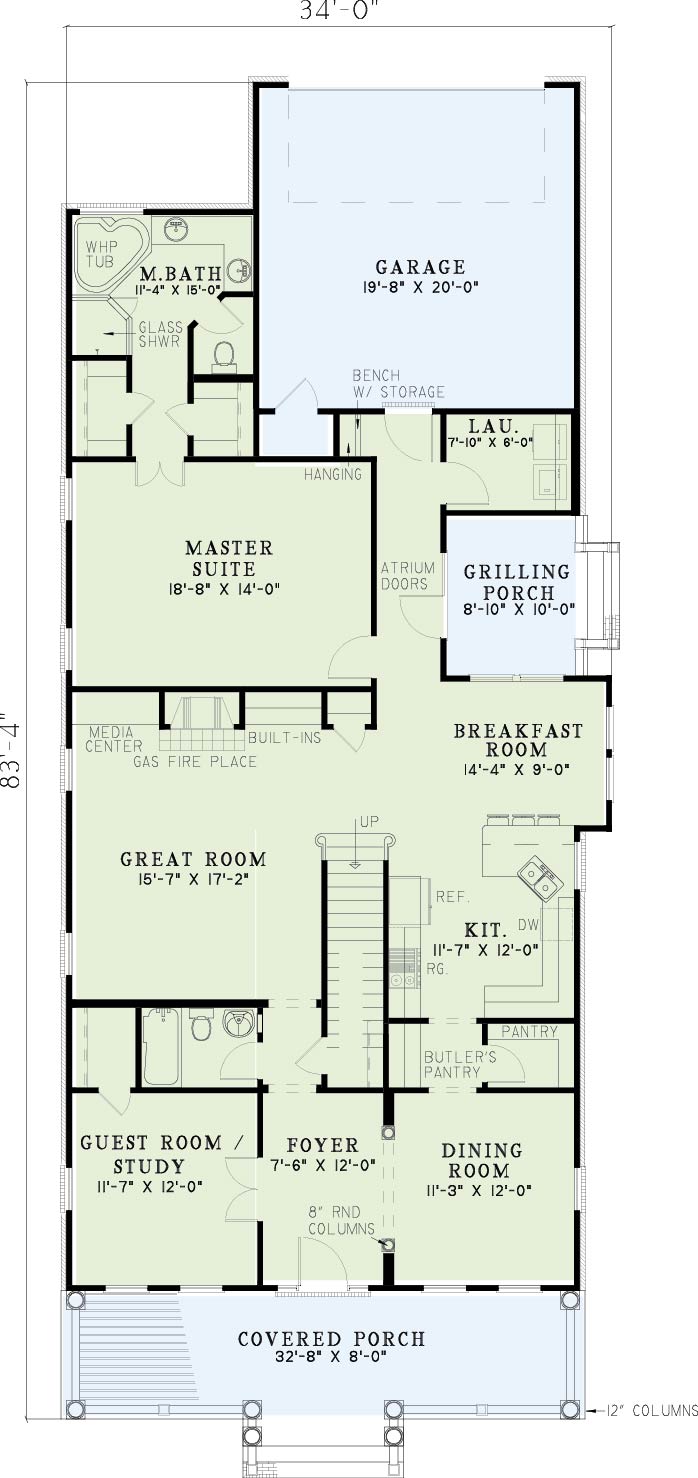

House Plan NDG 343 Main Floor

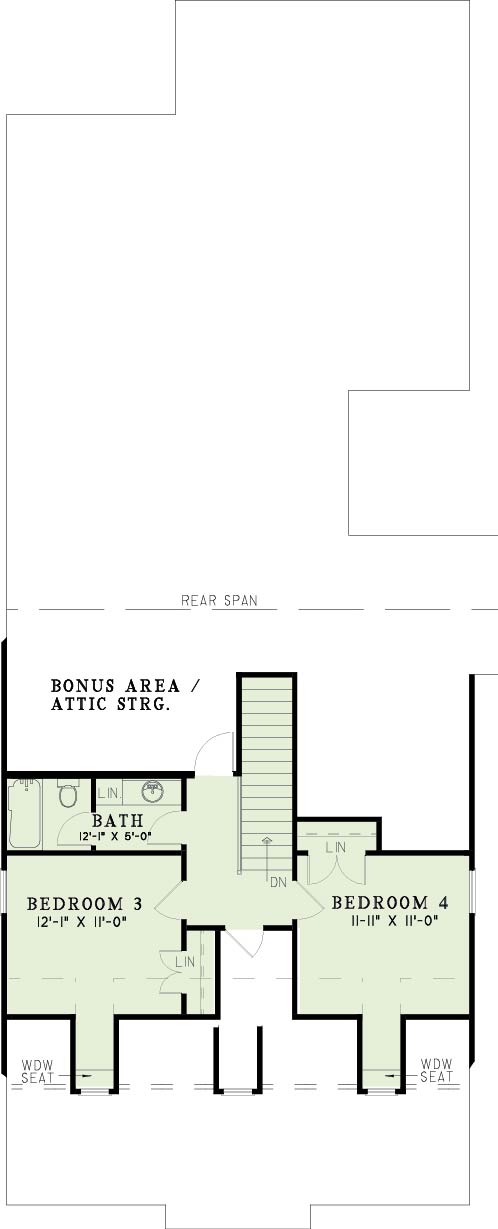

House Plan NDG 343 Upper Floor

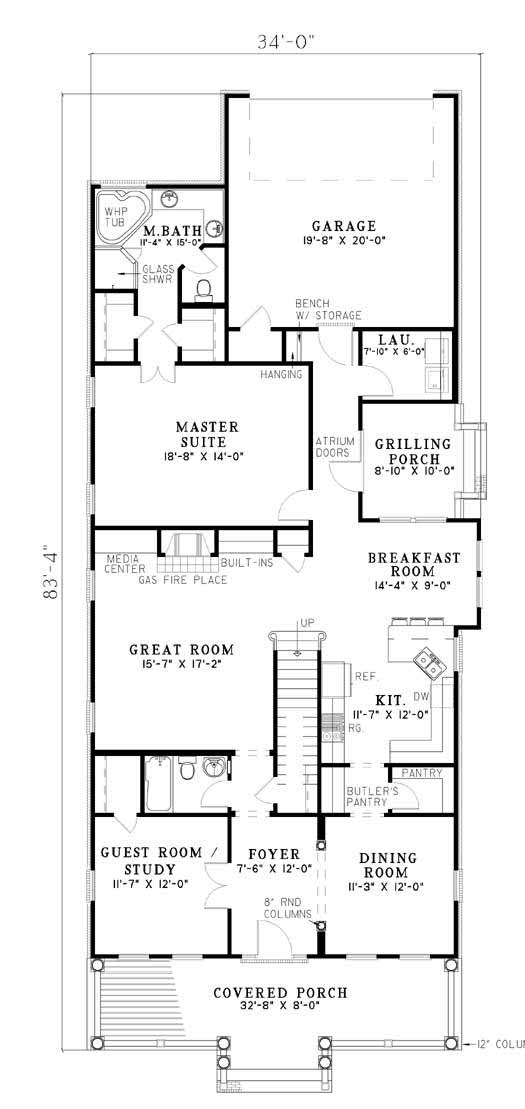

House Plan NDG 343 Main Floor

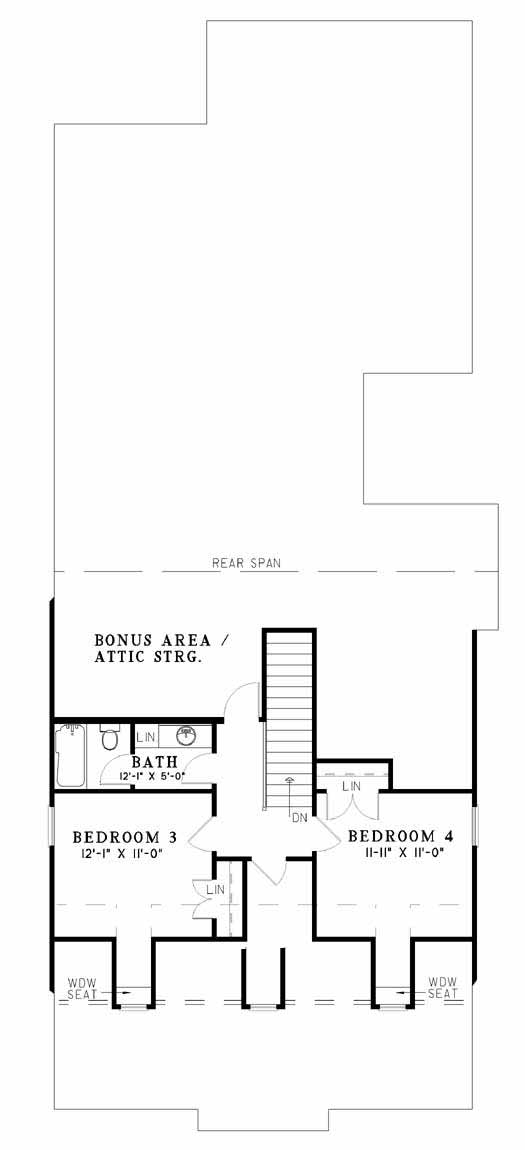

House Plan NDG 343 Upper Floor

Floor plans

NDG 343

House Plan 343 Windstone Place, Village at Windstone II House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 343
  • Total Living Space:2286Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 32
  • Width In.: N/A
  • Depth Ft.: 83
  • Depth In.: 4

Description

Upon entering this home notice the elegant dining room adjoined to a butler pantry, creating fluid entry to a marvelously spacious kitchen. The great room, complete with a romantic fireplace and built-in media center, is at the heart of this design with an open entry to the breakfast room. Enjoy countless possibilities entertaining on your convenient grilling porch. Stairs with left and right hand volutes take you to the spacious upper level. Two bedrooms with window seats, a full bath, and a bonus area with attic storage provide plenty of room for the kids.

Specifications

  • Total Living Space:2286Sq.Ft.
  • Main Floor: 1831 Sq.Ft
  • Upper Floor (Sq.Ft.): 455 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 356 Sq.Ft.
  • Garage (Sq.Ft.): 429 Sq.Ft.
  • Total Square Feet: 3071 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
