House Plan 355 Windstone Place, Village at Windstone II House Plan

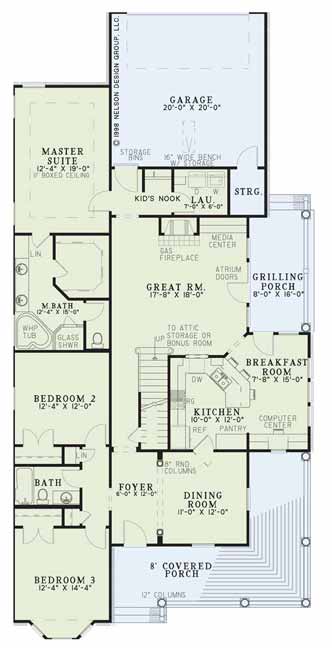

House Plan NDG 355 Main Floor
House Plan NDG 355 Main Floor

Floor plans

NDG 355

House Plan 355 Windstone Place, Village at Windstone II House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 355
  • Total Living Space:1927Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 39
  • Width In.: N/A
  • Depth Ft.: 82
  • Depth In.: 4

Description

Imagine yourself in this Nelson Design Group home. Each day is a dream come true as you enjoy quiet summer evenings over iced tea and conversation on your covered porch. Become the perfect host or hostess of charming dinners in your dining room easily and conveniently accessible to the kitchen and breakfast room. A side grilling porch off the breakfast room provides ample space for entertaining as well. After dining, adjourn to the great room for coffee in front of the gas fireplace. Then retreat to a wonderful master suite complete with master bath including a whirlpool tub and double vanity. But don’t worry about the kids- they’ll have plenty of space to play in the proposed upper level bonus area with nine foot ceilings.

Specifications

  • Total Living Space:1927Sq.Ft.
  • Main Floor: 1927 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A

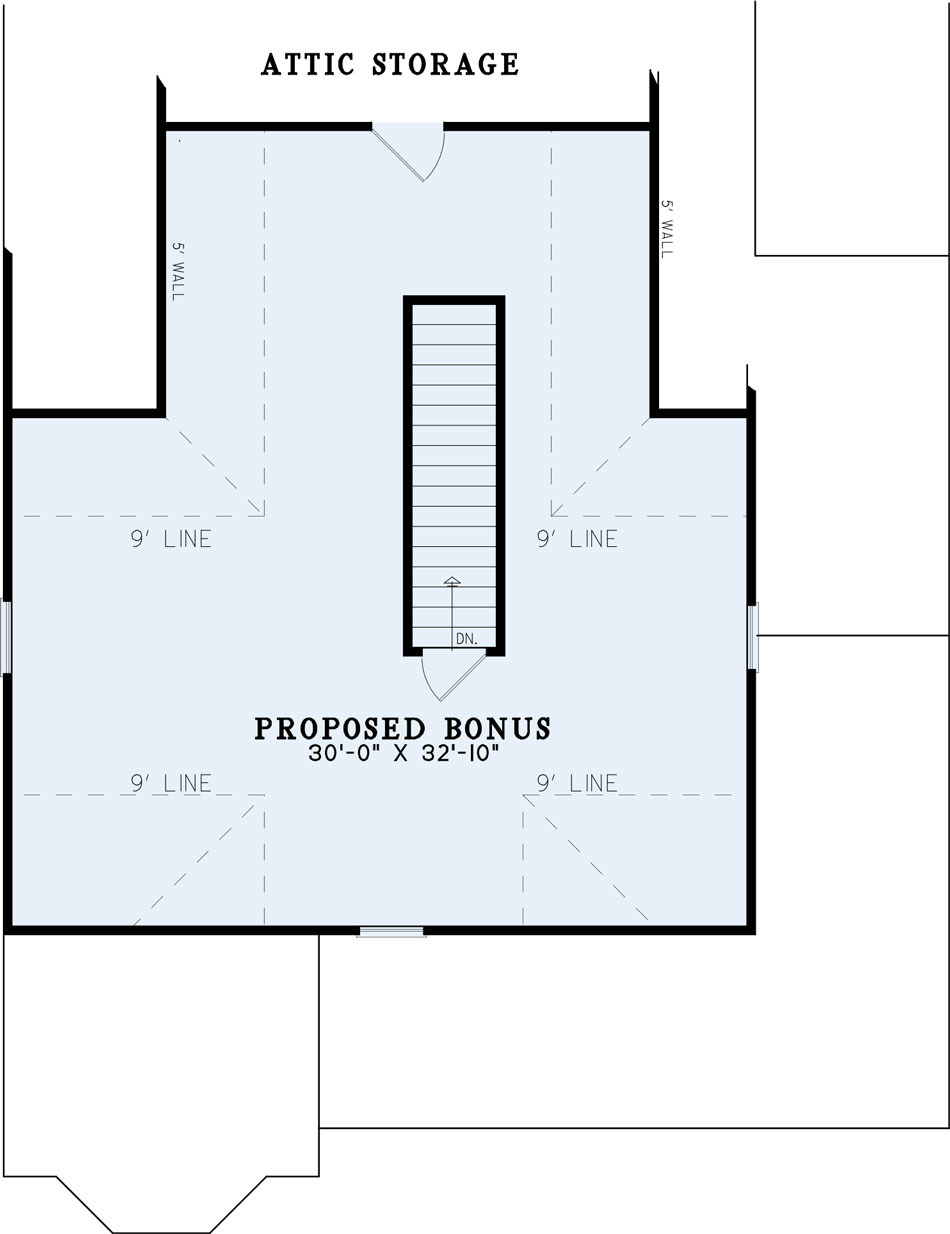

  • Bonus Room (Sq.Ft.): 909 Sq.Ft.
  • Porch (Sq.Ft.): 432 Sq.Ft.
  • Garage (Sq.Ft.): 448 Sq.Ft.
  • Total Square Feet: 2807 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 6:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
