House Plan 360 Windstone Place, Village at Windstone II House Plan

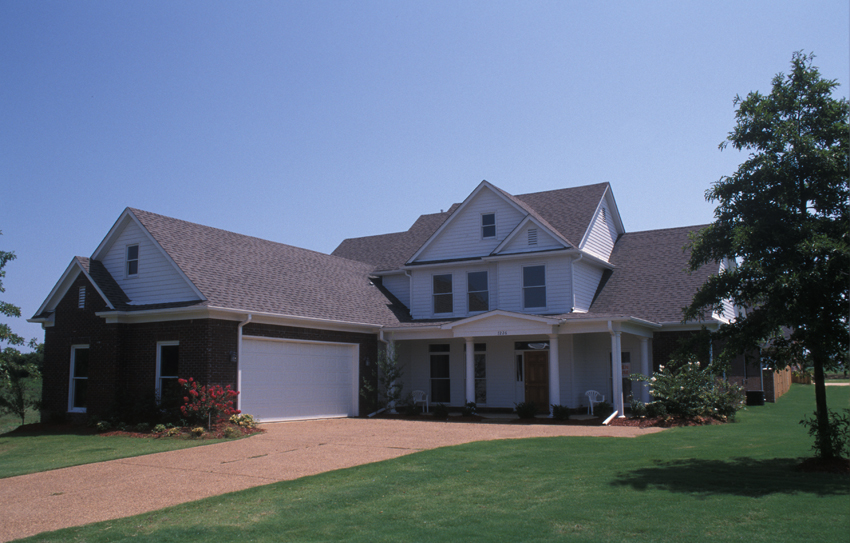

House Plan - ndg360 1 edit Front View>
House Plan - ndg360 1 edit Front View

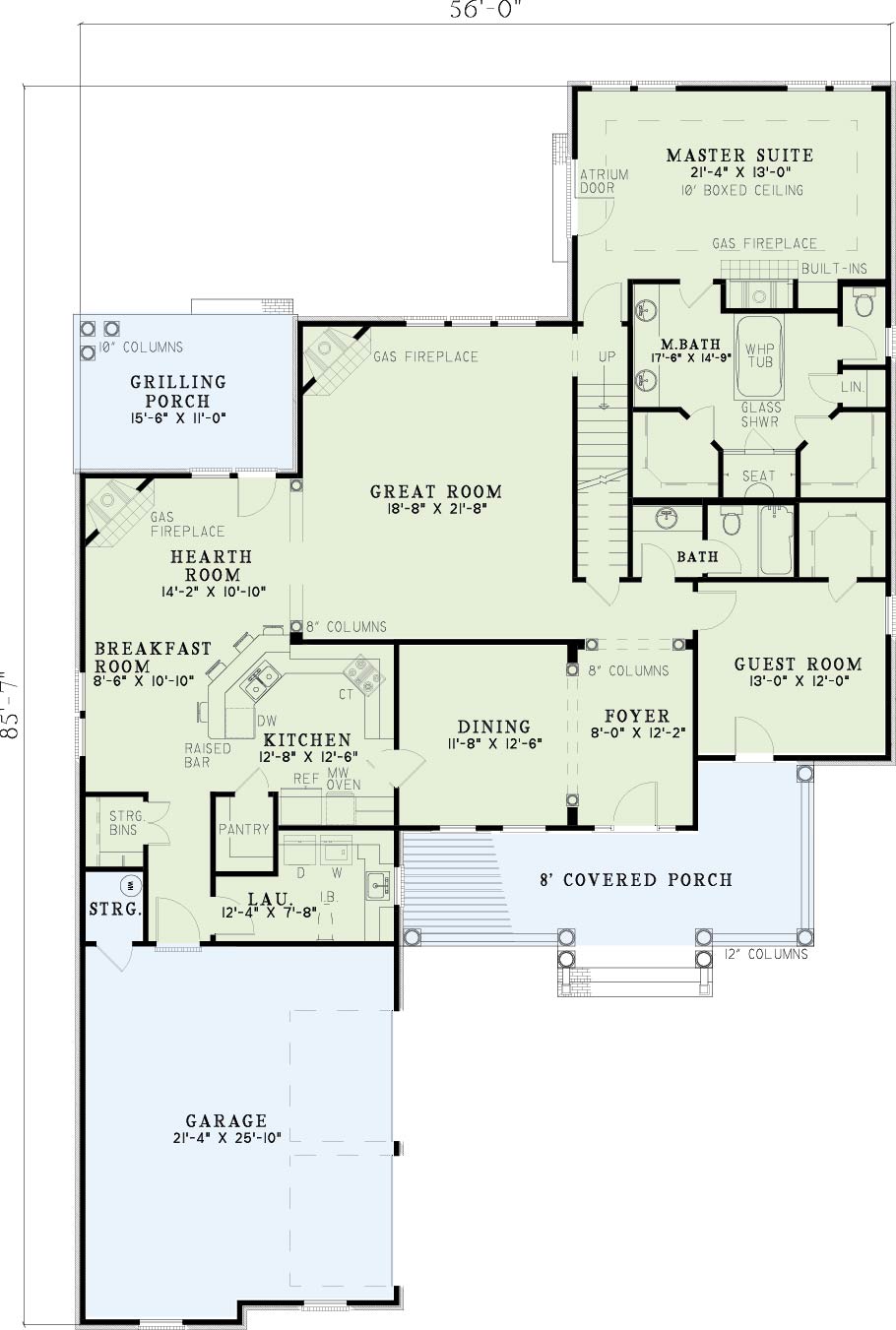

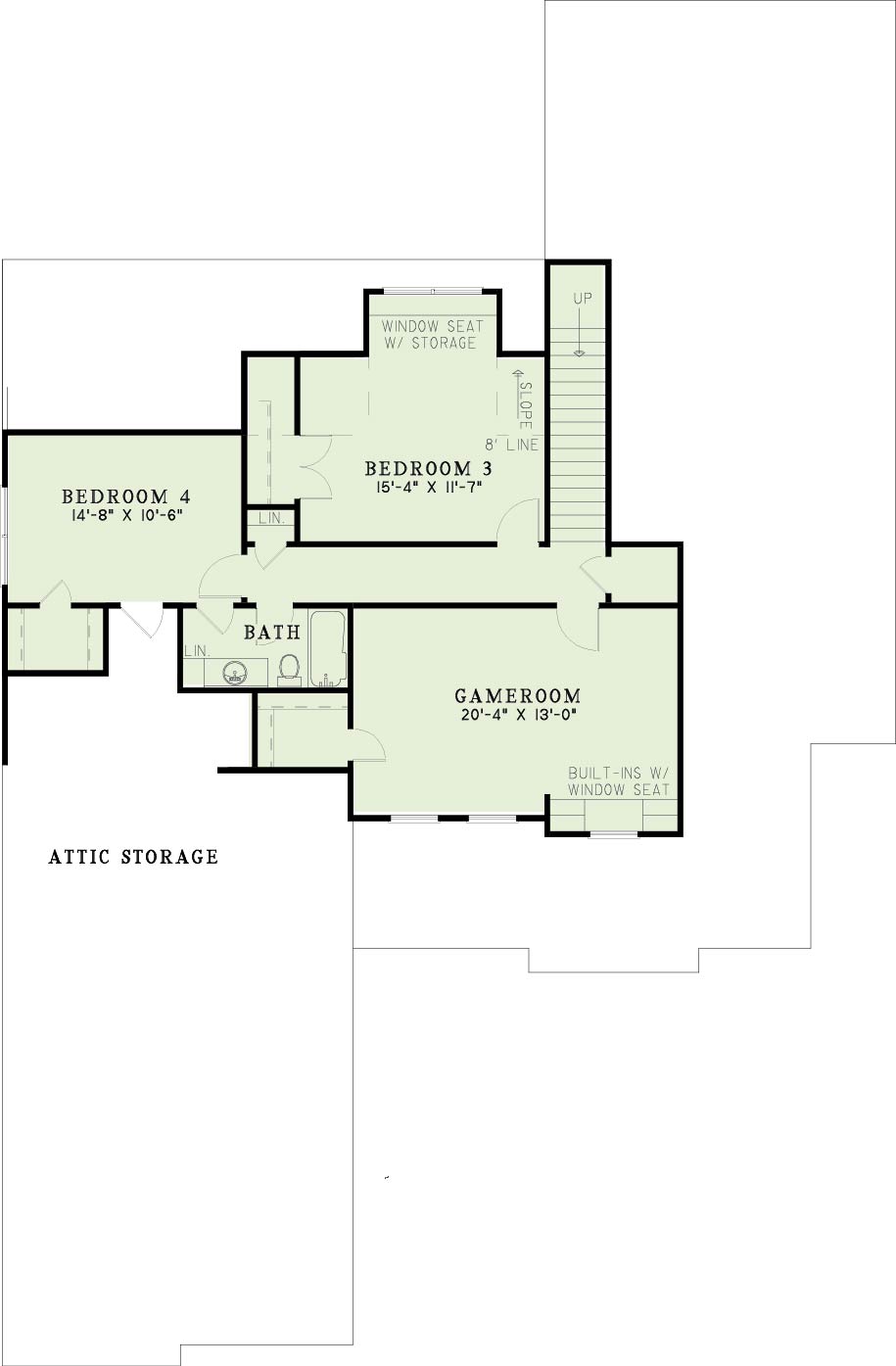

Floor plans

NDG 360

House Plan 360 Windstone Place, Village at Windstone II House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 360
  • Total Living Space:3206Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 56
  • Width In.: N/A
  • Depth Ft.: 85
  • Depth In.: 7


This home purely defines true southern charm and beauty. Begin family traditions with game night in the great room. Or retreat to your secluded master suite, with a gas fireplace and access to the backyard- a perfect setting for a romantic evening in front of the fire. A unique hearth room is located just off the kitchen and connected to a grilling porch. A private guest room in the front is perfect for unexpected guests. Traveling to the upper level, you’ll find the perfect haven for the kids- two bedrooms, a game room with a window seat and plenty of storage.


  • Total Living Space:3206Sq.Ft.
  • Main Floor: 2257 Sq.Ft
  • Upper Floor (Sq.Ft.): 949 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 441 Sq.Ft.
  • Garage (Sq.Ft.): 585 Sq.Ft.
  • Total Square Feet: 4232 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
