House Plan 392B Country Club Drive, Traditional House Plan

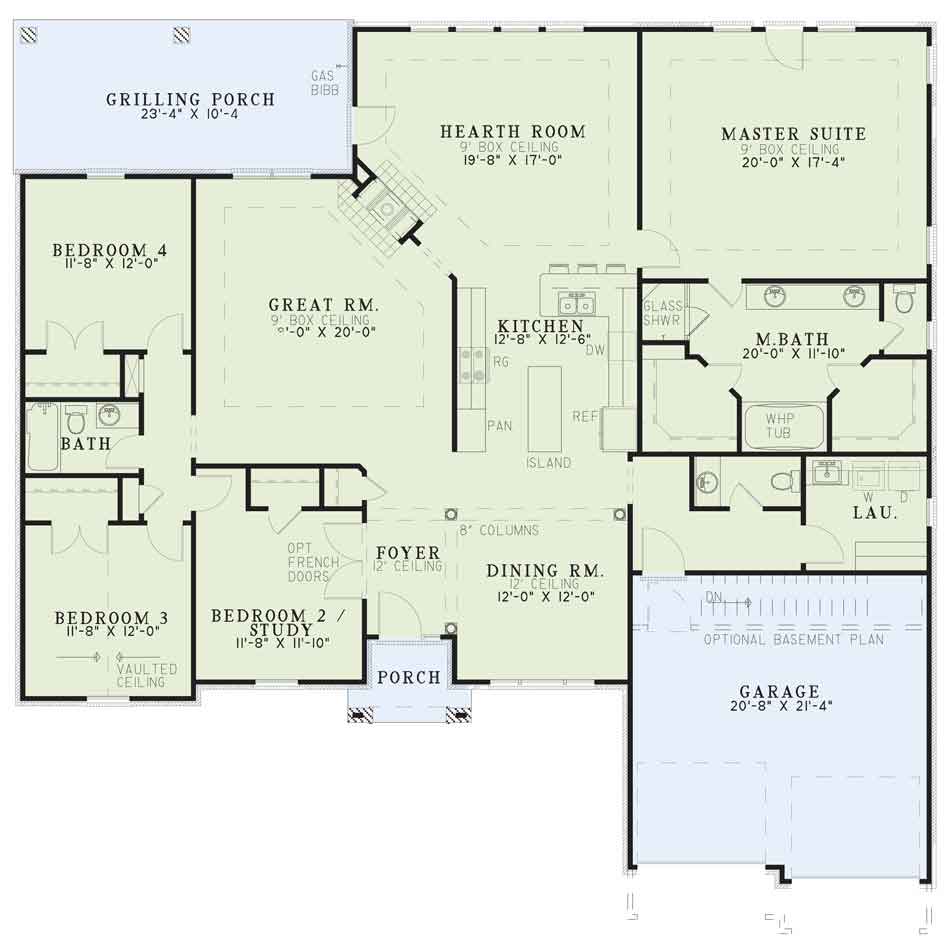

House Plan NDG 392B Main Floor
House Plan NDG 392B Main Floor

Floor plans

NDG 392B

House Plan 392B Country Club Drive, Traditional House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 392B
  • Total Living Space:2554Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 64
  • Width In.: N/A
  • Depth Ft.: 60
  • Depth In.: 2


This four-bedroom home boasts a arched entry and choice of two exciting exteriors. Once inside, guests will appreciate the lavish columns offsetting the formal dining room and optional sleek French doors to the study. Boxed ceilings throughout enhance the open floor plan. A pass-through fireplace between the great room and hearth room extends class and elegance to this neo-traditional home. The large walk-through kitchen allows unimpeded access to all living areas of the house.


  • Total Living Space:2554Sq.Ft.
  • Main Floor: 2554 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 290 Sq.Ft.
  • Garage (Sq.Ft.): 441 Sq.Ft.
  • Total Square Feet: 3285 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
