House Plan 401 Urban Lane, Urban House Plan

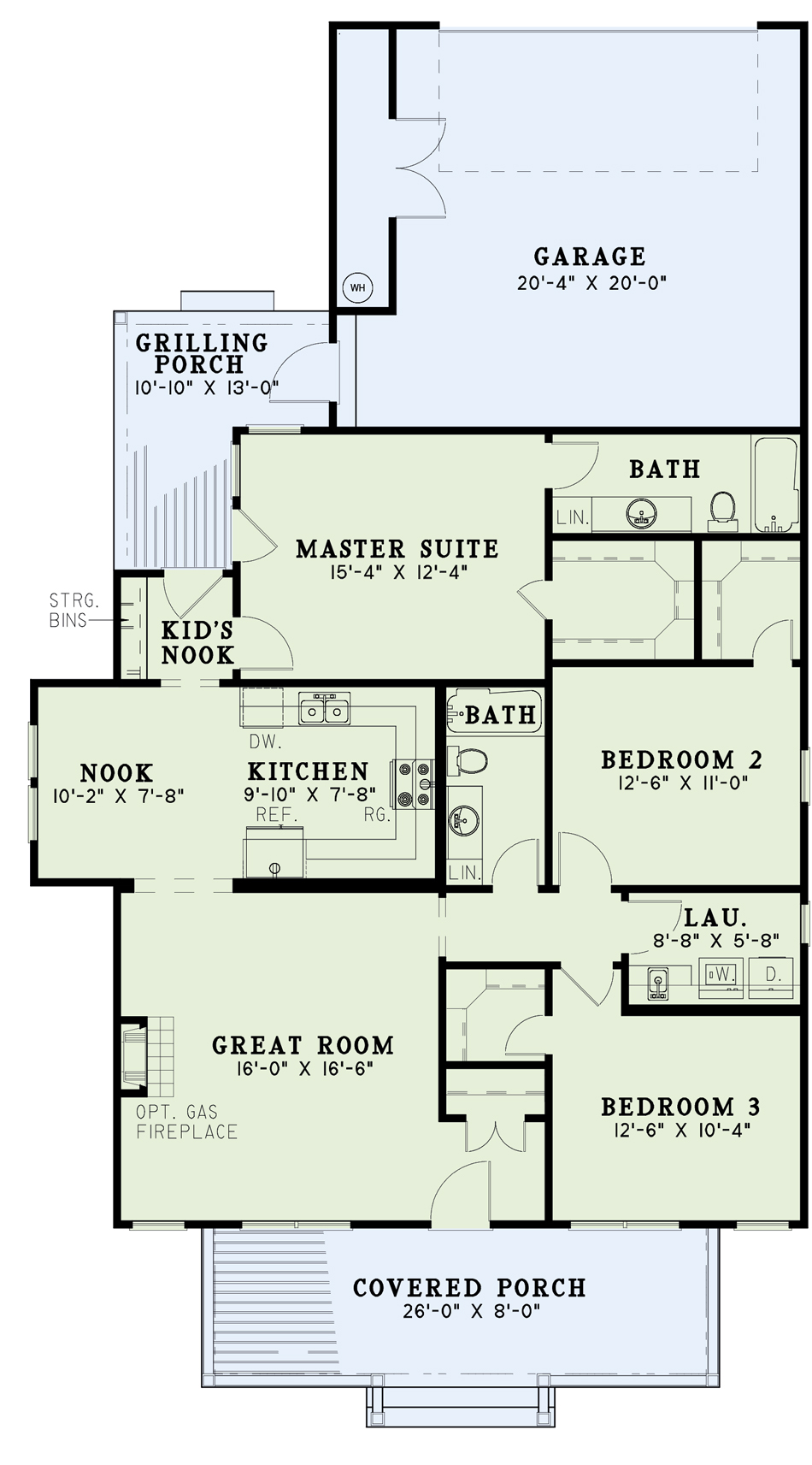

Floor plans

NDG 401

House Plan 401 Urban Lane, Urban House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 401
  • Total Living Space:1401Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 39
  • Width In.: N/A
  • Depth Ft.: 70
  • Depth In.: 6


This home has classic southern traditional charm. Picture yourself gazing in the distance on the front covered porch of your new home as the sun sets. Traveling inside you’ll feel right a home in the spacious great room with optional fireplace. You’ll start family traditions in the cozy breakfast nook with access to the kid’s nook which includes built-in storage bins. The rear side grilling porch, with access to the master suite will make entertaining a breeze on those warm summer weekends. As night falls, you’ll find peace in your master suite with private bath and large walk-in closet. Two bedrooms with large walk-in closets complete the design.


  • Total Living Space:1401Sq.Ft.
  • Main Floor: 1401 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 314 Sq.Ft.
  • Garage (Sq.Ft.): 488 Sq.Ft.
  • Total Square Feet: 2203 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
