House Plan 405 Carriage Hill, Multi-Family House Plan

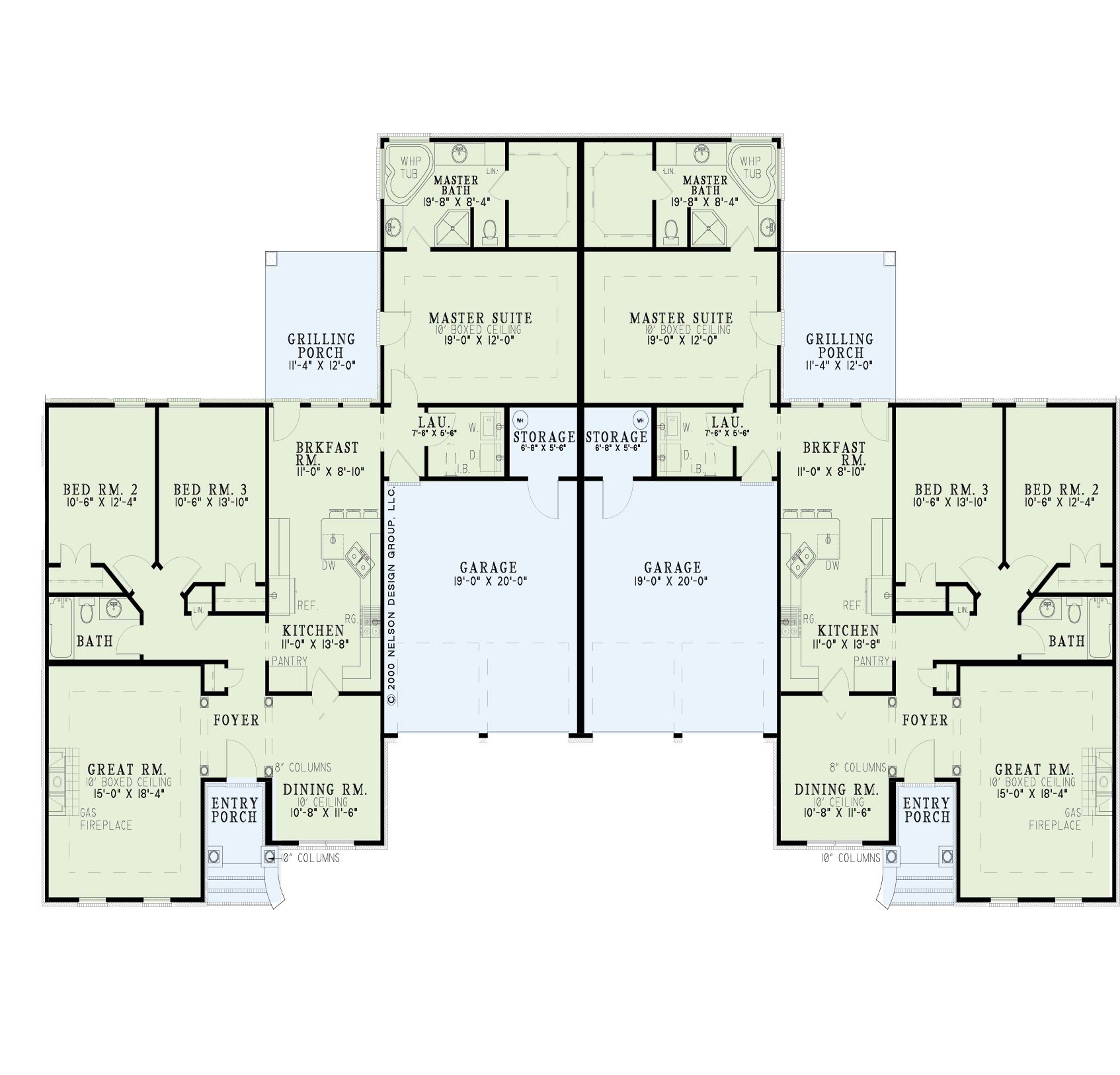

House Plan NDG 405 Main Floor
House Plan NDG 405 Main Floor

Floor plans

NDG 405

House Plan 405 Carriage Hill, Multi-Family House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 405
  • Total Living Space:1698Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 105
  • Width In.: 4
  • Depth Ft.: 60
  • Depth In.: 6


Entering through majestic columns into the traditional foyer, you instantly feel the grandeur of this Traditional Neighborhood home. Imagine an evening of exquisite cuisine as you entertain your close friends and neighbors in the elegant dining room enhanced by ten foot ceilings and beautifully crafted columns. A grilling porch, located off the spacious kitchen and breakfast room, allows occasional backyard barbecues with your neighbors. After long workdays, retreat to a private master suite and relax in your whirlpool tub.


  • Total Living Space:1698Sq.Ft.
  • Main Floor: 1698 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 456 Sq.Ft.
  • Garage (Sq.Ft.): 760 Sq.Ft.
  • Total Square Feet: 2914 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
