House Plan 407 Rosewood, Multi-Family House Plan

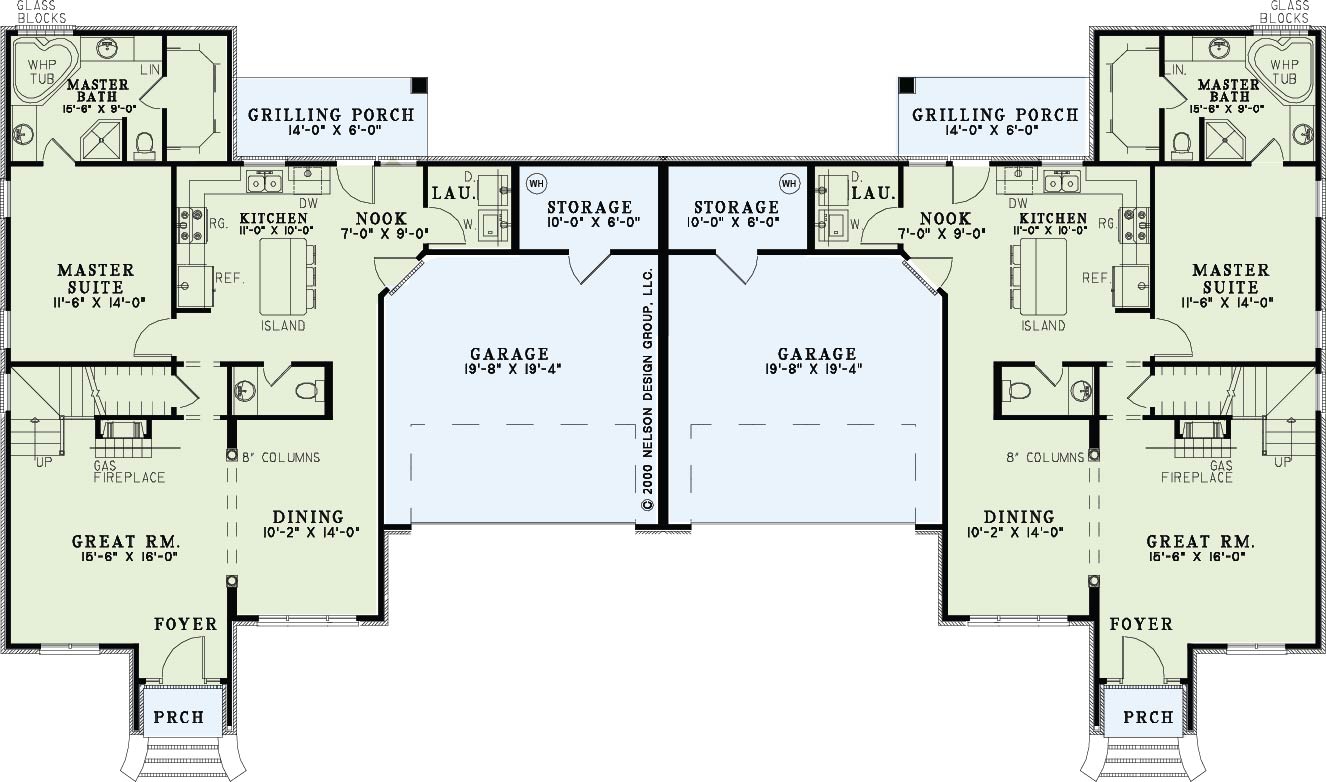

House Plan NDG 407 Main Floor

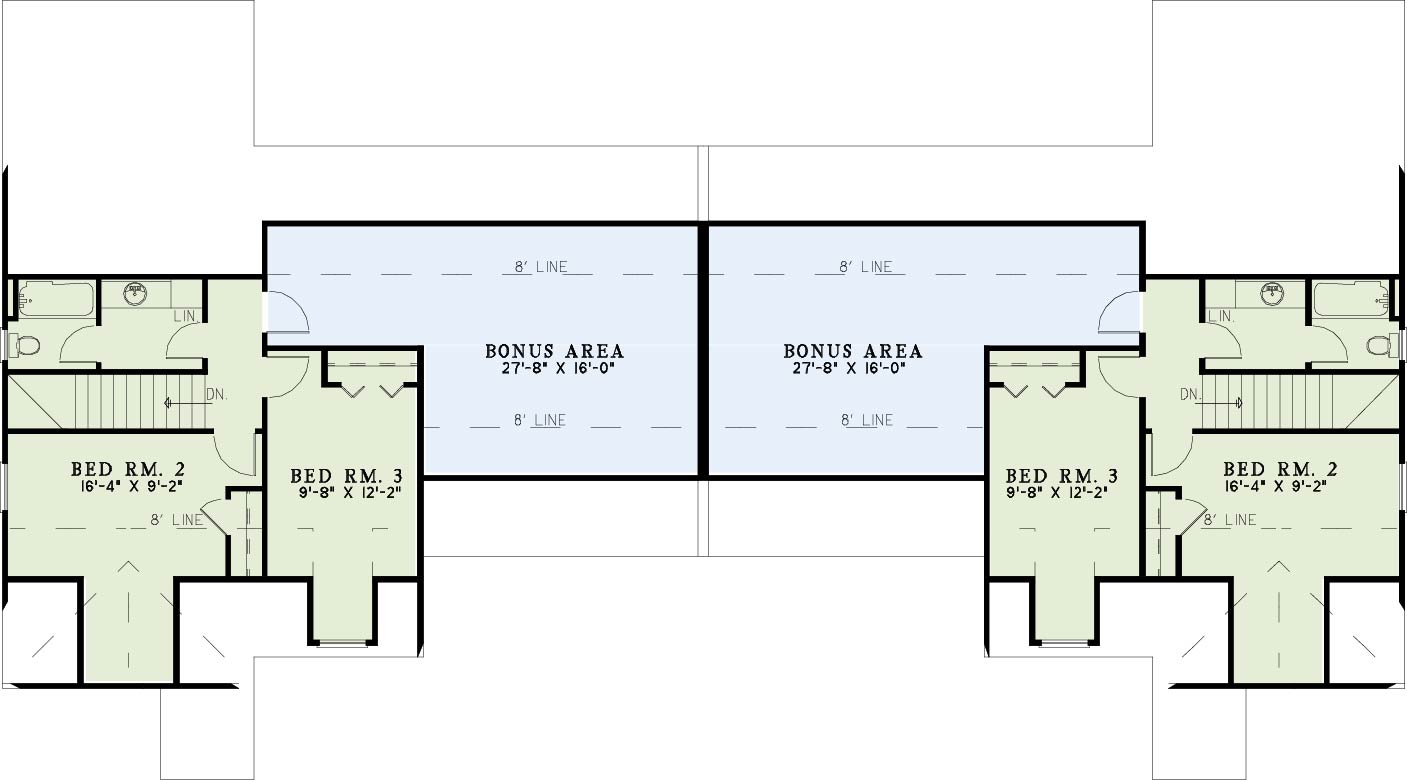

House Plan NDG 407 Upper Floor
House Plan NDG 407 Main Floor
House Plan NDG 407 Upper Floor

Floor plans

NDG 407

House Plan 407 Rosewood, Multi-Family House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 407
  • Total Living Space:1683Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 94
  • Width In.: N/A
  • Depth Ft.: 50
  • Depth In.: N/A

Description

This traditional duplex will enchant you as you enter through the covered porch into the spacious great room with gas fireplace. The nine foot ceilings and eight inch wooden columns create a warm ambiance for you and your guests. Spend hours of quality time with loved ones in the convenient kitchen with bar and access to the rear grilling porch. The upper floor with unique ceilings and two bedrooms with full bath is perfect for a children’s suite. You’ll be able to relax away the day in your private master suite complete with master bath with ‘his and her’ vanities, whirlpool tub with glass blocks, and large walk-in closet.

Specifications

  • Total Living Space:1683Sq.Ft.
  • Main Floor: 1154 Sq.Ft
  • Upper Floor (Sq.Ft.): 529 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 381 Sq.Ft.
  • Porch (Sq.Ft.): 368 Sq.Ft.
  • Garage (Sq.Ft.): 760 Sq.Ft.
  • Total Square Feet: 3192 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
