House Plan 408 Brookshire, Multi-Family House Plan

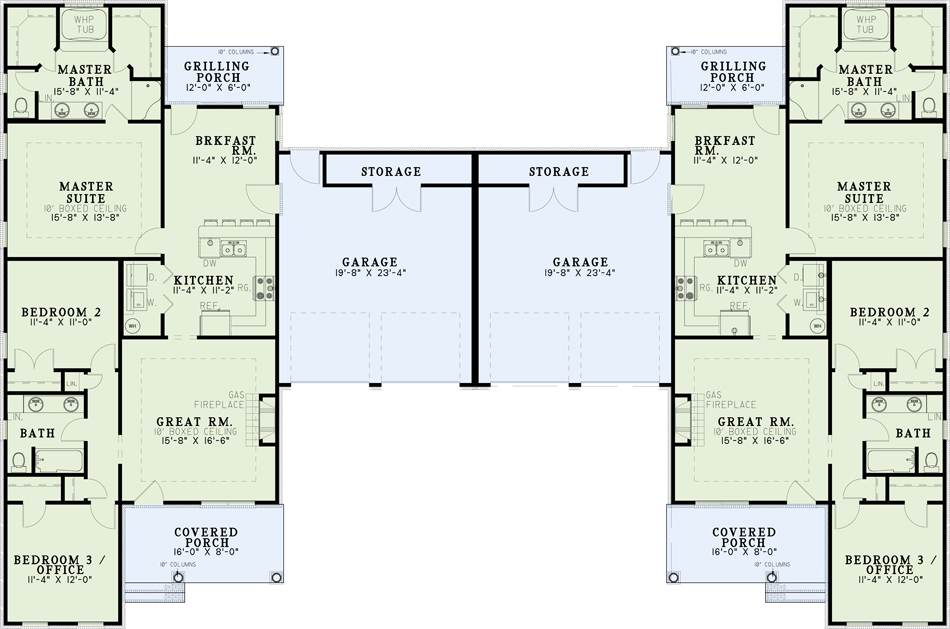

Floor plans

NDG 408

House Plan 408 Brookshire, Multi-Family House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 408
  • Total Living Space:1452Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 96
  • Width In.: N/A
  • Depth Ft.: 63
  • Depth In.: 4


Picture yourself hosting a dinner party surrounded by family in this Traditional Neighborhood home. After greeting guests on the covered porch, guide them into the spacious great room. Here, mingling can begin and maybe drinks around the romantic gas fireplace. Conveniently accessible to the kitchen, you can slip away to check on the excellent cuisine you are preparing. A connecting breakfast room can serve as more space for guests or a quiet place just for you. A door opening to a grilling porch allows you to prepare grilled meats with ease. When all the excitement is over, enjoy the privacy of the master suite or relax in the whirlpool bath.

Floor Plan Specifications:
Heat/Cooled Unit 1: 1452 SQ. FT
Heat/Cooled Unit 2: 1452 SQ. FT
Heat/Cooled Total: 2904 SQ. FT

Garage & Storage Unit 1: 480 SQ. FT
Garage & Storage Unit 2: 480 SQ. FT
Porch Unit 1: 410 SQ. FT
Porch Unit 2: 410 SQ. FT
Garage, Storage, & Porch Total: 1780 SQ. FT
Total: 4684 SQ. FT


  • Total Living Space:1452Sq.Ft.
  • Main Floor: 1452 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 410 Sq.Ft.
  • Garage (Sq.Ft.): 480 Sq.Ft.
  • Total Square Feet: 2342 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
