House Plan 415 Creek Side, Riverbend House Plan

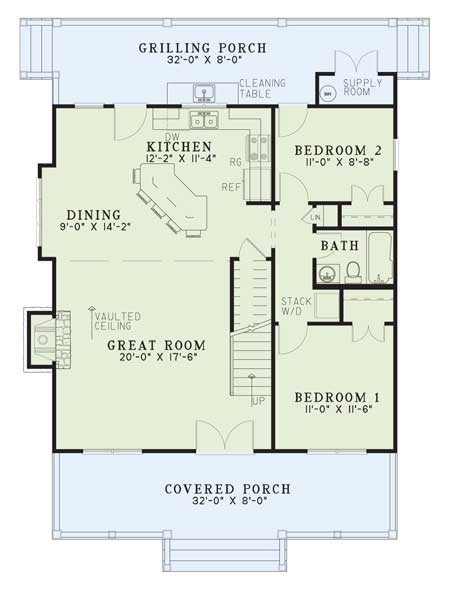

House Plan NDG 415 Main Floor

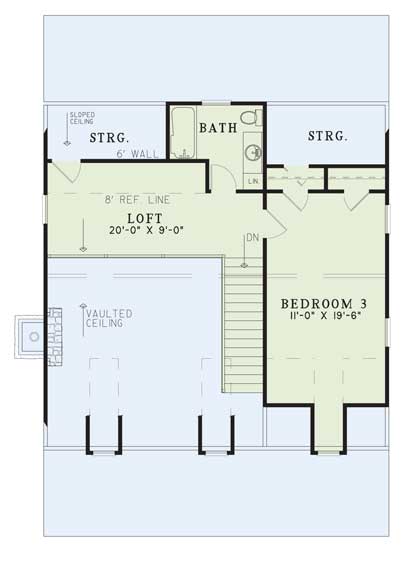

House Plan NDG 415 Upper Floor
House Plan NDG 415 Main Floor
House Plan NDG 415 Upper Floor

Floor plans

NDG 415

House Plan 415 Creek Side, Riverbend House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 415
  • Total Living Space:1544Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 34
  • Width In.: 4
  • Depth Ft.: 48
  • Depth In.: 4

Description

He began thinking where he was as he casts the fly rod upstream. A dream world. Not just any ole’ dream world, but his dream world. Everything was as he had always imagined and hoped for. The cold, crisp waters of River Bend tickled his legs with its voice. Across the river, a trout leaped to an unknown destination. The porch of the cabin beckoned him to come and relax in the cool shade. The sun showered it’s rays onto the water causing him to catch a glimpse of his own reflection. He was always a happy man when he was at his dream getaway called Creek Side.

Specifications

  • Total Living Space:1544Sq.Ft.
  • Main Floor: 1031 Sq.Ft
  • Upper Floor (Sq.Ft.): 513 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 512 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2056 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Metal
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: 5:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
