House Plan 417 Lake Side, Riverbend House Plan

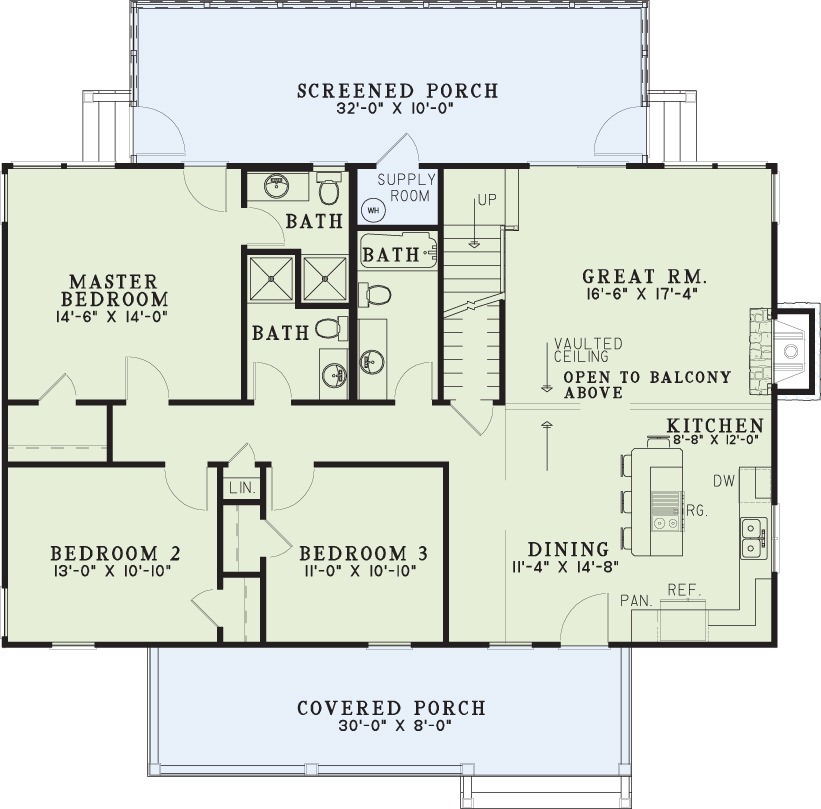

House Plan NDG 417 Main Floor

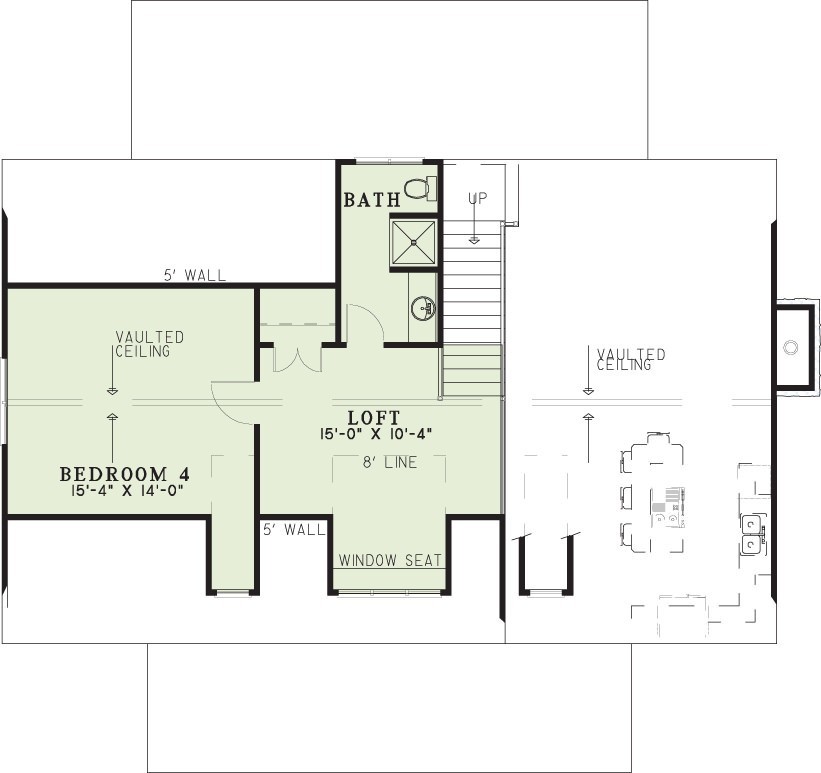

House Plan NDG 417 Upper Floor
>
House Plan NDG 417 Main Floor
House Plan NDG 417 Upper Floor

Floor plans

NDG 417

House Plan 417 Lake Side, Riverbend House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 417
  • Total Living Space:1970Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 50
  • Width In.: 4
  • Depth Ft.: 48
  • Depth In.: N/A

Description

They woke up early that summer morning to watch the sun rise over the mountains. As they sat on the porch drinking coffee, they began talking about the future. This was only the first of many vacations at their new retreat. They began dreaming of the fishing lessons with their children and nighttime storytelling beside the fireplace. This was a place in which to build traditions. Traditions that would last throughout the generations. Traditions that would begin here, at Lake Side.

Specifications

  • Total Living Space:1970Sq.Ft.
  • Main Floor: 1440 Sq.Ft
  • Upper Floor (Sq.Ft.): 530 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 560 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2530 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Metal
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
